Under-sink thermostatic safety mixer 3/8" (12/17) standard

Mitigeurs de proximité collectif et domestique

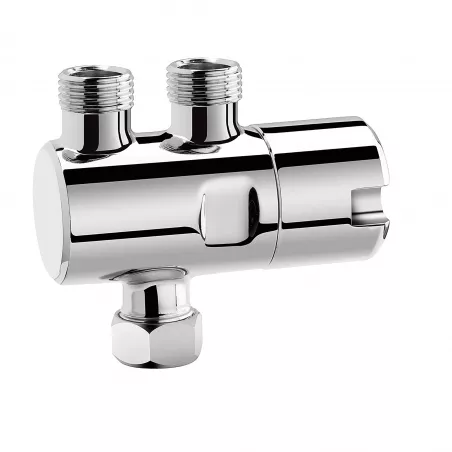

Mitigeurs thermostatiques de sécurité sous lavabo version standard
search
  • Mitigeurs thermostatiques de sécurité sous lavabo version standard
  • Schéma Mitigeurs thermostatiques de sécurité sous lavabo

Photos non contractuelles

Safety thermostatic mixers for under-sink faucets

Function:

Thermostatic mixer for communal installations—tap protection

Anti-scald function:

In the event of a cold water supply failure, the mixed water flow is instantly stopped.

Available in standard version or with built-in bypass for thermal disinfection

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/8" (12/17) standard
Are you an individual?
Are you a professional?

Log in to find out your discount.

-- Tax included

--

Unité de vente : Pièce
MISLAKSTD0FMM10
Diameter (in inches): 3/8" (12/17)
Type: Standard
Quantity
Product available with different options

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Under-sink thermostatic safety mixer

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Max. static pressure: 10 bar / Dynamic pressure: 5 bar
  • Max. temperature 90°C for the EC supply
  • Maximum pressure ratio between EF/EC or EC/EF: 5:1
  • Minimum temperature difference between EC and EM for optimal operation: 10°C

Mixing water adjustment range:

  • 25–50°C
  • Accuracy: +/- 2%
  • Minimum flow rate for proper operation: 4.5 L/min
  • Power: 0.8 kW

Construction:

  • Non-dezincification-resistant brass body, polished & chrome-plated (MT1000)
  • EPDM spring - EP Peroxide
  • ABS cover
  • Integrated filters and check valves
  • NF-certified check valves
  • Device designed in compliance with the health and safety criteria specified in Circulars 2002/243 and 2002/273
  • Complies with the Ministry of Health Decree of December 15, 2005 regarding burn protection

Upon installation, the unit must be calibrated: The mixed water temperature can be adjusted to the desired value by turning the adjustment knob located under the protective cover, secured by two screws.

Model with integrated bypass for thermal disinfection:

Quick and easy operation to switch to "thermal disinfection" without interrupting system operation or closing shut-off valves. The integrated bypass allows for disinfection of the unit and downstream equipment. The protective cover, accessible to the technician, features a "safety lock": the maintenance technician can only replace the cover after repositioning the bypass to the "anti-scald safety" position.

item codeAppearancefeatureEC inletEF inletEM output
MISLAKSTD0FMM10 polished / chrome   3/8" with swivel nut 3/8" M flat shank 3/8" M flat shank
MISLAKBY00FMM10 polished / chrome with thermal disinfection 3/8" with swivel nut 3/8" M flat shank 3/8" M flat shank
MISLAKSTD0FMM15 polished / chrome   1/2" with rotating nut 1/2" M flat face 1/2" M flat face
MISLAKBY00FMM15 polished / chrome with thermal disinfection 1/2" with rotating nut 1/2" M flat face 1/2" M flat face

Caractéristiques techniques Under-sink thermostatic safety mixer

Data sheet

Reference
MISLAKSTD0FMM10
Matière
Laiton chromé
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression maximum
5 bar
Température maximum
90°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830022716

Download documentation

FT MT10

Fiche technique Mitigeurs thermostatiques de sécurité

Download (758.7KB)

Notice de montage MT10

Notice montage Mitigeurs thermostatiques de sécurité

Download (262.35KB)

Caractéristiques liées à la version du produit Under-sink thermostatic safety mixer

Voici la liste des références et poids correspondants aux options séléctionnées.
MISLAKBY00FMM10 - Under-sink thermostatic safety mixer - 3/8" (12/17) - With bypass
Diameter (in inches) 3/8" (12/17)
Type With bypass
Packed weight 0,63735kg
164.94 € tax excl.
Consulter
MISLAKSTD0FMM10 - Under-sink thermostatic safety mixer - 3/8" (12/17) - Standard
Diameter (in inches) 3/8" (12/17)
Type Standard
Packed weight 0,63735kg
166.56 € tax excl.
Consulter
MISLAKSTD0FMM15 - Under-sink thermostatic safety mixer - 1/2" (15/21) - Standard
Diameter (in inches) 1/2" (15/21)
Type Standard
Packed weight 0,7371kg
161.36 € tax excl.
Consulter
MISLAKBY00FMM15 - Under-sink thermostatic safety mixer - 1/2" (15/21) - With bypass
Diameter (in inches) 1/2" (15/21)
Type With bypass
Packed weight 0,7371kg
169.72 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Type Packed weight Prix
MISLAKBY00FMM10 - Under-sink thermostatic safety mixer - 3/8" (12/17) - With bypass 3/8" (12/17) With bypass 0,63735kg --
MISLAKSTD0FMM10 - Under-sink thermostatic safety mixer - 3/8" (12/17) - Standard 3/8" (12/17) Standard 0,63735kg --
MISLAKSTD0FMM15 - Under-sink thermostatic safety mixer - 1/2" (15/21) - Standard 1/2" (15/21) Standard 0,7371kg 161.36 € tax excl.
MISLAKBY00FMM15 - Under-sink thermostatic safety mixer - 1/2" (15/21) - With bypass 1/2" (15/21) With bypass 0,7371kg --
