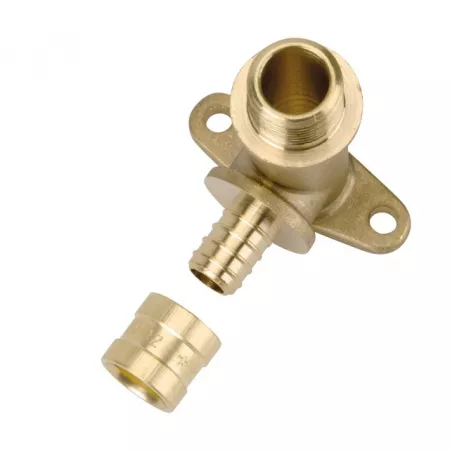

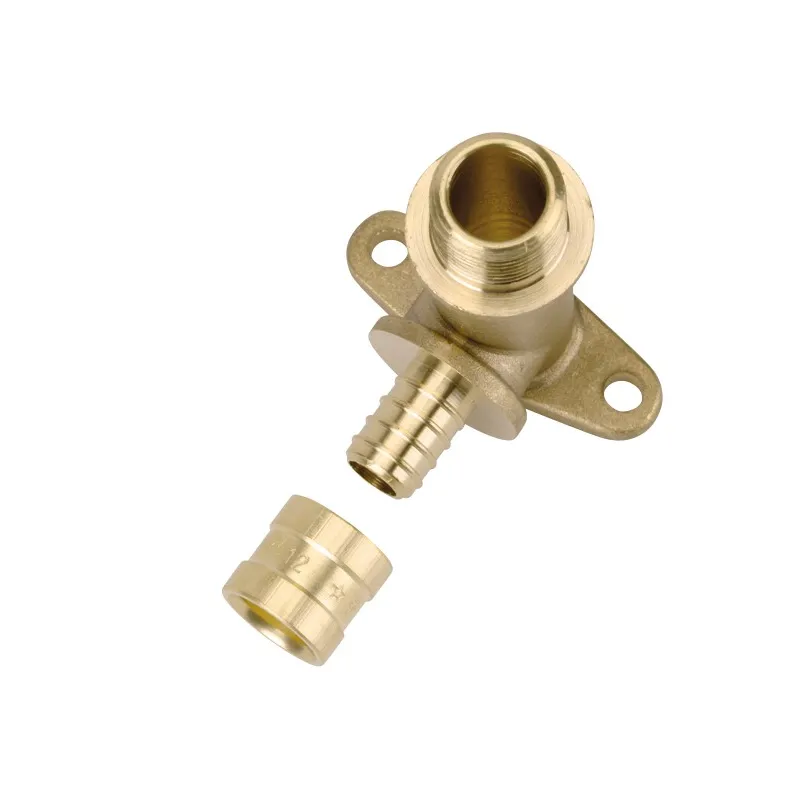

SERTIGLISS brass slip-fit elbow with long male thread for PER/PB tubing

Description:

Brass slip-on metal fittings for PEX or PB synthetic pipes. Dimensions: 12x1.1 - 16x1.5 - 20x1.9 and 25x2.3 (S-series pipes = 5 according to ISO 4065).

Using simple and economical tools, the system enables a quick, reliable, and permanent connection.

Plus de détails
Normes et certifications : Avis technique CSTB 14/14-1949Type de raccordement : Á visser BSP (pas du gaz)1
3/8" - 12
Are you an individual?
Are you a professional?

Log in to find out your discount.

-- Tax included

--

Unité de vente : Pièce
GLIAML000001210
Diàmètre: 3/8" - 12
Quantity
Product available with different options

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Long-reach brass slip-on elbow fitting for male PER/PB tubing

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 6 bar – Domestic hot water supply (and domestic cold water supply at 20 °C / 10 bar),
  • Class 4: 6 bar – Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar – High-temperature radiators,
  • "Chilled water" class: 10 bar.

Technical specifications:

The various components of the fittings are made of turned or die-cast brass, designated CW614 and CW617, respectively.

Standards and certification:

Technical Approval 14/14-1949

Installation:

The assembly principle involves compressing the plastic tube between a fluted insert and a non-symmetrical cylindrical outer ring. Flaring
and crimping operations must only be performed using the specific tools provided by the manufacturer. The PINS manual crimping tool is recommended for assembly.

Warning:

PER/PB pipes expand (or contract) much more than metal pipes. Taking these phenomena into account is essential to ensure the longevity of the installation. Industry
standards (CPT Specification 2808 V2 - November 2011) require:

  1. measuring the impact, particularly on the network manifolds and fittings,
  2. securing all connection points by creating fixed points and ensuring that forces act along the axis of the fittings,
  3. a maximum tightening torque of 30 kN·m must be observed,
  4. to follow installation precautions; the use of tow or similar products is prohibited.

Caractéristiques techniques Long-reach brass slip-on elbow fitting for male PER/PB tubing

Data sheet

Reference
GLIAML000001210
Système
PER/PB
Matière
Laiton
Forme
Applique
Type de raccordement
Sertissage à glissement Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Normes et certifications
Avis technique CSTB 14/14-1949
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610023110

Download documentation

Fiche technqiue FT23-V1

Fiche technqiue Raccord coude à applique long Mâle à glissement laiton FT23-V1

Download (569.06KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Long-reach brass slip-on elbow fitting for male PER/PB tubing

Voici la liste des références et poids correspondants aux options séléctionnées.
GLIAML000001210 - Long-reach brass slip-on elbow fitting for male PER/PB tubing - 3/8" - 12
Diàmètre 3/8" - 12
Packed weight 0,1239kg
3.19 € tax excl.
Consulter
GLIAML000001610 - Long-reach brass slip-on elbow fitting for male PER/PB tubing - 3/8" - 16
Diàmètre 3/8" - 16
Packed weight 0,12075kg
3.15 € tax excl.
Consulter
Référence - Désignation Diàmètre Packed weight Prix
GLIAML000001210 - Long-reach brass slip-on elbow fitting for male PER/PB tubing - 3/8" - 12 3/8" - 12 0,1239kg --
