Equal-angle brass slip-on tee fitting for PER/PB tubing 12 - 12 - 12

Raccords à glissement pour tube PER et PB

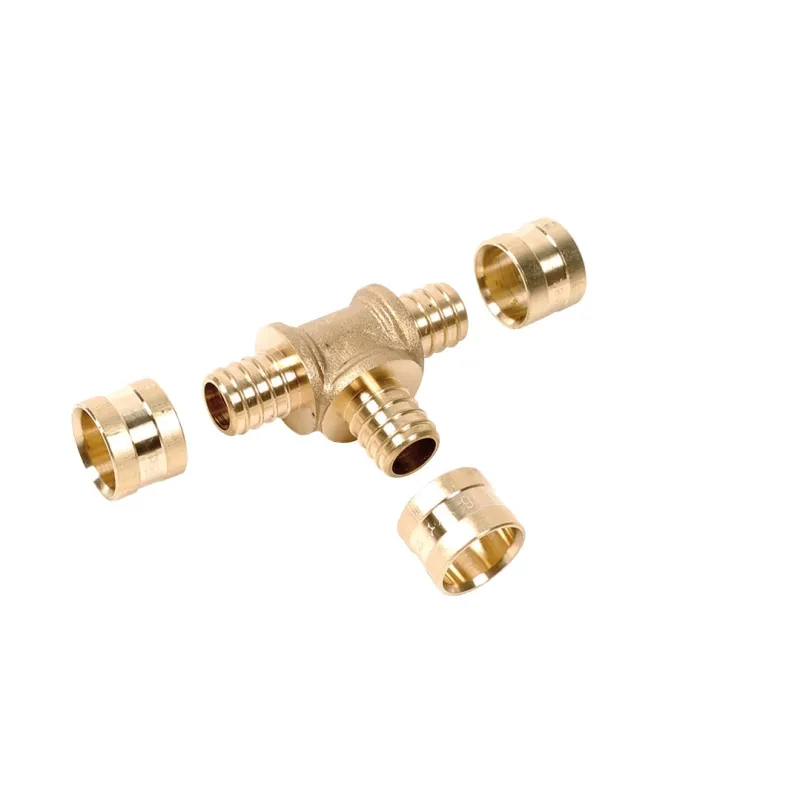

Raccord Té égal à glissement laiton
search
  • Raccord Té égal à glissement laiton

Photo non contractuelle

Sliding brass T-fitting for PER/PB tubing / SERTIGLISS

Description:

Brass slip-on metal fittings for synthetic PEX or PB pipes. Dimensions: 12x1.1 - 16x1.5 - 20x1.9 and 25x2.3 (S-series pipes = 5 according to ISO 4065).

Using simple and economical tools, the system enables a quick, reliable, and permanent connection.

Plus de détails
Normes et certifications : Avis technique CSTB 14/14-1949Fluide admissible : Eau sanitaire et potable1
12 - 12 - 12
Are you an individual?
Are you a professional?

Log in to find out your discount.

€3.05 Tax included

2.54 € tax excl.

Unité de vente : Pièce
GLITEL000000012
Diàmètre: 12 - 12 - 12
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Equal-angle brass slip-on tee fitting for PER/PB tubing

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 6 bar – Domestic hot water supply (and domestic cold water supply at 20 °C / 10 bar),
  • Class 4: 6 bar – Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar – High-temperature radiators,
  • "Chilled water" class: 10 bar.

Technical specifications:

The various components of the fittings are made of turned or die-cast brass, designated CW614 and CW617, respectively.

Standards and certification:

Technical Approval 14/14-1949

Installation:

The assembly principle involves compressing the plastic tube between a fluted insert and a non-symmetrical cylindrical outer ring. Flaring
and crimping operations must only be performed using the specific tools provided by the manufacturer. The PINS manual crimping tool is recommended for assembly.

Warning:

PER/PB pipes expand (or contract) much more than metal pipes. Taking these phenomena into account is essential to ensure the longevity of the installation. Industry
standards (CPT Specification 2808 V2 - November 2011) require:

  1. measuring the impact, particularly on the network manifolds and fittings,
  2. securing all connection points by creating fixed points and ensuring that forces act along the axis of the fittings,
  3. a maximum tightening torque of 30 kN·m must be observed,
  4. to follow installation precautions; the use of tow or similar products is prohibited.

Caractéristiques techniques Equal-angle brass slip-on tee fitting for PER/PB tubing

Data sheet

Reference
GLITEL000000012
Système
PER/PB
Matière
Laiton
Forme
Té
Type de raccordement
Sertissage à glissement
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis technique CSTB 14/14-1949
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610018062

Download documentation

FT 12

Fiche technique Raccord Té égal à glissement laiton FT12-V1

Download (580.92KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Equal-angle brass slip-on tee fitting for PER/PB tubing

Voici la liste des références et poids correspondants aux options séléctionnées.
