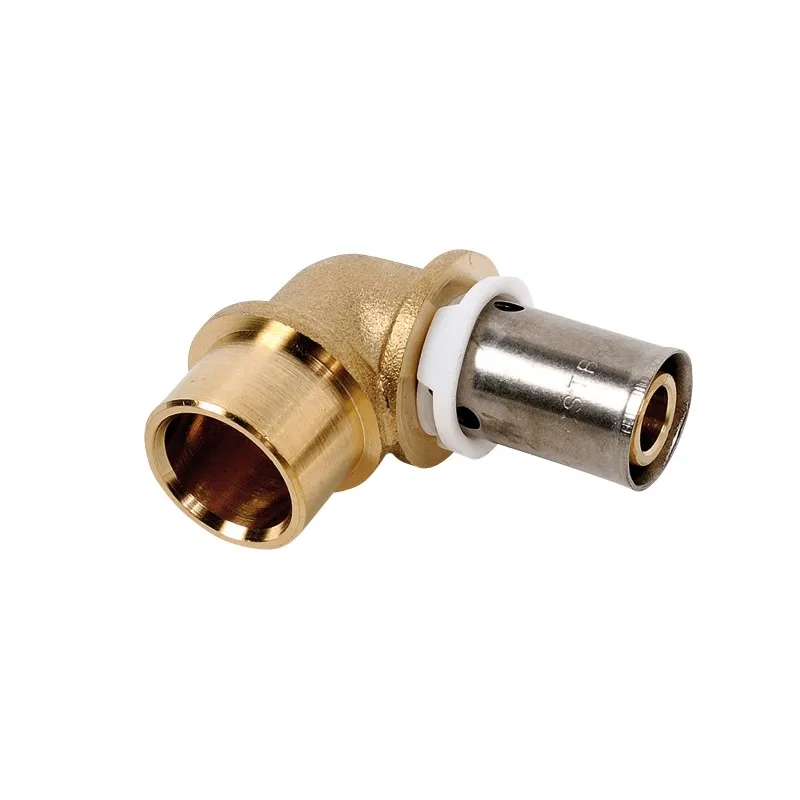

Sertipress Copper Tube Adapter Elbow

Description:

Radial-type brass press fittings for synthetic pipes made of PER or PB. Dimensions: 12x1.1 – 16x1.5 – 20x1.9 and 25x2.3 (S=5 series pipes according to ISO 4065)

Standards and certifications:

Technical Approval 14/15-2135

Remove the stainless steel ring and its plastic ring before soldering the fitting onto a copper pipe.

Plus de détails
Normes et certifications : Avis Technique 14/15-2135Fluide admissible : Eau sanitaire et potable1
16 x 20 - 16
Are you an individual?
Are you a professional?

Log in to find out your discount.

€2.46 Tax included

2.05 € tax excl.

Unité de vente : Pièce
RSRCCL000002016
Diàmètre: 16 x 20 - 16
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 6 bar - Domestic hot water supply (and domestic cold water supply at 20 °C / 10 bar)
  • Class 4: 6 bar - Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar - High-temperature radiators,
  • "Chilled water" class: 10 bar.

Technical specifications:

  • The various components of the fittings are made of turned or die-forged brass, designated CW614 and CW617, respectively.
  • The crimp sleeve is made of stainless steel.

Installation:

The assembly process involves compressing the plastic tube between a fluted insert and a stainless steel ring through mechanical deformation using a crimping tool and a set of jaws. Flaring
and crimping operations must only be performed using specific tools. The electro-hydraulic crimping tools, model PINPFL000000000 or PINK20000000000, and their accessories are recommended for performing the assembly.

With professional tools (mains-powered or battery-powered), this type of fitting allows for very quick installation without any physical effort on the part of the installer.

Caractéristiques techniques Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB

Data sheet

Reference
RSRCCL000002016
Système
PER/PB
Matière
Inox Laiton
Forme
Adaptateur cuivre Coude 90°
Rayon
Petit rayon
Type de raccordement
Sertissage radial Á souder
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis Technique 14/15-2135
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610024179

Download documentation

FT39

Fiche technique Raccords coude adaptateur pour tube cuivre à sertir type radial pour PER ou PB FT39-V2

Download (429.96KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB

Voici la liste des références et poids correspondants aux options séléctionnées.
RSRCCL000001212 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 10 x 12 - 12
Diàmètre 10 x 12 - 12
Packed weight 0,0609kg
2.63 € tax excl.
Consulter
RSRCCL000001214 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 10 x 12 - 14
Diàmètre 10 x 12 - 14
Packed weight 0,05775kg
2.41 € tax excl.
Consulter
RSRCCL000001614 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 13 x 16 - 14
Diàmètre 13 x 16 - 14
Packed weight 0,05775kg
2.47 € tax excl.
Consulter
RSRCCL000001616 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 13 x 16 - 16
Diàmètre 13 x 16 - 16
Packed weight 0,05565kg
2.08 € tax excl.
Consulter
RSRCCL000002016 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 16 x 20 - 16
Diàmètre 16 x 20 - 16
Packed weight 0,063kg
2.05 € tax excl.
Consulter
Référence - Désignation Diàmètre Packed weight Prix
RSRCCL000001212 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 10 x 12 - 12 10 x 12 - 12 0,0609kg 2.63 € tax excl.
RSRCCL000001214 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 10 x 12 - 14 10 x 12 - 14 0,05775kg 2.41 € tax excl.
RSRCCL000001614 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 13 x 16 - 14 13 x 16 - 14 0,05775kg 2.47 € tax excl.
RSRCCL000001616 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 13 x 16 - 16 13 x 16 - 16 0,05565kg 2.08 € tax excl.
RSRCCL000002016 - Radial-type crimp elbow adapter fitting for copper tubing, compatible with PER or PB - 16 x 20 - 16 16 x 20 - 16 0,063kg 2.05 € tax excl.
