PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing ø 20 - 26 - 20

Name: PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing ø 20 - 26 - 20
Brand: FRÄNKISCHE
SKU: MCRTPP000202620
Price: 13.76 EUR
Availability: InStock

Raccords à sertir type radial

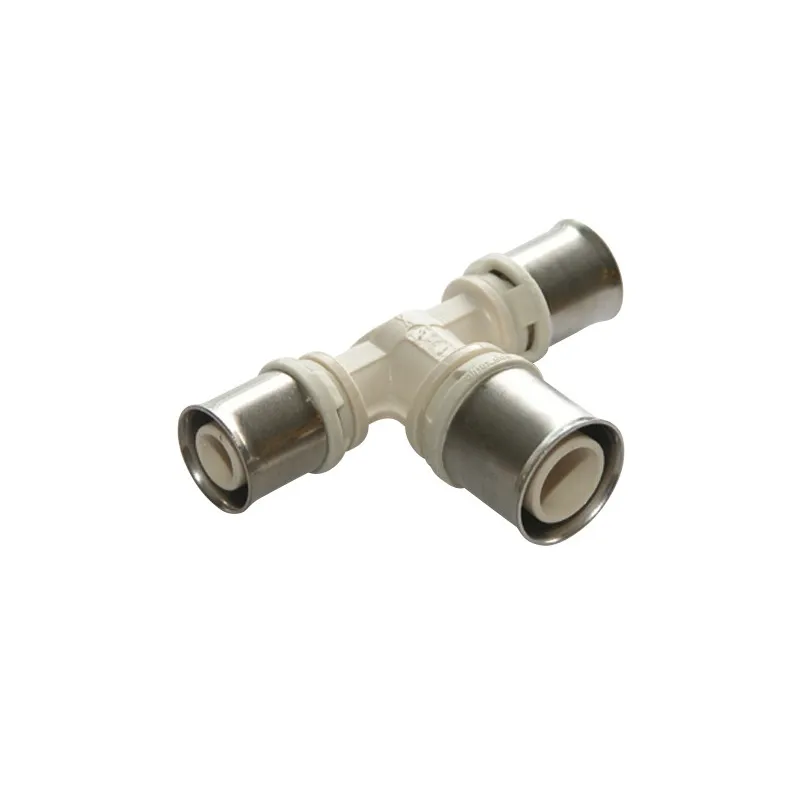

Raccord Té réduit en PPSU à sertir type radial

Photo non contractuelle

PPSU reduced T-fitting for radial crimping, for Alpex-Duo XS and Alpex-Duo multilayer systems

PPSU body

Available for the following pipe sizes:

16 x 2.0
20 x 2.0
26 x 3.0
32 x 3.0
40 x 3.5
50 x 4.0

Standards, certification:

Technical Approval 14/13-1852
Technical Approval 14/13-1880

Plus de détails

Normes et certifications : Avis technique CSTB 14/13-1852

Normes et certifications : Avis technique CSTB 14/13-1880

ø 20 - 26 - 20

Are you an individual?

Are you a professional?

€13.76 Tax included

11.47 € tax excl.

Unité de vente : Pièce

Reference : MCRTPP000202620

Diamètre: Ø 20 - 26 - 20

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

Class 2: 10 bar – Domestic hot water supply (and domestic cold water supply at 20°C / 10 bar)
Class 4: 10 bar – Low-temperature radiators, underfloor heating
Class 5: 6 bar – High-temperature radiators
"Chilled water" class: 10 bar

Technical specifications:

Plastic body = PPSU
Sleeve = X5CrNi18-10 stainless steel
O-ring = EPDM
Minimum crimping force = 32 kN

"ALPEX DUO" system with a 10-year warranty on pipes and fittings

Type F crimping
die Compatible with TH and B dies from Ø16 to Ø32 only

Installation:

The fitting consists of:

a body consisting of an insert with an EPDM O-ring designed to receive the pipe and an end for connecting to the system or to another pipe,
a ring for securing the crimp sleeve to the body, ensuring the tube is properly seated
a crimp sleeve that compresses the tube onto the insert through mechanical deformation

Pipe assembly must be performed using the tools recommended by the manufacturer and in the following order:

Cut the tube with a tube cutter
Deburr and calibrate the tube
Insert the tube into the fitting until it stops
Place the assembly to be crimped into the tool head and close the head
Engage the clamping mechanism, and press the button to release the crimped assembly

Caractéristiques techniques PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing

Data sheet

Reference: MCRTPP000202620
Système: ALPEX DUO Multicouches
Matière: Inox PPSU
Joint: EPDM Torique
Forme: Té réduit
Type de raccordement: Sertissage radial
Diamètre: En fonction du modèle choisi
Fluide admissible: Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications: Avis technique CSTB 14/13-1852 Avis technique CSTB 14/13-1880
Unité de vente: Pièce
Garantie fabricant: Système ALPEX DUO garantie 10 ans Tubes + Raccords + Empreintes

Specific References

ean13: 4013960175370

Accessoires et équipements (vendus séparément)

Sertisseuse électro-hydraulique universelle

Quick view

Caractéristiques liées à la version du produit PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing

Voici la liste des références et poids correspondants aux options séléctionnées.

MCRTPP000162016 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 16 - 20 - 16

Diamètre	Ø 16 - 20 - 16
Packed weight	0,0399kg

8.19 € tax excl.

Référence - Désignation	Diamètre	Packed weight	Prix
MCRTPP000162016 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 16 - 20 - 16	Ø 16 - 20 - 16	0,0399kg	8.19 € tax excl.
MCRTPP000201620 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 20 - 16 - 20	Ø 20 - 16 - 20	0,0504kg	8.61 € tax excl.
MCRTPP000201616 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 20 - 16 - 16	Ø 20 - 16 - 16	0,0378kg	8.39 € tax excl.
MCRTPP000202016 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 20 - 20 - 16	Ø 20 - 20 - 16	0,0441kg	8.74 € tax excl.
MCRTPP000202620 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 20 - 26 - 20	Ø 20 - 26 - 20	0,063kg	11.47 € tax excl.
MCRTPP000261620 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 26 - 16 - 20	Ø 26 - 16 - 20	0,05565kg	11.47 € tax excl.
MCRTPP000261626 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 26 - 16 - 26	Ø 26 - 16 - 26	0,0672kg	11.77 € tax excl.
MCRTPP000262020 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 26 - 20 - 20	Ø 26 - 20 - 20	0,063kg	11.64 € tax excl.
MCRTPP000262026 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 26 - 20 - 26	Ø 26 - 20 - 26	0,07035kg	11.9 € tax excl.
MCRTPP000262620 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 26 - 26 - 20	Ø 26 - 26 - 20	0,0714kg	11.9 € tax excl.
MCRTPP000321632 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 32 - 16 - 32	Ø 32 - 16 - 32	0,09345kg	15.76 € tax excl.
MCRTPP000322032 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 32 - 20 - 32	Ø 32 - 20 - 32	0,1008kg	15.89 € tax excl.
MCRTPP000322626 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 32 - 26 - 26	Ø 32 - 26 - 26	0,1008kg	16.25 € tax excl.
MCRTPP000322632 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 32 - 26 - 32	Ø 32 - 26 - 32	0,11235kg	17.81 € tax excl.
MCRTPP000504050 - PPSU Reducing Tee Fitting, Radial-Type Press Fitting for Multilayer Tubing - Ø 50 - 40 - 50	Ø 50 - 40 - 50	0,273kg	52.81 € tax excl.
