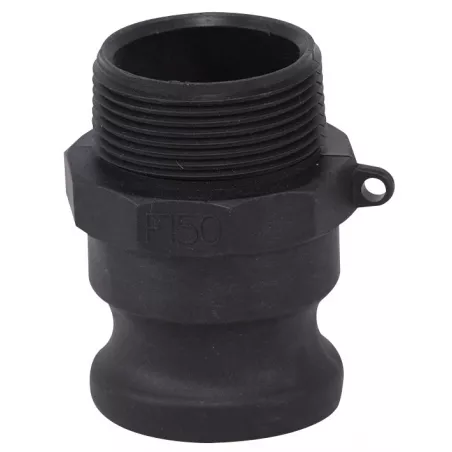

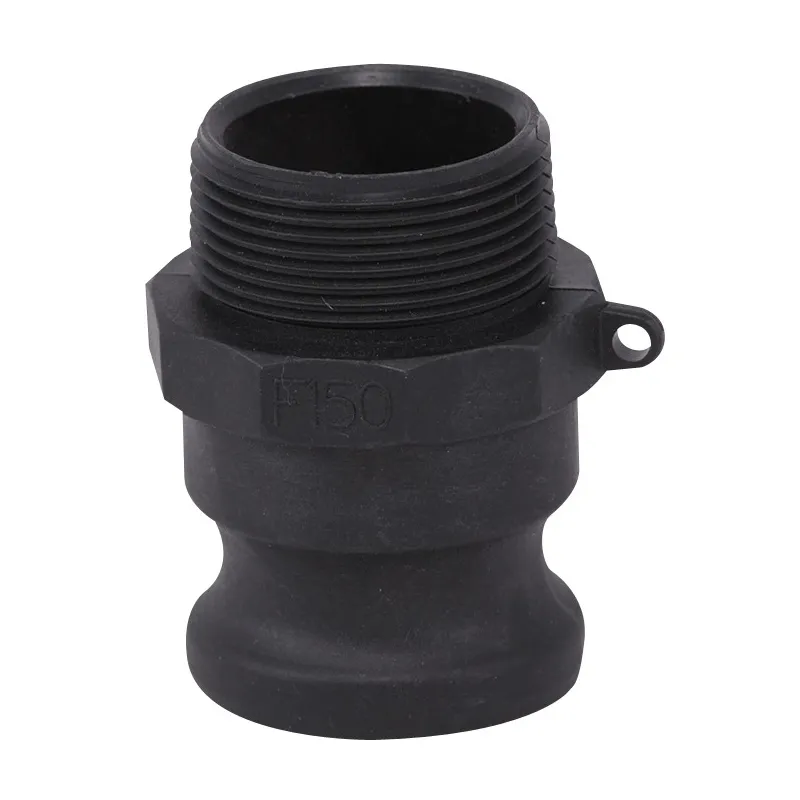

Polypropylene cam-type connector, male F adapter 1/2" (15/21)

Raccords à cames polypropylène
Raccord à cames polypropylène adaptateur mâle F
search
  • Raccord à cames polypropylène adaptateur mâle F
  • Adaptateur mâle type F Ref.2216
  • NOMENCLATURE 2211-2218

Photos non contractuelles

Polypropylene cam-type fitting, male adapter, Type F to BSP

Application:

  • Compatible common fluids
  • Minimum and maximum permissible temperature Ts: +0°C to +30°C
  • Maximum allowable pressure Ps: 6 bar

Available in: DN 1/2" to DN 4"

CAUTION: 1/2" is not compatible with stainless steel and aluminum fittings (See technical data sheet)

Option: Upon request: seals available only on EPDM, Nitrile, FKM, or PTFE couplers.

Plus de détails
Normes et certifications : ISO 9001 ACM-UKASType de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1.56 Tax included

1.3 € tax excl.

Unité de vente : Pièce
22160P0000BM015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Polypropylene cam-type connector, male F adapter

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Fittings made of polypropylene reinforced with 30% glass
  • White EPDM gasket (on couplers only)
  • Compliant with MIL-C-27487 and A-A 59326
  • BSP male or female thread

Construction:

  • Body: 30% glass-filled polypropylene
  • EPDM seal
  • 304 stainless steel cams
  • Sizes: DN 1/2" to DN 4"
  • Connection: F male
  • Material: Polypropylene reinforced with 30% glass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Manufactured in accordance with MIL-C-27487 and A-A 59326
  • Female and male cylindrical BSP threads in accordance with ISO 228-1

Caractéristiques techniques Polypropylene cam-type connector, male F adapter

Data sheet

Reference
22160P0000BM015
Matière
Polypropylène
Joint
EPDM
Forme
Adaptateur mâle
Entraxe
En fonction du modèle choisi
Type de raccordement
À cames Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression de service
6B
Température minimum
0°C
Température maximum
30°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ISO 9001 ACM-UKAS
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2) Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781185575

Download documentation

FT 2211-2218

Fiche technique Raccord à cames polypropylène 2210

Download (671.04KB)

Caractéristiques liées à la version du produit Polypropylene cam-type connector, male F adapter

Voici la liste des références et poids correspondants aux options séléctionnées.
22160P0000BM015 - Polypropylene cam-type connector, male F adapter - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,0231kg
1.3 € tax excl.
Consulter
22160P0000BM020 - Polypropylene cam-type connector, male F adapter - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,02625kg
1.4 € tax excl.
Consulter
22160P0000BM025 - Polypropylene cam-type connector, male F adapter - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,04305kg
1.69 € tax excl.
Consulter
22160P0000BM032 - Polypropylene cam-type connector, male F adapter - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,0672kg
2.67 € tax excl.
Consulter
22160P0000BM040 - Polypropylene cam-type connector, male F adapter - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,08925kg
2.73 € tax excl.
Consulter
22160P0000BM050 - Polypropylene cam-type connector, male F adapter - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 0,1365kg
4.45 € tax excl.
Consulter
22160P0000BM080 - Polypropylene cam-type connector, male F adapter - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 0,30765kg
6.76 € tax excl.
Consulter
22160P0000BM100 - Polypropylene cam-type connector, male F adapter - 4" (102/114)
Diameter (in inches) 4" (102/114)
Packed weight 0,5334kg
21.42 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
22160P0000BM015 - Polypropylene cam-type connector, male F adapter - 1/2" (15/21) 1/2" (15/21) 0,0231kg 1.3 € tax excl.
22160P0000BM020 - Polypropylene cam-type connector, male F adapter - 3/4" (20/27) 3/4" (20/27) 0,02625kg 1.4 € tax excl.
22160P0000BM025 - Polypropylene cam-type connector, male F adapter - 1" (26/34) 1" (26/34) 0,04305kg 1.69 € tax excl.
22160P0000BM032 - Polypropylene cam-type connector, male F adapter - 1"1/4 (33/42) 1"1/4 (33/42) 0,0672kg 2.67 € tax excl.
22160P0000BM040 - Polypropylene cam-type connector, male F adapter - 1"1/2 (40/49) 1"1/2 (40/49) 0,08925kg 2.73 € tax excl.
22160P0000BM050 - Polypropylene cam-type connector, male F adapter - 2" (50/60) 2" (50/60) 0,1365kg 4.45 € tax excl.
22160P0000BM080 - Polypropylene cam-type connector, male F adapter - 3" (80/90) 3" (80/90) 0,30765kg 6.76 € tax excl.
22160P0000BM100 - Polypropylene cam-type connector, male F adapter - 4" (102/114) 4" (102/114) 0,5334kg 21.42 € tax excl.
