316L stainless steel welding tee SCH40S seamless ANSI dn15 ~ 1/2'' ~ ø21.30

Raccords inox 316L à souder SCH40S
316L stainless steel welding tee SCH40S seamless ANSI
search
  • 316L stainless steel welding tee SCH40S seamless ANSI

Photo non contractuelle

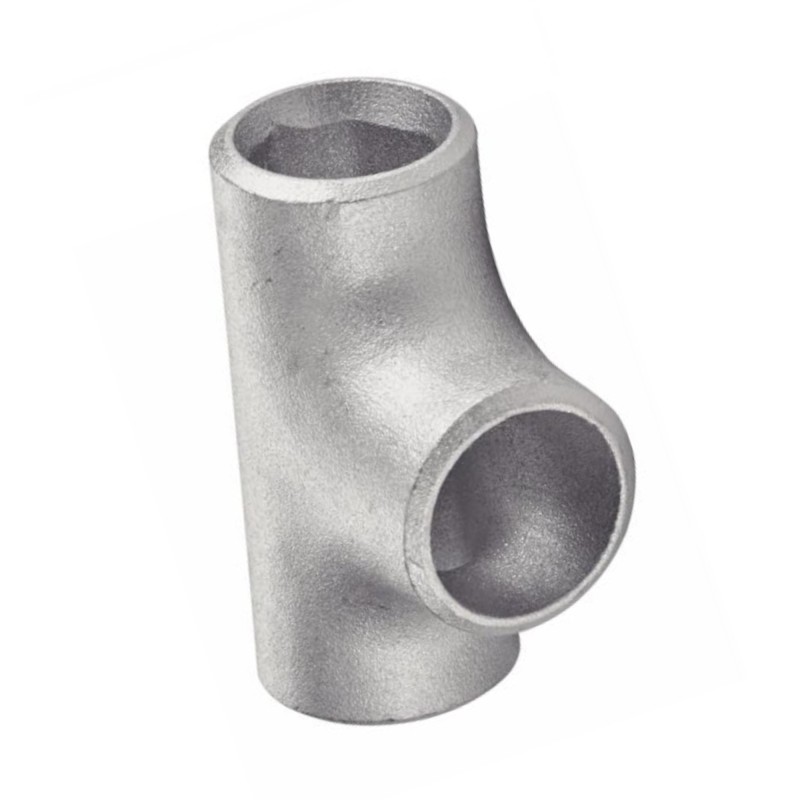

316L SCH40S seamless stainless steel welding tee 1.4404 ANSI

Description:

The SCH40S seamless 316L (1.4404) stainless steel weld tee is a "T"-shaped fitting for connecting three pipe sections, facilitating the branching or distribution of fluids in a piping system. Its seamless design ensures increased resistance to pressure and corrosion, suitable for demanding industrial environments.

Application:

This type of tee is commonly used in the chemical, petrochemical, pharmaceutical and food industries, where corrosion resistance and hygiene are paramount. It enables the efficient distribution of fluids by connecting three pipes, and is designed to be welded directly onto the pipes, guaranteeing a tight, durable connection.

Available diameters: DN 15 to DN 300

Complete range available on request

Plus de détails
dn15 ~ 1/2'' ~ ø21.30
TEASS6300000015
Diameter (in inches): DN15 ~ 1/2'' ~ Ø21.30
PRODUCT AVAILABLE EXCLUSIVELY ON QUOTATION
mode_edit Request a quote
Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour 316L stainless steel welding tee SCH40S seamless ANSI

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information 316L stainless steel welding tee SCH40S seamless ANSI

Construction:

  • Material: 316L (1.4404) stainless steel, renowned for its high corrosion resistance and durability.
  • Fabrication: Seamless (drawn), ensuring superior structural integrity and eliminating potential weak points.
  • Wall thickness: Conforms to Schedule 10S (SCH10S), offering an optimum balance between mechanical strength and light weight.

Technical specifications:

  • Available diameters: From DN15 (1/2") to DN300 (12"), with outside diameters ranging from 21.3 mm to 323.9 mm.
  • Standards: Compliant with ASME/ANSI B16.9 and ASTM A403 standards, guaranteeing precise dimensions and uniform quality.
  • Possibility of 3.1 certificate: Yes, attesting to material compliance with required specifications.

Pressure and temperature :

SCH40S 316L stainless steel tees are suitable for low- and medium-pressure applications. Pressure rating depends on pipe diameter and thickness, in accordance with ASME B31.3. Regarding temperature, 316L stainless steel can generally withstand temperatures up to 600°C, but it is advisable to consult the precise specifications for each application.

Standardization :

This product is manufactured in accordance with ASME/ANSI B16.9 and ASTM A403, which define dimensions, tolerances and performance requirements for stainless steel weld fittings. The 316L (1.4404) material complies with ASTM A403/A403M specifications for forged stainless steel fittings.

Caractéristiques techniques 316L stainless steel welding tee SCH40S seamless ANSI

Data sheet

Reference
TEASS6300000015
Matière
Inox 316L
Fabrication
Sans soudure
Forme
Té
Type de raccordement
Á souder
Diamètre
En fonction du modèle choisi
Épaisseur
SCH40S
Normes et certifications
ANSI B16.9
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce

Caractéristiques liées à la version du produit 316L stainless steel welding tee SCH40S seamless ANSI

Voici la liste des références et poids correspondants aux options séléctionnées.
TEASS6300000015 - 316L stainless steel welding tee SCH40S seamless ANSI - DN15 ~ 1/2'' ~ Ø21.30
Diameter (in inches) DN15 ~ 1/2'' ~ Ø21.30
Packed weight 0,17kg
Consulter
TEASS6300000020 - 316L stainless steel welding tee SCH40S seamless ANSI - DN20 ~ 3/4'' ~ Ø26.70
Diameter (in inches) DN20 ~ 3/4'' ~ Ø26.70
Packed weight 0,22kg
Consulter
TEASS6300000025 - 316L stainless steel welding tee SCH40S seamless ANSI - DN25 ~ 1'' ~ Ø33.40
Diameter (in inches) DN25 ~ 1'' ~ Ø33.40
Packed weight 0,35kg
Consulter
TEASS6300000032 - 316L stainless steel welding tee SCH40S seamless ANSI - DN32 ~ 1''1/4 ~ Ø42.20
Diameter (in inches) DN32 ~ 1''1/4 ~ Ø42.20
Packed weight 0,6kg
Consulter
TEASS6300000040 - 316L stainless steel welding tee SCH40S seamless ANSI - DN40 ~ 1''1/2 ~ Ø48.30
Diameter (in inches) DN40 ~ 1''1/2 ~ Ø48.30
Packed weight 0,95kg
Consulter
TEASS6300000050 - 316L stainless steel welding tee SCH40S seamless ANSI - DN50 ~ 2'' ~ Ø60.30
Diameter (in inches) DN50 ~ 2'' ~ Ø60.30
Packed weight 1,6kg
Consulter
TEASS6300000065 - 316L stainless steel welding tee SCH40S seamless ANSI - DN65 ~ 2''1/2 ~ Ø73
Diameter (in inches) DN65 ~ 2''1/2 ~ Ø73
Packed weight 3,1kg
Consulter
TEASS6300000080 - 316L stainless steel welding tee SCH40S seamless ANSI - DN80 ~ 3'' ~ Ø88.90
Diameter (in inches) DN80 ~ 3'' ~ Ø88.90
Packed weight 3,3kg
Consulter
TEASS6300000100 - 316L stainless steel welding tee SCH40S seamless ANSI - DN100 ~ 4'' ~ Ø114.30
Diameter (in inches) DN100 ~ 4'' ~ Ø114.30
Packed weight 5,2kg
Consulter
TEASS6300000125 - 316L stainless steel welding tee SCH40S seamless ANSI - DN125 ~ 5'' ~ Ø141,30
Diameter (in inches) DN125 ~ 5'' ~ Ø141,30
Packed weight 11,4kg
Consulter
TEASS6300000150 - 316L stainless steel welding tee SCH40S seamless ANSI - DN150 ~ 6'' ~ Ø168.30
Diameter (in inches) DN150 ~ 6'' ~ Ø168.30
Packed weight 22kg
Consulter
TEASS6300000200 - 316L stainless steel welding tee SCH40S seamless ANSI - DN200 ~ 8'' ~ Ø219.10
Diameter (in inches) DN200 ~ 8'' ~ Ø219.10
Packed weight 30kg
Consulter
TEASS6300000250 - 316L stainless steel welding tee SCH40S seamless ANSI - DN250 ~ 10'' ~ Ø273.10
Diameter (in inches) DN250 ~ 10'' ~ Ø273.10
Packed weight 42kg
Consulter
TEASS6300000300 - 316L stainless steel welding tee SCH40S seamless ANSI - DN300 ~ 12'' ~ Ø323.90
Diameter (in inches) DN300 ~ 12'' ~ Ø323.90
Packed weight 54kg
Consulter
Référence - Désignation Diameter (in inches) Packed weight
TEASS6300000015 - 316L stainless steel welding tee SCH40S seamless ANSI - DN15 ~ 1/2'' ~ Ø21.30 DN15 ~ 1/2'' ~ Ø21.30 0,17kg
TEASS6300000020 - 316L stainless steel welding tee SCH40S seamless ANSI - DN20 ~ 3/4'' ~ Ø26.70 DN20 ~ 3/4'' ~ Ø26.70 0,22kg
TEASS6300000025 - 316L stainless steel welding tee SCH40S seamless ANSI - DN25 ~ 1'' ~ Ø33.40 DN25 ~ 1'' ~ Ø33.40 0,35kg
TEASS6300000032 - 316L stainless steel welding tee SCH40S seamless ANSI - DN32 ~ 1''1/4 ~ Ø42.20 DN32 ~ 1''1/4 ~ Ø42.20 0,6kg
TEASS6300000040 - 316L stainless steel welding tee SCH40S seamless ANSI - DN40 ~ 1''1/2 ~ Ø48.30 DN40 ~ 1''1/2 ~ Ø48.30 0,95kg
TEASS6300000050 - 316L stainless steel welding tee SCH40S seamless ANSI - DN50 ~ 2'' ~ Ø60.30 DN50 ~ 2'' ~ Ø60.30 1,6kg
TEASS6300000065 - 316L stainless steel welding tee SCH40S seamless ANSI - DN65 ~ 2''1/2 ~ Ø73 DN65 ~ 2''1/2 ~ Ø73 3,1kg
TEASS6300000080 - 316L stainless steel welding tee SCH40S seamless ANSI - DN80 ~ 3'' ~ Ø88.90 DN80 ~ 3'' ~ Ø88.90 3,3kg
TEASS6300000100 - 316L stainless steel welding tee SCH40S seamless ANSI - DN100 ~ 4'' ~ Ø114.30 DN100 ~ 4'' ~ Ø114.30 5,2kg
TEASS6300000125 - 316L stainless steel welding tee SCH40S seamless ANSI - DN125 ~ 5'' ~ Ø141,30 DN125 ~ 5'' ~ Ø141,30 11,4kg
TEASS6300000150 - 316L stainless steel welding tee SCH40S seamless ANSI - DN150 ~ 6'' ~ Ø168.30 DN150 ~ 6'' ~ Ø168.30 22kg
TEASS6300000200 - 316L stainless steel welding tee SCH40S seamless ANSI - DN200 ~ 8'' ~ Ø219.10 DN200 ~ 8'' ~ Ø219.10 30kg
TEASS6300000250 - 316L stainless steel welding tee SCH40S seamless ANSI - DN250 ~ 10'' ~ Ø273.10 DN250 ~ 10'' ~ Ø273.10 42kg
TEASS6300000300 - 316L stainless steel welding tee SCH40S seamless ANSI - DN300 ~ 12'' ~ Ø323.90 DN300 ~ 12'' ~ Ø323.90 54kg
