Tee 3000 Series A105N NPT Female dn15 ~ 1/2'' ~ ø21.30

Raccords S3000 acier NPT
Té Série 3000 A105N NPT Femelle
search

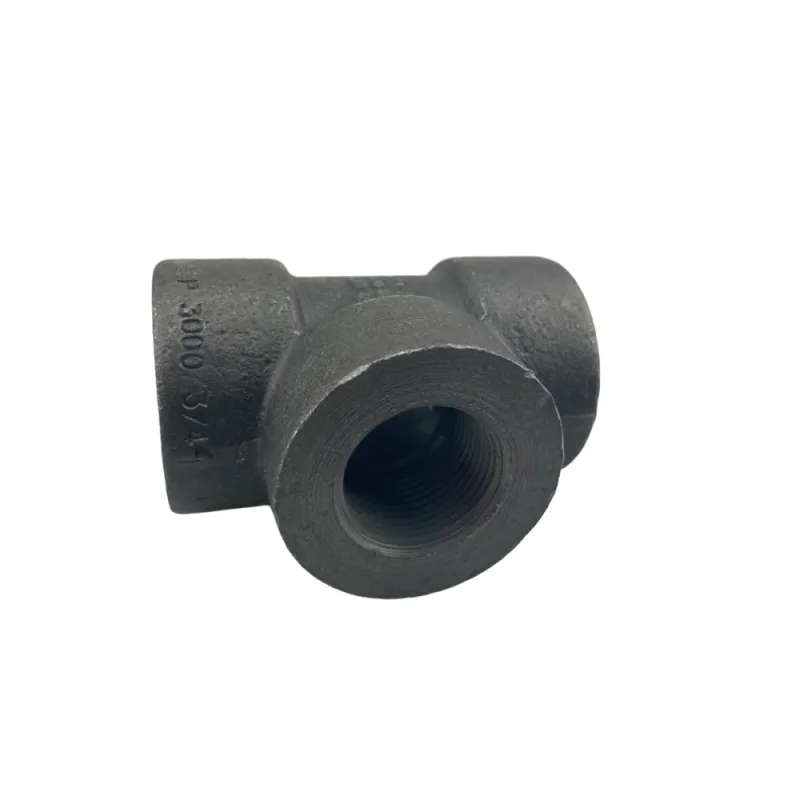

  • Té Série 3000 A105N NPT Femelle
  • Té Série 3000 A105N NPT Femelle Femelle Femelle
  • Plan Té Série 3000 A105N NPT Femelle

Photos non contractuelles

A105N Series 3000 female NPT tee - High-pressure connection

Description:

The Series 3000 A105N forged steel equal tee is designed to connect three pipe segments at right angles, ensuring efficient fluid distribution in high-pressure industrial systems. Its NPT female thread guarantees tight, secure connections.

Applications :

This fitting is ideal for a variety of industries requiring robust connections, including:

  • Oil and gas
  • Chemical processing plants
  • Power plants
  • Hydraulic and pneumatic systems

Available from 1/4" to 2" (larger diameters on request)

Plus de détails
Type de raccordement : Á visser NPT
dn15 ~ 1/2'' ~ ø21.30
Are you an individual?
Are you a professional?

Log in to find out your discount.

€12.01 Tax included

10.01 € tax excl.

Unité de vente : Pièce
S3TE0D000NF0015
Diameter (in inches): DN15 ~ 1/2'' ~ Ø21.30
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Tee 3000 Series A105N NPT Female

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Tee 3000 Series A105N NPT Female

Technical specifications:

  • Material: ASTM A105N carbon steel, renowned for its strength and ability to withstand high pressures.
  • Connection type: NPT female thread to ASME B1.20.1.
  • Shape: 90° equal tee, allowing flow to be diverted or distributed in piping systems.

Specifications:

  • Pressure rating (PN): Up to 210 bar (3000 psi), suitable for high-pressure applications.
  • Available diameters: From 1/4" to 2", to meet the specific needs of each installation.
  • Manufacturing standard: Conforms to ASME B16.11, guaranteeing precise dimensions and interchangeability with other standardized components.

Standards and certifications: This fitting complies with the following standards:

  • Material: ASTM A105N, standard specification for forged carbon steel fittings for high-pressure applications.
  • Dimensions and tolerances: ASME B16.11, covering forged socket-weld and threaded fittings.

Pressure resistance: The pressure rating of this fitting is 3000 psi (210 bar), making it suitable for systems requiring high pressure resistance.

Temperature range: This A105N steel fitting is designed for use in high-temperature environments, typically up to 425°C, depending on specific operating conditions.

Caractéristiques techniques Tee 3000 Series A105N NPT Female

Data sheet

Reference
S3TE0D000NF0015
Matière
Acier A105
Forme
Té
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser NPT
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression maximum
210 bar
Température maximum
450°C
Poid
En fonction du modèle choisi
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Tee 3000 Series A105N NPT Female

Voici la liste des références et poids correspondants aux options séléctionnées.
S3TE0D000NF0008 - Tee 3000 Series A105N NPT Female - DN8 ~ 1/4'' ~ Ø13.50
Diameter (in inches) DN8 ~ 1/4'' ~ Ø13.50
Packed weight 0,17kg
8.2 € tax excl.
Consulter
S3TE0D000NF0010 - Tee 3000 Series A105N NPT Female - DN10 ~ 3/8'' ~ Ø17.20
Diameter (in inches) DN10 ~ 3/8'' ~ Ø17.20
Packed weight 0,18kg
8.72 € tax excl.
Consulter
S3TE0D000NF0015 - Tee 3000 Series A105N NPT Female - DN15 ~ 1/2'' ~ Ø21.30
Diameter (in inches) DN15 ~ 1/2'' ~ Ø21.30
Packed weight 0,33kg
10.01 € tax excl.
Consulter
S3TE0D000NF0020 - Tee 3000 Series A105N NPT Female - DN20 ~ 3/4'' ~ Ø26.70
Diameter (in inches) DN20 ~ 3/4'' ~ Ø26.70
Packed weight 0,46kg
12.94 € tax excl.
Consulter
S3TE0D000NF0025 - Tee 3000 Series A105N NPT Female - DN25 ~ 1'' ~ Ø33.40
Diameter (in inches) DN25 ~ 1'' ~ Ø33.40
Packed weight 0,71kg
17.88 € tax excl.
Consulter
S3TE0D000NF0032 - Tee 3000 Series A105N NPT Female - DN32 ~ 1''1/4 ~ Ø42.20
Diameter (in inches) DN32 ~ 1''1/4 ~ Ø42.20
Packed weight 1kg
23.14 € tax excl.
Consulter
S3TE0D000NF0040 - Tee 3000 Series A105N NPT Female - DN40 ~ 1''1/2 ~ Ø48.30
Diameter (in inches) DN40 ~ 1''1/2 ~ Ø48.30
Packed weight 1,3kg
34.22 € tax excl.
Consulter
S3TE0D000NF0050 - Tee 3000 Series A105N NPT Female - DN50 ~ 2'' ~ Ø60.30
Diameter (in inches) DN50 ~ 2'' ~ Ø60.30
Packed weight 2,11kg
57.14 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
S3TE0D000NF0008 - Tee 3000 Series A105N NPT Female - DN8 ~ 1/4'' ~ Ø13.50 DN8 ~ 1/4'' ~ Ø13.50 0,17kg 8.2 € tax excl.
S3TE0D000NF0010 - Tee 3000 Series A105N NPT Female - DN10 ~ 3/8'' ~ Ø17.20 DN10 ~ 3/8'' ~ Ø17.20 0,18kg 8.72 € tax excl.
S3TE0D000NF0015 - Tee 3000 Series A105N NPT Female - DN15 ~ 1/2'' ~ Ø21.30 DN15 ~ 1/2'' ~ Ø21.30 0,33kg 10.01 € tax excl.
S3TE0D000NF0020 - Tee 3000 Series A105N NPT Female - DN20 ~ 3/4'' ~ Ø26.70 DN20 ~ 3/4'' ~ Ø26.70 0,46kg 12.94 € tax excl.
S3TE0D000NF0025 - Tee 3000 Series A105N NPT Female - DN25 ~ 1'' ~ Ø33.40 DN25 ~ 1'' ~ Ø33.40 0,71kg 17.88 € tax excl.
S3TE0D000NF0032 - Tee 3000 Series A105N NPT Female - DN32 ~ 1''1/4 ~ Ø42.20 DN32 ~ 1''1/4 ~ Ø42.20 1kg 23.14 € tax excl.
S3TE0D000NF0040 - Tee 3000 Series A105N NPT Female - DN40 ~ 1''1/2 ~ Ø48.30 DN40 ~ 1''1/2 ~ Ø48.30 1,3kg 34.22 € tax excl.
S3TE0D000NF0050 - Tee 3000 Series A105N NPT Female - DN50 ~ 2'' ~ Ø60.30 DN50 ~ 2'' ~ Ø60.30 2,11kg 57.14 € tax excl.
