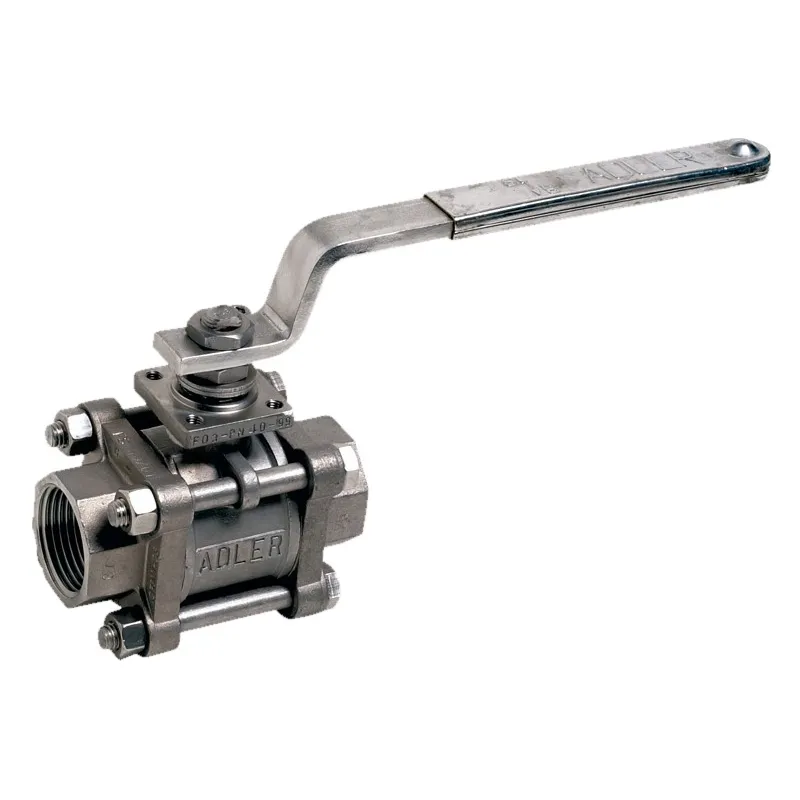

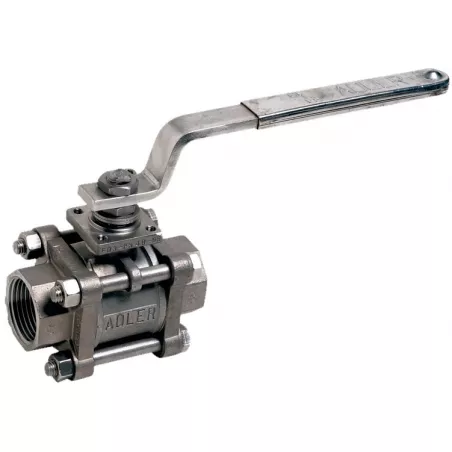

ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe 1/4" (8/13) bsp
RBS 3-piece stainless steel ball valve (ASTM A351 CF8M), fire-safe
ADLER Type FP3 3-piece fire-safe ball valve
Applications:
Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -28°C to +200°C Maximum permissible
pressure Ps: see table below Vacuum
resistance 10⁻⁵ torr Compressed
air at ambient temperature: 8 bar up to DN50, 6 bar from DN65 to 100
Steam: 6 bar up to DN50, 3 bar from DN65 to 100
CCPU 3.1 material certificate available
Stainless steel body with BSP threaded connection (NPT on request), BW or SW welded connection Ref. 713 from DN 8 to DN 100
Can be operated via IP67 handwheel gear unit Ref. 9830260 to 262 from DN 15 to DN 100 (on request)
1
1/4" (8/13)
bsp
Are you an individual?
Are you a professional?
Log in to find out your discount.
€181.12
Tax included
150.93 € tax excl.
Unité de vente : Pièce
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
Certificates materials pour ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe
Would you like to order materials that require a material certificate?
Here are the steps to follow :
1. Add product to cart.
2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).
Currently selected product reference : --
Complément d'information ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Technical specifications:
- Full bore in accordance with ISO 14313
- Non-ejectable spindle
- Motorizable (ISO 5211 mounting plate)
- 3-piece design
- Dual anti-static system
- Fire safety ISO 10497 (up to DN80), ISO-FT marking
- Fugitive emissions in accordance with ISO 15848-1:2003 Class A
- Shaft sealing via 3 graphite-filled PTFE chevron seals
- Stuffing box with clearance adjustment via spring washers
- Blue RAL5012 epoxy-polyamide paint, 35-micron thickness
Construction:
- Ball: ASTM A351 CF3M steel.
- PTFE/graphite gland with clearance adjustment via spring washers.
- Non-ejectable shaft: ASTM A182 F316L stainless steel.
- Antistatic system.
- Seats: Virgin PTFE.
- ISO 5211 mounting plate.
- Dimensions: DN 8 to 100 mm
- Connection: BSP or NPT threaded (upon request), B.W. or S.W. welded
- Material: Stainless steel
Accessories and Options on request: (Additional cost and lead time apply)
- Padlock system Ref. 9830140 to 9830145 from DN 8 to DN 100
- Stainless steel lever Ref. 9830170 to 9830175 from DN 8 to DN 100
- Oval steel handwheel Ref. 9830270 to 9830272 from DN 8 to DN 32
- Oval stainless steel handwheel
- All-stainless steel hardware
- Steel spindle extension, height 100 mm, Ref. 9830273 to 9830277, DN 8 to DN 100
- Stainless steel spindle extension, height 100 mm, Ref. 9830193 to 9830197, DN 8 to DN 100
- Deadman system Ref. 9830160 to 9830165 from DN 15 to DN 50
- Oxygen degassing Ref. 9830150 to 9830155 from DN 8 to DN 100
- Standard degreasing
- PTFE seals reinforced with glass, graphite, stainless steel, or with a metal core
- Full PTFE or glass-filled PTFE lining
- Heating jacket in steel or stainless steel
- Special coatings
- Pressure relief hole in the sphere
- O-ring on the shaft
Standardization:
- DIRECTIVE 97/23/EC: CE No. 0038 Risk
Category III, Module H - Designed in accordance with BS EN 12516-2
- Manufactured in accordance with ISO 14313
- Materials in accordance with NACE MR 01-75
- Leak testing in accordance with standard EN 12266-1, Class A
- Marking in accordance with EN 19
- Fire safety in accordance with ISO 10497 (up to DN80)
- Fugitive emissions in accordance with ISO 15848-1:2003 Class A
- SIL3 safety integrity level in accordance with IEC/EN 61508 (upon request)
- Cylindrical BSP female threaded ends in accordance with ISO 7-1 Rp
- Female NPT threaded ends in accordance with ANSI B1.20.1 (upon request)
- B.W. weld ends in accordance with UNI EN 12627 (formerly DIN 3239)
- Base plate in accordance with ISO 5211
- Spacing in accordance with DIN 3202 M3
- ATEX Group II Category 2 GDc TX Zone 1 & 21 Zone 2 & 22
(optional marking) - Upon request ATEX Group II Category 1G/Dc TX Zone 0 & 20
| Nominal Ø | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2 1/2" | 3" | 4" |
| Nominal Diameter | 10 | 10 | 15 | 19 | 25 | 30 | 38 | 51 | 64 | 76 | 101 |
| PS | 100 | 100 | 64 | 64 | 40 | 40 | 40 | 40 | 25 | 25 | 20 |
| Track width | 50 | 60 | 75 | 80 | 90 | 110 | 120 | 140 | 185 | 205 | 240 |
Caractéristiques techniques ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe
Data sheet
- Reference
- 71300C000BFF008
- Type
- FP3
- Type de vanne
- RBS (Robinet à tournant sphérique)
- Passage
- Intégral
- Matière
- Acier inox
- Corps
- Inox ASTM A351 CF8M
- Obturateur
- Inox ASTM A351 CF8M
- Siège
- PTFE
- Axe
- Inéjectable
- Presse-étoupe
- PTFE chargé 15% graphite
- Platine
- Platine ISO 5211
- Joint
- PTFE
- Commande
- UNI 5946 Fe 37 galvanisé, réversible
- Entraxe
- En fonction du modèle choisi
- Type de raccordement
- En fonction du modèle choisi
- Raccordement
- En fonction du modèle choisi
- Diamètre
- En fonction du modèle choisi
- Débit
- En fonction du modèle choisi
- Pression de service
- En fonction du modèle choisi
- Température minimum
- -28°C
- Température maximum
- 200°C
- Fluide admissible
- Fluides courants compatibles
- Classement Feu
- ISO 10497:2004 (API 607 + BS6755) et 6FA
- Normes et certifications
- ATEX CE ISO 9001 Lloyd's Register Lloyd's register PED 97/23/CE NACE MR 01-75 Sécurité feu ISO 10497 Test d'étanchéité API 598 Émissions fugitives ISO 15848-1 : 2003 classe A
- Normalisation
- DIRECTIVE 97/23/CE : CE N° 0038
- Équipements
- Platine ISO
- Possibilité de certificat 3.1
- Oui
- Possibilité de marquage ATEX
- Oui
- Unité de vente
- Pièce
- Garantie fabricant
- 1 an
Download documentation
Accessoires et équipements (vendus séparément)
Caractéristiques liées à la version du produit ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe
Voici la liste des références et poids correspondants aux options séléctionnées.71300C000BFF008 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/4" (8/13) - BSP
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Raccordement | BSP |
| Packed weight | 0,4725kg |
71300C0000BW008 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/4" (8/13) - À souder BW
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 0,4725kg |
71300C0000SW008 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/4" (8/13) - À souder SW
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 0,4725kg |
71300C0000BW010 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/8" (12/17) - À souder BW
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 0,4725kg |
71300C0000SW010 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/8" (12/17) - À souder SW
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 0,4725kg |
71300C000BFF010 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/8" (12/17) - BSP
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Raccordement | BSP |
| Packed weight | 0,4725kg |
71300C0000SW015 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/2" (15/21) - À souder SW
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 0,735kg |
71300C000BFF015 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/2" (15/21) - BSP
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Raccordement | BSP |
| Packed weight | 0,735kg |
71300C0000BW015 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1/2" (15/21) - À souder BW
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 0,735kg |
71300C000BFF020 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/4" (20/27) - BSP
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Raccordement | BSP |
| Packed weight | 0,945kg |
71300C0000BW020 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/4" (20/27) - À souder BW
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 0,945kg |
71300C0000SW020 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3/4" (20/27) - À souder SW
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 0,945kg |
71300C000BFF025 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1" (26/34) - BSP
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Raccordement | BSP |
| Packed weight | 1,47kg |
71300C0000BW025 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1" (26/34) - À souder BW
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 1,47kg |
71300C0000SW025 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1" (26/34) - À souder SW
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 1,47kg |
71300C0000BW032 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/4 (33/42) - À souder BW
| Diameter (in inches) | 1"1/4 (33/42) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 2,205kg |
71300C0000SW032 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/4 (33/42) - À souder SW
| Diameter (in inches) | 1"1/4 (33/42) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 2,205kg |
71300C000BFF032 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/4 (33/42) - BSP
| Diameter (in inches) | 1"1/4 (33/42) |
|---|---|
| Raccordement | BSP |
| Packed weight | 2,205kg |
71300C0000SW040 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/2 (40/49) - À souder SW
| Diameter (in inches) | 1"1/2 (40/49) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 2,94kg |
71300C000BFF040 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/2 (40/49) - BSP
| Diameter (in inches) | 1"1/2 (40/49) |
|---|---|
| Raccordement | BSP |
| Packed weight | 2,94kg |
71300C0000BW040 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 1"1/2 (40/49) - À souder BW
| Diameter (in inches) | 1"1/2 (40/49) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 2,94kg |
71300C000BFF050 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2" (50/60) - BSP
| Diameter (in inches) | 2" (50/60) |
|---|---|
| Raccordement | BSP |
| Packed weight | 4,935kg |
71300C0000BW050 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2" (50/60) - À souder BW
| Diameter (in inches) | 2" (50/60) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 4,935kg |
71300C0000SW050 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2" (50/60) - À souder SW
| Diameter (in inches) | 2" (50/60) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 4,935kg |
71300C000BFF065 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2"1/2 (66/76) - BSP
| Diameter (in inches) | 2"1/2 (66/76) |
|---|---|
| Raccordement | BSP |
| Packed weight | 10,395kg |
71300C0000BW065 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2"1/2 (66/76) - À souder BW
| Diameter (in inches) | 2"1/2 (66/76) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 10,395kg |
71300C0000SW065 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 2"1/2 (66/76) - À souder SW
| Diameter (in inches) | 2"1/2 (66/76) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 10,395kg |
71300C0000BW080 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3" (80/90) - À souder BW
| Diameter (in inches) | 3" (80/90) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 14,49kg |
71300C0000SW080 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3" (80/90) - À souder SW
| Diameter (in inches) | 3" (80/90) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 14,49kg |
71300C000BFF080 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 3" (80/90) - BSP
| Diameter (in inches) | 3" (80/90) |
|---|---|
| Raccordement | BSP |
| Packed weight | 14,49kg |
71300C0000SW100 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 4" (102/114) - À souder SW
| Diameter (in inches) | 4" (102/114) |
|---|---|
| Raccordement | À souder SW |
| Packed weight | 23,1kg |
71300C000BFF100 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 4" (102/114) - BSP
| Diameter (in inches) | 4" (102/114) |
|---|---|
| Raccordement | BSP |
| Packed weight | 23,1kg |
71300C0000BW100 - ADLER RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, fire-safe - 4" (102/114) - À souder BW
| Diameter (in inches) | 4" (102/114) |
|---|---|
| Raccordement | À souder BW |
| Packed weight | 23,1kg |
RBS 3-piece stainless steel ball valve (ASTM A351 CF8M), fire-safe
ADLER Type FP3 3-piece fire-safe ball valve
Applications:
Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -28°C to +200°C Maximum permissible
pressure Ps: see table below Vacuum
resistance 10⁻⁵ torr Compressed
air at ambient temperature: 8 bar up to DN50, 6 bar from DN65 to 100
Steam: 6 bar up to DN50, 3 bar from DN65 to 100
CCPU 3.1 material certificate available
Stainless steel body with BSP threaded connection (NPT on request), BW or SW welded connection Ref. 713 from DN 8 to DN 100
Can be operated via IP67 handwheel gear unit Ref. 9830260 to 262 from DN 15 to DN 100 (on request)
Customer reviews (0)
Log in to share your opinion
