RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 lumière en l dn 25

Name: RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 lumière en l dn 25
Brand: THERSANE
SKU: 78300WELPN16025
Price: 562.03 EUR
Availability: InStock

RBS série acier inox à brides Industrie

RBS 3 voies à brides acier ASTM A216 WCB PN 16

Photos non contractuelles

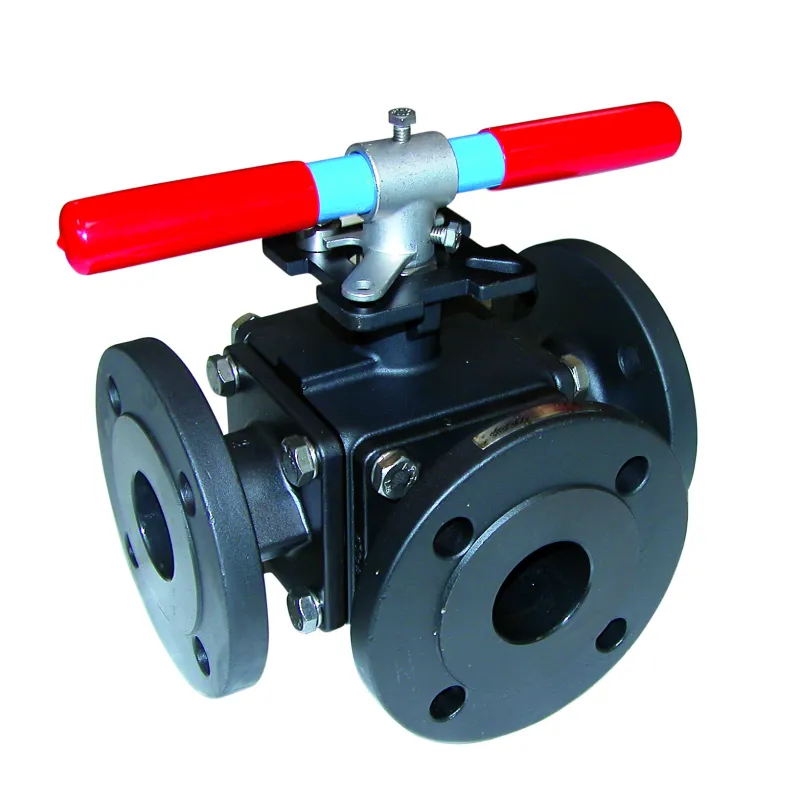

RBS 3-way flanged ball valve, ASTM A216 WCB steel, PN 16, L- or T-pattern

3-way carbon steel ball valve, flanged, PN16

Applications:

Chemicals, petrochemical industries, hydraulic systems, heating systems, air and water distribution. Minimum and
maximum permissible temperatures Ts: -20°C to +150°C. Maximum permissible
pressure Ps: 16 bar (see curve).
Not suitable for vacuum.

CCPU 3.1 material certificate and ATEX marking available

3-way ball valve, carbon steel body with L-shaped port, Ref. 783, DN 25 to DN 150

3-way ball valve, carbon steel body with T-port, Ref. 784, DN 25 to DN 150

Plus de détails

Normes et certifications : Lloyd's register PED 97/23/CE

Normes et certifications : ISO 9001 Lloyd's Register

Type de raccordement : À brides EN1092-1 PN16

lumière en l dn 25

Are you an individual?

Are you a professional?

€562.03 Tax included

468.36 € tax excl.

Unité de vente : Pièce

Reference : 78300WELPN16025

Type de vanne: Lumière en L

Diameter DN: DN 25

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Full-size
Non-ejectable shaft
Dual antistatic system
Glass-filled PTFE seats
Lockable handle
Motorizable (ISO 5211 mounting plate)
Sealed on all 3 ports
L- or T-shaped orifice
Spindle-mounted ball from DN100 to DN150

Construction:

Stainless steel ball, ASTM A351 CF8M.
Ball valve from DN100.
PTFE gland + FKM O-ring.
Non-injectable shaft: ASTM A182 F304 stainless steel.
Seats: PTFE reinforced with 15% glass.
ISO 5211 mounting plate.
Red steel padlockable handle.
Sizes: DN 25 to 150
Connection: PN16 R.F. flanges
Material: ASTM A216 WCB carbon steel

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0038 Risk
Category III Module H
Certificate 3.1 available upon request
Leak testing in accordance with EN 12266-1, Class A
R.F. PN16 flanges in accordance with EN 1092-1 PN16
Base plate in accordance with ISO 5211
ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 (optional marking) in accordance with Directive 2014/34/EU

Nominal Ø	25	32	40	50	65	80	100	125	150
Passage diameter	25	32	38	49	64	76	99	125	150
PS	16	16	16	16	16	16	16	16	16
Track gauge	185	195	232	253	270	292.5	360	416	473

Caractéristiques techniques RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16

Data sheet

Reference: 78300WELPN16025
Type de vanne: Vanne à sphère 3 voies
Passage: Intégral
Corps: ASTM A216 WCB
Obturateur: inox
Siège: PTFE chargé 15% verre
Axe: Inéjectable
Presse-étoupe: PTFE
Platine: Platine ISO 5211
Commande: Couleur rouge Réversible
Entraxe: En fonction du modèle choisi
Type de raccordement: À brides EN1092-1 PN16
Diamètre: En fonction du modèle choisi
Débit: En fonction du modèle choisi
Pression de service: 16B
Température minimum: -20°C
Température maximum: 150°C
Fluide admissible: Air comprimé Eau Eau chauffage Industries chimiques Industries pétrochimiques Installations hydrauliques
Normes et certifications: ATEX CE ISO 9001 Lloyd's Register Lloyd's register PED 97/23/CE Tests d’étanchéité EN 12266-1, Classe A
Normalisation: DIRECTIVE 97/23/CE : CE N° 0038
Équipements: Cadenassable Platine ISO
Possibilité de certificat 3.1: Oui
Possibilité de marquage ATEX: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Download documentation

FT 784

Fiche technique robinet à tournant sphérique 3 voies acier lumière en T

Download (1.77MB)

FT 783

Fiche technique robinet à tournant sphérique 3 voies acier lumière en L

Download (1.78MB)

Accessoires et équipements (vendus séparément)

Quick view

CCPU 3.1 Material Certificate

€19.50

Quick view

ATEX Marking

€19.50

Caractéristiques liées à la version du produit RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16

Voici la liste des références et poids correspondants aux options séléctionnées.

78300WELPN16040 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 40

Type de vanne	Lumière en L
Diameter DN	DN 40
Packed weight	15,645kg

798.79 € tax excl.

Type de vanne	Lumière en T
Diameter DN	DN 80
Packed weight	36,225kg

Référence - Désignation	Type de vanne	Diameter DN	Packed weight	Prix
78300WELPN16040 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 40	Lumière en L	DN 40	15,645kg	798.79 € tax excl.
78300WELPN16100 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 100	Lumière en L	DN 100	70,77kg	3811.05 € tax excl.
78300WELPN16080 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 80	Lumière en L	DN 80	36,225kg	1875.45 € tax excl.
78300WELPN16032 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 32	Lumière en L	DN 32	11,445kg	644.51 € tax excl.
78300WELPN16065 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 65	Lumière en L	DN 65	24,9375kg	1634.75 € tax excl.
78300WELPN16150 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 150	Lumière en L	DN 150	130,2kg	7404.28 € tax excl.
78300WELPN16025 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 25	Lumière en L	DN 25	7,875kg	468.36 € tax excl.
78300WELPN16050 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 50	Lumière en L	DN 50	19,0575kg	1197.07 € tax excl.
78300WELPN16125 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en L - DN 125	Lumière en L	DN 125	99,75kg	5987.35 € tax excl.
78300WETPN16080 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 80	Lumière en T	DN 80	36,225kg	1875.45 € tax excl.
78300WETPN16032 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 32	Lumière en T	DN 32	11,445kg	644.51 € tax excl.
78300WETPN16065 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 65	Lumière en T	DN 65	24,9375kg	1634.75 € tax excl.
78300WETPN16150 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 150	Lumière en T	DN 150	133,35kg	7404.28 € tax excl.
78300WETPN16025 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 25	Lumière en T	DN 25	7,875kg	468.36 € tax excl.
78300WETPN16125 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 125	Lumière en T	DN 125	99,75kg	5987.35 € tax excl.
78300WETPN16050 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 50	Lumière en T	DN 50	19,0575kg	1197.07 € tax excl.
78300WETPN16100 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 100	Lumière en T	DN 100	64,89kg	3811.05 € tax excl.
78300WETPN16040 - RBS 3-way ball valve with flanges, made of ASTM A216 WCB steel, PN 16 - Lumière en T - DN 40	Lumière en T	DN 40	15,645kg	798.79 € tax excl.
