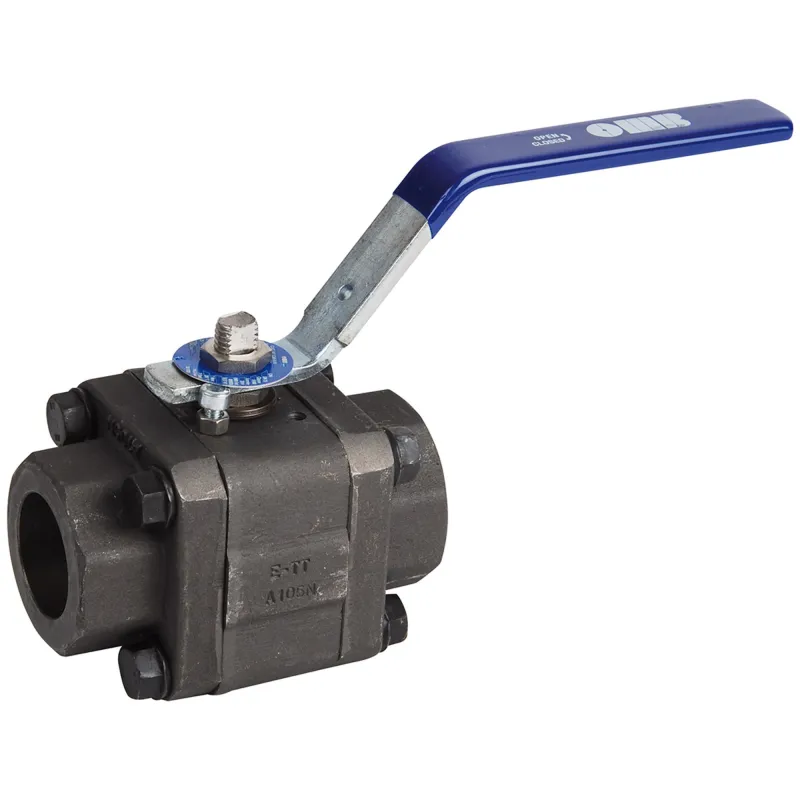

RBS 3-piece ball valve, forged A105N carbon steel, Class 800, full-bore

3-piece ball valve, forged A105N carbon steel, Class 800

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air
Steam: 16 bar maximum Minimum and maximum
permissible temperatures Ts: -29°C to +220°C Maximum permissible
pressure Ps: 138 bar (see curve)

CCPU 3.1 material certificate available

NPT-threaded steel ball valve Ref. 745 DN 15 to 50 (NPS 1/2" to 2") SW-welded steel
ball valve Ref. 7451 DN 15 to 50 (NPS 1/2" to 2")

Plus de détails
Normes et certifications : CENormes et certifications : ATEXNormes et certifications : TUV PED 97/23/CENormes et certifications : TUV ISO 9001Normes et certifications : Sécurité feu API 607Fluide admissible : Vapeur1
3/4" (20/27) npt
Are you an individual?
Are you a professional?

Log in to find out your discount.

€253.74 Tax included

211.45 € tax excl.

Unité de vente : Pièce
74500A000NFF020
Diameter (in inches): 3/4" (20/27)
Raccordement: NPT
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 3-piece ball valve, forged steel A105N, Class 800

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 3-piece ball valve, forged steel A105N, Class 800

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Gland with clearance adjustment via spring washers
  • Double shaft sealing via a 25% glass-filled PTFE gland and an FKM O-ring
  • Double sealing between body and end caps via an FKM O-ring and a graphite seal
  • Antistatic system
  • Fire safety in accordance with API 607 Version 4
  • ATEX
  • Motorizable (ISO 5211 mounting plate)
  • Recessed tie rods
  • Class 800
  • Optional: padlock system, oval handwheel, and T-handle

Construction:

  • Body and end caps: A105N forged steel.
  • Ball: A182 F316 stainless steel.
  • Stuffing box: PTFE + 25% glass-filled + FKM O-ring.
  • Non-ejectable shaft: A182 F316 stainless steel.
  • Seat: PTFE + 15% glass-filled.
  • Anti-static system on the shaft.
  • ISO 5211 mounting plate.
  • Sizes: DN 15 to 50 (NPS 1/2" to 2")
  • Connection: NPT threaded, S.W. weld
  • Material: A105N forged steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0036 Risk
    Category III, Module H
  • Certificate 3.1 available upon request
  • Manufactured in accordance with ISO 17292
  • Design in accordance with ASME B16.34
  • Leak testing in accordance with API 598, Table 6
  • Fire safety in accordance with API 607, Version 4
  • NPT threaded connections in accordance with ANSI B1.20.1
  • SW weld-on connections in accordance with ASME B16.11
  • Mounting plate in accordance with ISO 5211
  • ATEX Group II Category 2 G c T3 Zone 1 & 21 Zone 2 & 22 (optional marking)

Nominal Ø 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
PS 138 138 138 138 138 138
Track gauge 75 87 110 120 140 160
