RBS 3-piece ball valve, ASTM A216 WCB steel 1/4" (8/13) bsp

Name: RBS 3-piece ball valve, ASTM A216 WCB steel 1/4 (8/13) bsp
Brand: THERSANE
SKU: 79600WCD0BFF008
Price: 36.7 EUR
Availability: InStock

RBS série industrie légère à visser ou souder

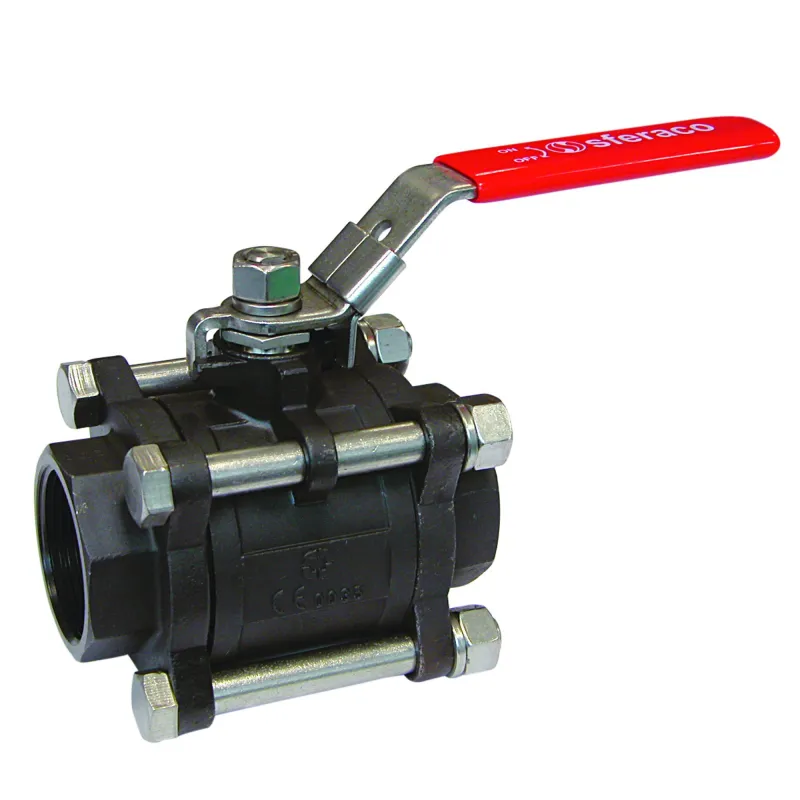

Robinet à tournant sphérique RBS 3 pièces acier ASTM A216 WCB

Photos non contractuelles

RBS 3-piece ball valve, ASTM A216 WCB steel, non-injectable stem, and 304 stainless steel ball

3-piece PN63 steel ball valve ~ 3-piece PN63 ball valve

Applications:

Chemical and pharmaceutical industries, petrochemical industries Minimum
and maximum permissible temperature Ts: -20°C to +180°C Maximum
allowable pressure Ps: 63 bar up to DN20, 40 bar from DN25 to 50, 25 bar from DN65 to 80, and 20 bar for DN100 (see
curve below)

CCPU 3.1 material certificate available

3-piece carbon steel ball valve Initiale series from DN 8 to DN 100

Available connections:

Female / female BSP threaded Ref. 796
Female/female NPT threaded Ref. 7961
S.W. weld-on Ref. 798
Butt-welded Ref. 797

Plus de détails

Normes et certifications : Lloyd's register ISO 9001 - 2008

Normes et certifications : Lloyd's register PED 97/23/CE

1/4" (8/13) bsp

Are you an individual?

Are you a professional?

€36.70 Tax included

30.58 € tax excl.

Unité de vente : Pièce

Reference : 79600WCD0BFF008

Diameter (in inches): 1/4" (8/13)

Raccordement: BSP

BSP
NPT
À souder BW
À souder SW

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour RBS 3-piece ball valve, ASTM A216 WCB steel

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 3-piece ball valve, ASTM A216 WCB steel

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Full-size
Non-ejectable shaft
PTFE gland
Lockable handle
304 stainless steel extension (optional)
Phosphate coating, 5 μm thick

Construction:

PTFE gland.
PTFE seat with 15% glass reinforcement.
Red padlockable handle, ASTM A182 F304 stainless steel.
Dimensions: DN 8 to 100 mm
Connection: BSP or NPT threaded, S.W. or B.W. welded
Material: Carbon steel

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0038 Risk
Category III Module H
Leak testing in accordance with API 598
Cylindrical BSP threaded connections in accordance with ISO 228-1
NPT threaded connections in accordance with ANSI B1.20.1

Nominal Ø	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2 1/2"	3"	4"
Passage diameter	11.6	12.5	15	20	25	32	38	50	65	76	100
PS	63	63	63	63	40	40	40	40	25	25	20
Track width	59	59	63.3	70.6	82	97	109	124.6	162	175	216

Caractéristiques techniques RBS 3-piece ball valve, ASTM A216 WCB steel

Data sheet

Reference: 79600WCD0BFF008
Type de vanne: RBS (Robinet à tournant sphérique)
Passage: Intégral
Corps: Acier A216WCB
Obturateur: inox
Siège: Siège PTFE chargé verre 15%
Axe: Inéjectable
Presse-étoupe: PTFE
Commande: Couleur rouge Réversible
Entraxe: En fonction du modèle choisi
Type de raccordement: En fonction du modèle choisi
Raccordement: En fonction du modèle choisi
Diamètre: En fonction du modèle choisi
Débit: En fonction du modèle choisi
Pression de service: En fonction du modèle choisi
Température minimum: -20°C
Température maximum: 180°C
Fluide admissible: Fluides courants compatibles
Normes et certifications: CE ISO 9001 Lloyd's register ISO 9001 - 2008 Lloyd's register PED 97/23/CE Test d'étanchéité API 598
Normalisation: DIRECTIVE 97/23/CE : CE N° 0038
Équipements: Cadenassable
Possibilité de certificat 3.1: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Accessoires et équipements (vendus séparément)

Quick view

Caractéristiques liées à la version du produit RBS 3-piece ball valve, ASTM A216 WCB steel

Voici la liste des références et poids correspondants aux options séléctionnées.

79600WCD0BFF008 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/4" (8/13) - BSP

Diameter (in inches)	1/4" (8/13)
Raccordement	BSP
Packed weight	0,3465kg

30.58 € tax excl.

Diameter (in inches)	3/8" (12/17)
Raccordement	À souder BW
Packed weight	0,357kg

Diameter (in inches)	1/2" (15/21)
Raccordement	À souder SW
Packed weight	0,54075kg

Diameter (in inches)	3/4" (20/27)
Raccordement	BSP
Packed weight	0,78225kg

Diameter (in inches)	1" (26/34)
Raccordement	BSP
Packed weight	1,134kg

Diameter (in inches)	1"1/4 (33/42)
Raccordement	À souder BW
Packed weight	2,0265kg

Diameter (in inches)	1"1/2 (40/49)
Raccordement	À souder SW
Packed weight	2,919kg

Diameter (in inches)	2" (50/60)
Raccordement	BSP
Packed weight	4,48875kg

Diameter (in inches)	2"1/2 (66/76)
Raccordement	BSP
Packed weight	8,4kg

Diameter (in inches)	3" (80/90)
Raccordement	À souder BW
Packed weight	12,705kg

Diameter (in inches)	4" (102/114)
Raccordement	À souder SW
Packed weight	27,3kg

Référence - Désignation	Diameter (in inches)	Raccordement	Packed weight	Prix
79600WCD0BFF008 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/4" (8/13) - BSP	1/4" (8/13)	BSP	0,3465kg	30.58 € tax excl.
79600WCD0NFF008 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/4" (8/13) - NPT	1/4" (8/13)	NPT	0,3465kg	30.58 € tax excl.
79600WCD00BW008 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/4" (8/13) - À souder BW	1/4" (8/13)	À souder BW	0,34125kg	30.58 € tax excl.
79600WCD00SW008 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/4" (8/13) - À souder SW	1/4" (8/13)	À souder SW	0,33075kg	30.58 € tax excl.
79600WCD00BW010 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/8" (12/17) - À souder BW	3/8" (12/17)	À souder BW	0,357kg	30.58 € tax excl.
79600WCD0NFF010 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/8" (12/17) - NPT	3/8" (12/17)	NPT	0,36225kg	30.58 € tax excl.
79600WCD00SW010 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/8" (12/17) - À souder SW	3/8" (12/17)	À souder SW	0,357kg	30.58 € tax excl.
79600WCD0BFF010 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/8" (12/17) - BSP	3/8" (12/17)	BSP	0,36225kg	30.58 € tax excl.
79600WCD00SW015 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/2" (15/21) - À souder SW	1/2" (15/21)	À souder SW	0,54075kg	36.3 € tax excl.
79600WCD0BFF015 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/2" (15/21) - BSP	1/2" (15/21)	BSP	0,546kg	36.3 € tax excl.
79600WCD00BW015 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/2" (15/21) - À souder BW	1/2" (15/21)	À souder BW	0,5355kg	36.3 € tax excl.
79600WCD0NFF015 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1/2" (15/21) - NPT	1/2" (15/21)	NPT	0,546kg	36.3 € tax excl.
79600WCD0BFF020 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/4" (20/27) - BSP	3/4" (20/27)	BSP	0,78225kg	48.72 € tax excl.
79600WCD00BW020 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/4" (20/27) - À souder BW	3/4" (20/27)	À souder BW	0,82425kg	48.72 € tax excl.
79600WCD0NFF020 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/4" (20/27) - NPT	3/4" (20/27)	NPT	0,78225kg	48.72 € tax excl.
79600WCD00SW020 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3/4" (20/27) - À souder SW	3/4" (20/27)	À souder SW	0,82425kg	48.72 € tax excl.
79600WCD0BFF025 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1" (26/34) - BSP	1" (26/34)	BSP	1,134kg	62.37 € tax excl.
79600WCD00BW025 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1" (26/34) - À souder BW	1" (26/34)	À souder BW	1,1445kg	62.37 € tax excl.
79600WCD0NFF025 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1" (26/34) - NPT	1" (26/34)	NPT	1,134kg	62.37 € tax excl.
79600WCD00SW025 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1" (26/34) - À souder SW	1" (26/34)	À souder SW	1,134kg	62.37 € tax excl.
79600WCD00BW032 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/4 (33/42) - À souder BW	1"1/4 (33/42)	À souder BW	2,0265kg	102.73 € tax excl.
79600WCD0NFF032 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/4 (33/42) - NPT	1"1/4 (33/42)	NPT	1,722kg	102.73 € tax excl.
79600WCD00SW032 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/4 (33/42) - À souder SW	1"1/4 (33/42)	À souder SW	1,71675kg	102.73 € tax excl.
79600WCD0BFF032 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/4 (33/42) - BSP	1"1/4 (33/42)	BSP	1,722kg	102.73 € tax excl.
79600WCD00SW040 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/2 (40/49) - À souder SW	1"1/2 (40/49)	À souder SW	2,919kg	131.79 € tax excl.
79600WCD0BFF040 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/2 (40/49) - BSP	1"1/2 (40/49)	BSP	2,9085kg	131.79 € tax excl.
79600WCD00BW040 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/2 (40/49) - À souder BW	1"1/2 (40/49)	À souder BW	2,94kg	131.79 € tax excl.
79600WCD0NFF040 - RBS 3-piece ball valve, ASTM A216 WCB steel - 1"1/2 (40/49) - NPT	1"1/2 (40/49)	NPT	2,9085kg	131.79 € tax excl.
79600WCD0BFF050 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2" (50/60) - BSP	2" (50/60)	BSP	4,48875kg	189.83 € tax excl.
79600WCD00BW050 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2" (50/60) - À souder BW	2" (50/60)	À souder BW	4,5255kg	189.83 € tax excl.
79600WCD0NFF050 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2" (50/60) - NPT	2" (50/60)	NPT	4,48875kg	189.83 € tax excl.
79600WCD00SW050 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2" (50/60) - À souder SW	2" (50/60)	À souder SW	4,4835kg	189.83 € tax excl.
79600WCD0BFF065 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2"1/2 (66/76) - BSP	2"1/2 (66/76)	BSP	8,4kg	383.01 € tax excl.
79600WCD00BW065 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2"1/2 (66/76) - À souder BW	2"1/2 (66/76)	À souder BW	8,4kg	383.01 € tax excl.
79600WCD00SW065 - RBS 3-piece ball valve, ASTM A216 WCB steel - 2"1/2 (66/76) - À souder SW	2"1/2 (66/76)	À souder SW	8,61kg	383.01 € tax excl.
79600WCD00BW080 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3" (80/90) - À souder BW	3" (80/90)	À souder BW	12,705kg	551.53 € tax excl.
79600WCD00SW080 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3" (80/90) - À souder SW	3" (80/90)	À souder SW	12,705kg	551.53 € tax excl.
79600WCD0BFF080 - RBS 3-piece ball valve, ASTM A216 WCB steel - 3" (80/90) - BSP	3" (80/90)	BSP	12,705kg	551.53 € tax excl.
79600WCD00SW100 - RBS 3-piece ball valve, ASTM A216 WCB steel - 4" (102/114) - À souder SW	4" (102/114)	À souder SW	27,3kg	1141.27 € tax excl.
79600WCD0BFF100 - RBS 3-piece ball valve, ASTM A216 WCB steel - 4" (102/114) - BSP	4" (102/114)	BSP	27,3kg	1141.27 € tax excl.
79600WCD00BW100 - RBS 3-piece ball valve, ASTM A216 WCB steel - 4" (102/114) - À souder BW	4" (102/114)	À souder BW	27,3kg	1141.27 € tax excl.
