RBS 3-piece ball valve, stainless steel ASTM A351 CF8M 1/4" (8/13) bsp

Name: RBS 3-piece ball valve, stainless steel ASTM A351 CF8M 1/4 (8/13) bsp
Brand: THERSANE
SKU: 79000CCD0BFF008
Price: 32.26 EUR
Availability: InStock

RBS série industrie légère à visser ou souder

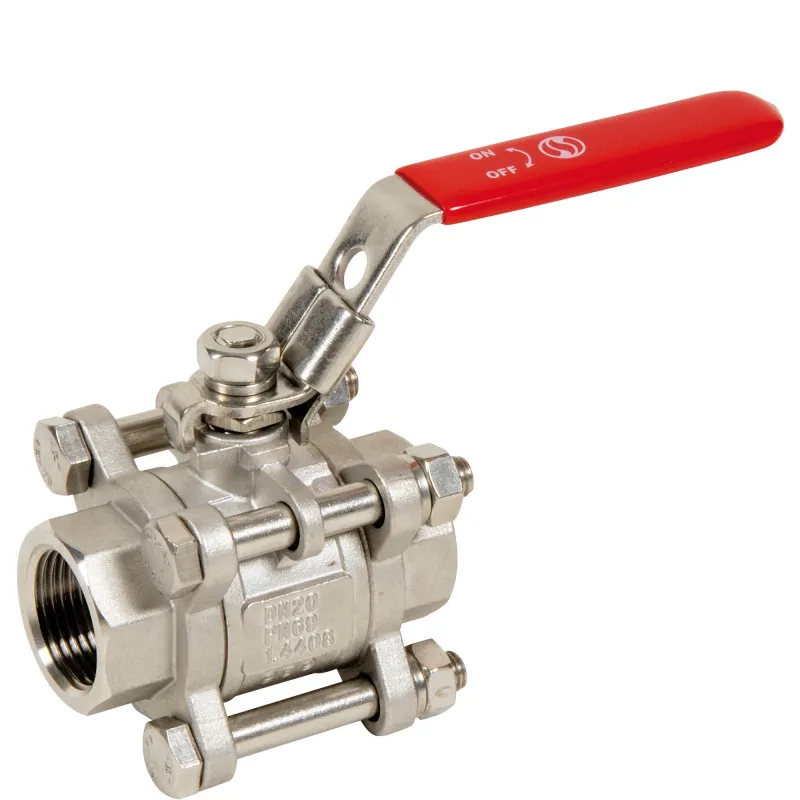

Robinet à tournant sphérique RBS 3 pièces acier inox ASTM A351 CF8M

Photos non contractuelles

RBS 3-piece ball valve, stainless steel ASTM A351 CF8M, non-injectable stem and 316 stainless steel ball

3-piece PN63 stainless steel ball valve ~ 3-piece PN63 ball valve

Applications:

Chemical and pharmaceutical industries, petrochemical industries Minimum
and maximum permissible temperature Ts: -20°C to +180°C Maximum
allowable pressure Ps: 63 bar up to DN20, 40 bar from DN25 to 50, 25 bar from DN65 to 80, and 20 bar for DN100 (see
curve below)

CCPU 3.1 material certificate available

3-piece stainless steel ball valve Initiale series from DN 8 to DN 100

Available connections:

Female / female BSP threaded Ref. 790
Female/female NPT threaded Ref. 744
Weld-on S.W. Ref. 792
Butt-welded Ref. 791

Plus de détails

Normes et certifications : Lloyd's register ISO 9001 - 2008

Normes et certifications : Lloyd's register PED 97/23/CE

1/4" (8/13) bsp

Are you an individual?

Are you a professional?

€32.26 Tax included

26.88 € tax excl.

Unité de vente : Pièce

Reference : 79000CCD0BFF008

Diameter (in inches): 1/4" (8/13)

Raccordement: BSP

BSP
NPT
À souder BW
À souder SW

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour RBS 3-piece ball valve, stainless steel ASTM A351 CF8M

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 3-piece ball valve, stainless steel ASTM A351 CF8M

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Full-size
Non-ejectable shaft
PTFE gland
Lockable handle
304 stainless steel extension (optional)

Construction:

PTFE gland.
PTFE seat reinforced with 15% glass.
Red padlockable handle made of AISI 304 stainless steel.
Dimensions: DN 8 to 100 mm
Connection: BSP or NPT threaded, S.W. or B.W. welded
Material: Stainless steel

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0038 Risk
Category III Module H
Leak testing in accordance with API 598
Cylindrical BSP threaded connections in accordance with ISO 228-1
NPT threaded connections in accordance with ANSI B1.20.1

Nominal Ø	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2 1/2"	3"	4"
Passage diameter	11.6	12.5	15	20	25	32	38	50	64	76	100
PS	63	63	63	63	40	40	40	40	25	25	20
Track width	59	59	63.3	70.6	82	97	109	124.6	162	175	216

Caractéristiques techniques RBS 3-piece ball valve, stainless steel ASTM A351 CF8M

Data sheet

Reference: 79000CCD0BFF008
Type de vanne: RBS (Robinet à tournant sphérique)
Passage: Intégral
Corps: Inox ASTM A351 CF8M
Obturateur: inox
Siège: PTFE chargé 15% verre
Axe: Inéjectable
Presse-étoupe: PTFE
Commande: Couleur rouge Réversible
Entraxe: En fonction du modèle choisi
Type de raccordement: En fonction du modèle choisi
Raccordement: En fonction du modèle choisi
Diamètre: En fonction du modèle choisi
Débit: En fonction du modèle choisi
Pression de service: En fonction du modèle choisi
Température minimum: -20°C
Température maximum: 180°C
Fluide admissible: Fluides courants compatibles
Normes et certifications: CE ISO 9001 Lloyd's register ISO 9001 - 2008 Lloyd's register PED 97/23/CE Test d'étanchéité API 598
Normalisation: DIRECTIVE 97/23/CE : CE N° 0038
Équipements: Cadenassable
Possibilité de certificat 3.1: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Accessoires et équipements (vendus séparément)

Quick view

Caractéristiques liées à la version du produit RBS 3-piece ball valve, stainless steel ASTM A351 CF8M

Voici la liste des références et poids correspondants aux options séléctionnées.

79000CCD0BFF008 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/4" (8/13) - BSP

Diameter (in inches)	1/4" (8/13)
Raccordement	BSP
Packed weight	0,3465kg

26.88 € tax excl.

Diameter (in inches)	3/8" (12/17)
Raccordement	NPT
Packed weight	0,357kg

Diameter (in inches)	1/2" (15/21)
Raccordement	À souder BW
Packed weight	0,54075kg

Diameter (in inches)	3/4" (20/27)
Raccordement	À souder SW
Packed weight	0,76125kg

Diameter (in inches)	1" (26/34)
Raccordement	BSP
Packed weight	1,1445kg

Diameter (in inches)	1"1/4 (33/42)
Raccordement	NPT
Packed weight	2,0265kg

Diameter (in inches)	1"1/2 (40/49)
Raccordement	À souder BW
Packed weight	2,8875kg

Diameter (in inches)	2" (50/60)
Raccordement	À souder SW
Packed weight	4,41kg

Diameter (in inches)	2"1/2 (66/76)
Raccordement	BSP
Packed weight	8,4kg

Diameter (in inches)	3" (80/90)
Raccordement	NPT
Packed weight	12,6kg

Diameter (in inches)	4" (102/114)
Raccordement	À souder BW
Packed weight	27,3kg

Référence - Désignation	Diameter (in inches)	Raccordement	Packed weight	Prix
79000CCD0BFF008 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/4" (8/13) - BSP	1/4" (8/13)	BSP	0,3465kg	26.88 € tax excl.
79000CCD0NFF008 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/4" (8/13) - NPT	1/4" (8/13)	NPT	0,3465kg	26.88 € tax excl.
79000CCD00BW008 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/4" (8/13) - À souder BW	1/4" (8/13)	À souder BW	0,34125kg	26.88 € tax excl.
79000CCD00SW008 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/4" (8/13) - À souder SW	1/4" (8/13)	À souder SW	0,33075kg	26.88 € tax excl.
79000CCD0NFF010 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/8" (12/17) - NPT	3/8" (12/17)	NPT	0,357kg	26.88 € tax excl.
79000CCD00BW010 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/8" (12/17) - À souder BW	3/8" (12/17)	À souder BW	0,36225kg	26.88 € tax excl.
79000CCD00SW010 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/8" (12/17) - À souder SW	3/8" (12/17)	À souder SW	0,36225kg	26.88 € tax excl.
79000CCD0BFF010 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/8" (12/17) - BSP	3/8" (12/17)	BSP	0,357kg	26.88 € tax excl.
79000CCD00BW015 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/2" (15/21) - À souder BW	1/2" (15/21)	À souder BW	0,54075kg	32.34 € tax excl.
79000CCD00SW015 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/2" (15/21) - À souder SW	1/2" (15/21)	À souder SW	0,546kg	32.34 € tax excl.
79000CCD0BFF015 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/2" (15/21) - BSP	1/2" (15/21)	BSP	0,5355kg	32.34 € tax excl.
79000CCD0NFF015 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1/2" (15/21) - NPT	1/2" (15/21)	NPT	0,5355kg	32.34 € tax excl.
79000CCD00SW020 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/4" (20/27) - À souder SW	3/4" (20/27)	À souder SW	0,76125kg	43.58 € tax excl.
79000CCD0BFF020 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/4" (20/27) - BSP	3/4" (20/27)	BSP	0,82425kg	43.58 € tax excl.
79000CCD0NFF020 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/4" (20/27) - NPT	3/4" (20/27)	NPT	0,82425kg	43.58 € tax excl.
79000CCD00BW020 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3/4" (20/27) - À souder BW	3/4" (20/27)	À souder BW	0,76125kg	43.58 € tax excl.
79000CCD0BFF025 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1" (26/34) - BSP	1" (26/34)	BSP	1,1445kg	55.74 € tax excl.
79000CCD0NFF025 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1" (26/34) - NPT	1" (26/34)	NPT	1,1445kg	55.74 € tax excl.
79000CCD00BW025 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1" (26/34) - À souder BW	1" (26/34)	À souder BW	1,176kg	55.74 € tax excl.
79000CCD00SW025 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1" (26/34) - À souder SW	1" (26/34)	À souder SW	1,1235kg	55.74 € tax excl.
79000CCD0NFF032 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/4 (33/42) - NPT	1"1/4 (33/42)	NPT	2,0265kg	89.8 € tax excl.
79000CCD00BW032 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/4 (33/42) - À souder BW	1"1/4 (33/42)	À souder BW	1,785kg	89.8 € tax excl.
79000CCD00SW032 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/4 (33/42) - À souder SW	1"1/4 (33/42)	À souder SW	1,785kg	89.8 € tax excl.
79000CCD0BFF032 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/4 (33/42) - BSP	1"1/4 (33/42)	BSP	2,0265kg	89.8 € tax excl.
79000CCD00BW040 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/2 (40/49) - À souder BW	1"1/2 (40/49)	À souder BW	2,8875kg	116.77 € tax excl.
79000CCD00SW040 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/2 (40/49) - À souder SW	1"1/2 (40/49)	À souder SW	2,88225kg	116.77 € tax excl.
79000CCD0BFF040 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/2 (40/49) - BSP	1"1/2 (40/49)	BSP	2,31kg	116.77 € tax excl.
79000CCD0NFF040 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 1"1/2 (40/49) - NPT	1"1/2 (40/49)	NPT	2,94kg	116.77 € tax excl.
79000CCD00SW050 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2" (50/60) - À souder SW	2" (50/60)	À souder SW	4,41kg	172.28 € tax excl.
79000CCD0BFF050 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2" (50/60) - BSP	2" (50/60)	BSP	4,4625kg	172.28 € tax excl.
79000CCD0NFF050 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2" (50/60) - NPT	2" (50/60)	NPT	4,4625kg	172.28 € tax excl.
79000CCD00BW050 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2" (50/60) - À souder BW	2" (50/60)	À souder BW	4,49925kg	172.28 € tax excl.
79000CCD0BFF065 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2"1/2 (66/76) - BSP	2"1/2 (66/76)	BSP	8,4kg	323.93 € tax excl.
79000CCD0NFF065 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2"1/2 (66/76) - NPT	2"1/2 (66/76)	NPT	8,4kg	323.93 € tax excl.
79000CCD00BW065 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2"1/2 (66/76) - À souder BW	2"1/2 (66/76)	À souder BW	8,4kg	323.93 € tax excl.
79000CCD00SW065 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 2"1/2 (66/76) - À souder SW	2"1/2 (66/76)	À souder SW	8,4kg	323.93 € tax excl.
79000CCD0NFF080 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3" (80/90) - NPT	3" (80/90)	NPT	12,6kg	482.37 € tax excl.
79000CCD00BW080 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3" (80/90) - À souder BW	3" (80/90)	À souder BW	12,18kg	482.37 € tax excl.
79000CCD00SW080 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3" (80/90) - À souder SW	3" (80/90)	À souder SW	12,18kg	482.37 € tax excl.
79000CCD0BFF080 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 3" (80/90) - BSP	3" (80/90)	BSP	12,705kg	482.37 € tax excl.
79000CCD00BW100 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 4" (102/114) - À souder BW	4" (102/114)	À souder BW	27,3kg	1023.33 € tax excl.
79000CCD00SW100 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 4" (102/114) - À souder SW	4" (102/114)	À souder SW	27,3kg	1023.33 € tax excl.
79000CCD0BFF100 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 4" (102/114) - BSP	4" (102/114)	BSP	27,3kg	1023.33 € tax excl.
79000CCD0NFF100 - RBS 3-piece ball valve, stainless steel ASTM A351 CF8M - 4" (102/114) - NPT	4" (102/114)	NPT	27,3kg	1023.33 € tax excl.
