FF 533 Angled Mini Pressure Reducer without pressure gauge

Réducteurs de pression

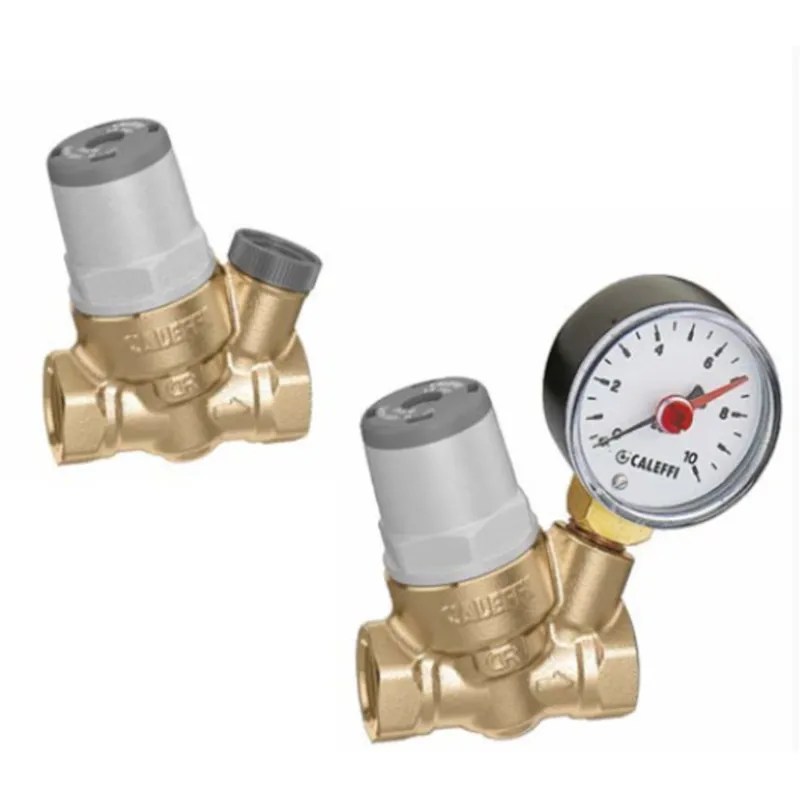

Mini réducteur de pression incliné FF 533
search
  • Mini réducteur de pression incliné FF 533
  • Mini réducteur de pression incliné FF 533
  • REDUCTEURS DE PRESSION R53312
  • Caractéristiques hydrauliques REDUCTEURS DE PRESSION R53312 et R53312M
  • Dimensions REDUCTEURS DE PRESSION R53312 et R53312M
  • REDUCTEURS DE PRESSION R533

Photos non contractuelles

Mini Angled Pressure Regulator Adapter (Female to Female)

Function:

Pressure reducers are devices installed on private water distribution systems to reduce and stabilize municipal water pressure
, which is generally too high.

The 533...H micro-regulator series is designed for special applications where it is necessary to precisely reduce and stabilize the inlet pressure from the public supply at low flow rates. The 533...H series is primarily installed for devices with irregular operation
and large footprints. The performance of this series of micro-pressure reducers complies with the EN 1567 standard, for use with cold water and hot water up to 80°C. Typical applications for these micro-pressure reducers include water, beverage, and coffee dispensing equipment.

Available in a 3/8" version with or without a pressure gauge

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
without pressure gauge
Are you an individual?
Are you a professional?

Log in to find out your discount.

€39.00 Tax included

32.5 € tax excl.

Unité de vente : Pièce
R533MIAS0000010
Type: Without pressure gauge
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information FF 533 Angled Mini Pressure Reducer

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Inlet pressure up to 16 bar
  • Downstream pressure adjustment range: 0.8–4 bar
  • Supplied factory-calibrated to 3 bar
  • Maximum operating temperature: 80°C
  • Filter mesh size: Ø 0.2 mm
  • Compatible fluids: water
  • Removable cartridge pressure reducer with built-in filter

Construction:

  • Dezincification-resistant brass body
  • Spring: steel EN 10270-1
  • Cartridge: PPSG40
  • Diaphragm and seals: EPDM
  • Stainless steel filters EN 10088-2 (AISI304L)

Caractéristiques techniques FF 533 Angled Mini Pressure Reducer

Data sheet

Reference
R533MIAS0000010
Matière
Laiton
Graduation
0-10B
Joint
EPDM
Internes
Filtre inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Équipements
Manomètre
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 53312

Fiche technique Mini réducteur de pression incliné FF 533

Download (267.71KB)

Caractéristiques liées à la version du produit FF 533 Angled Mini Pressure Reducer

Voici la liste des références et poids correspondants aux options séléctionnées.
R533MIAM0000010 - FF 533 Angled Mini Pressure Reducer - With pressure gauge
Type With pressure gauge
Packed weight 0,25515kg
41.08 € tax excl.
Consulter
R533MIAS0000010 - FF 533 Angled Mini Pressure Reducer - Without pressure gauge
Type Without pressure gauge
Packed weight 0,2016kg
32.5 € tax excl.
Consulter
Référence - Désignation Type Packed weight Prix
R533MIAM0000010 - FF 533 Angled Mini Pressure Reducer - With pressure gauge With pressure gauge 0,25515kg 41.08 € tax excl.
R533MIAS0000010 - FF 533 Angled Mini Pressure Reducer - Without pressure gauge Without pressure gauge 0,2016kg 32.5 € tax excl.
