Brass female differential pressure regulator dn 1/2" et 50/300 (mbar)

Régulateurs de pression différentielle
Régulateur de pression différentielle laiton femelle
search
  • Régulateur de pression différentielle laiton femelle

Photo non contractuelle

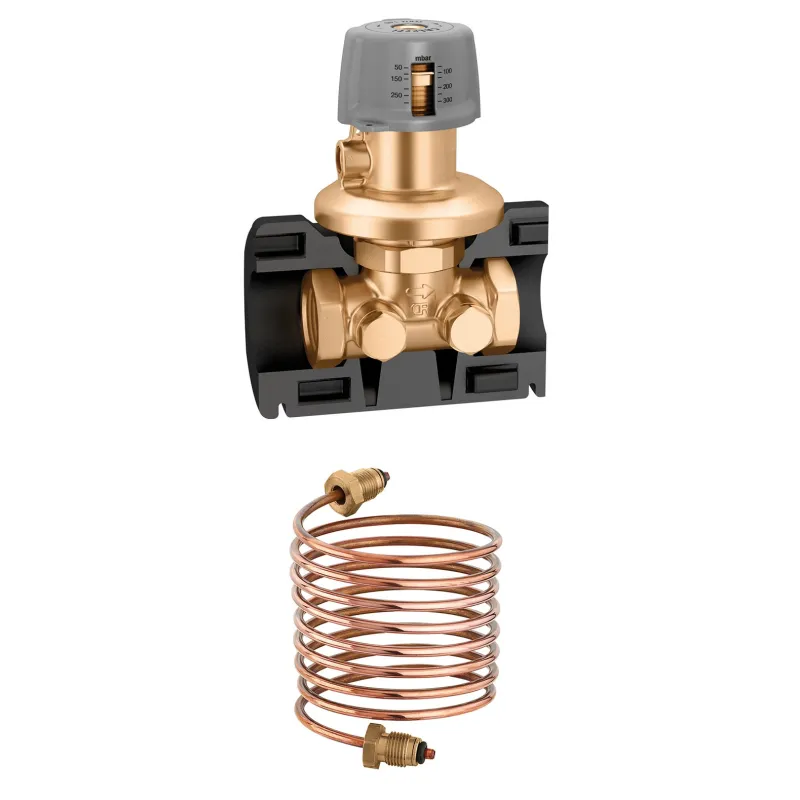

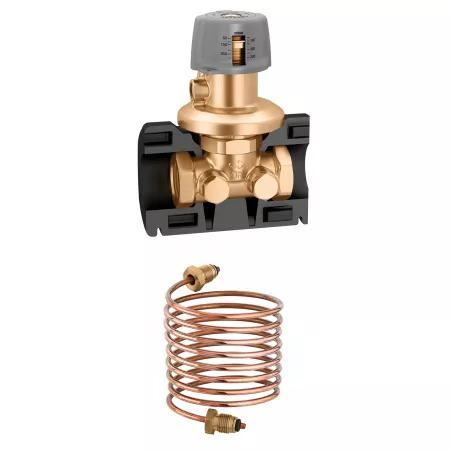

Brass female differential pressure regulator

Function:

The differential pressure regulator maintains the pressure difference between two points in a hydraulic circuit at a preset value.
The balancing valve (shut-off and preset) balances the flow of the heat transfer fluid in the circuit where it is installed. This circuit can also be controlled by the differential pressure regulator.
Adjusting the differential pressure prevents noise and turbulence in variable-flow circuits, but above all ensures proper balancing.

Maximum glycol content: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
dn 1/2" et 50/300 (mbar)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€182.83 Tax included

152.36 € tax excl.

Unité de vente : Pièce
RPDIFL000300F15
DN and (mbar): DN 1/2" et 50/300 (mbar)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brass female differential pressure regulator

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Different types of applications where these devices can be used:

  • Zoned systems / riser systems
  • Systems with condensing boilers
  • District heating systems
  • Variable flow systems with thermostatic or modulating two-way valves.

The controller and preset shut-off valve are supplied with an insulation jacket for optimal thermal insulation of the system.

Technical specifications:

  • Dezincification-resistant brass body, with capillary tube for connection to the return valve
  • Supplied with insulation shell (except 2" without insulation)
  • Max. operating pressure: 16 bar
  • Temperature range: -20 °C / 120 °C
  • Glycol: max. 50%
  • 3 mm capillary tube: L 1.5 m


Operating principle:

The circuit is regulated by the combined action of two devices: the balancing valve and the differential pressure regulator. Through the capillary tube connecting them, they control the flow rate and differential pressure in the relevant circuit zone according to the system’s operating conditions. The balancing valve regulates the design flow rate using a profiled plug.
The differential pressure regulator proportionally restores the preselected differential pressure conditions on the valve based on the current flow rate of the devices, particularly two-way thermostatic valves.
The supply pressure in the connecting capillary (3) acts on the upper surface of the diaphragm (2); the return pressure in the connection internal to the control shaft (4) acts on the lower surface of the diaphragm. The force exerted by the pressure differential on the diaphragm generates a thrust on the shutter shaft (5) and closes the return fluid passage in the circuit zone until the thrust on the diaphragm and the counter-thrust of the counterbalance spring (6) reach a point of equilibrium at the predefined Dp value. This is the pressure differential value that remains constant between the supply and return of the heating circuit even when, in a reverse physical process, the thermostatic valves open to increase the flow rate supplied to the heating elements.

Caractéristiques techniques Brass female differential pressure regulator

Data sheet

Reference
RPDIFL000300F15
Type de vanne
Régulation différentielle
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Équipements
(sauf 2") Capillaire Coque d'isolation
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615397185

Download documentation

FT 140

Fiche technique régulateur de pression différentielle

Download (823.21KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Brass female differential pressure regulator

Voici la liste des références et poids correspondants aux options séléctionnées.
RPDIFL000300F15 - Brass female differential pressure regulator - DN 1/2" et 50/300 (mbar)
DN and (mbar) DN 1/2" et 50/300 (mbar)
Packed weight 0,93135kg
152.36 € tax excl.
Consulter
