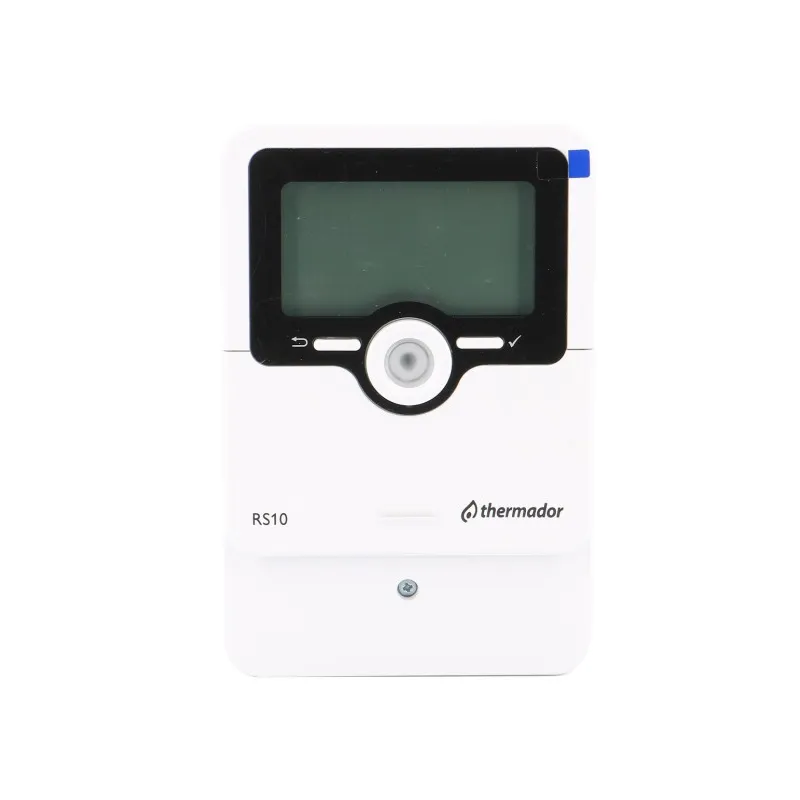

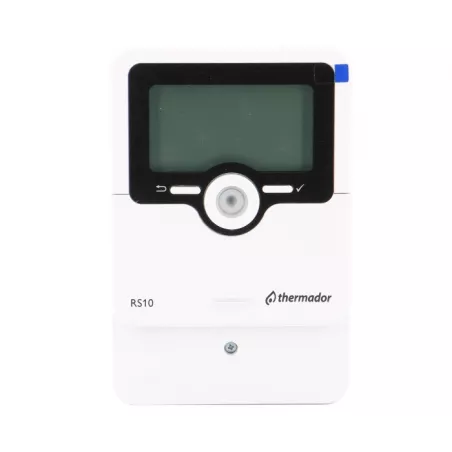

Control for solar thermal systems - RS10

Function:

The RS10 is a solar controller with features optimized for use in small and medium-sized solar heating systems. It also offers 10 pre-configured systems. The RS10 is the first controller of its kind to include automatic function control in compliance with VDI 2169. The controller is also equipped with a potential-free low-voltage relay for auxiliary heating and a pulse input for heat balancing with a V40 flowmeter.

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€313.60 Tax included

261.33 € tax excl.

Unité de vente : Pièce
REGULSOLAIRRS10
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information RS10 solar controller

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical data :

  • Inputs: for 4 temperature sensors PT1000, PT500 or KTY, 1 pulse input V40
  • Outputs: 2 semiconductor relays, 1 potential-free low-voltage relay, 2 PWM outputs
  • PWM frequency: 1000 Hz
  • PWM voltage: 10.5 V
  • Breaking capacity: 1A, 240V (semiconductor relay) 1A, 30V (potential-free relay)
  • Total breaking capacity: 2A, 240V
  • Power supply: 100-240V (50-60Hz)
  • Connection type: X
  • Stand-by: 0.71W
  • Temperature controller class: I
  • Contribution to energy efficiency: 1%
  • Operation: type 1.B.C.Y
  • Impulse voltage: 2.5kV
  • Data interface : VBus®
  • VBus® current output: 60mA
  • Functions: operating hours counter, tube sensor function, thermostat function, speed control and heat balance. Adjustable parameters and options that can be activated at a later date (via menu), balance and diagnostic functions, function monitoring in compliance with VDI 2169
  • Housing: plastic, PC-ABS and PMMA
  • Mounting: wall-mounted, can also be built into a control panel
  • Display / screen: illuminated System-Monitoring display for overall system overview, 16-segment display, 8 symbols and control lamps (Lightwheel®)
  • Operation: 4 buttons and 1 rotary actuator (Lightwheel®)
  • Type of protection: IP 20 / EN 60529
  • Protection class: I
  • Ambient temperature: 0...40 °C
  • Pollution degree: 2
  • Fuse: T2A
  • Maximum altitude: 2000m (MSL)
  • Dimensions: 110x166x47mm

Advantages :

  • 3 relay outputs (including 1 potential-free low-voltage relay)
  • 4 inputs for PT1000, PT500 or KTY temperature sensors
  • 1 V40 pulse input
  • 2 PWM outputs for speed control of high-efficiency pumps
  • 10 basic systems to choose from
  • VDI 2169-compliant automatic function monitoring

Caractéristiques techniques RS10 solar controller

Data sheet

Reference
REGULSOLAIRRS10
Gamme
Solaire
Matière
Plastique
Fluide admissible
Installation solaire
Indice de protection
IP20
Unité de vente
Pièce

Download documentation

FT RS10

Fiche technique RS10

Download (903.26KB)
