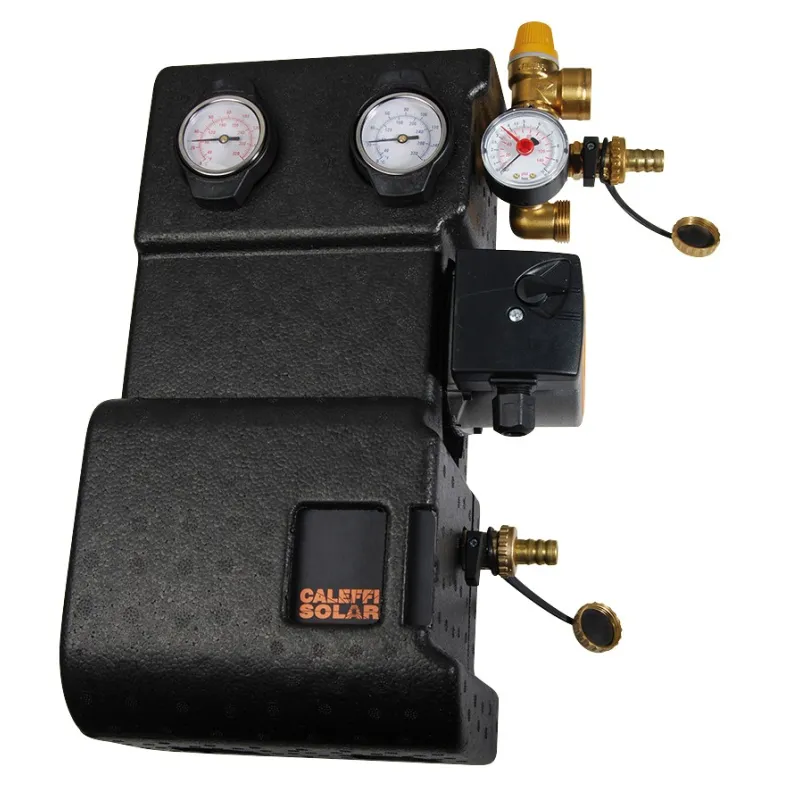

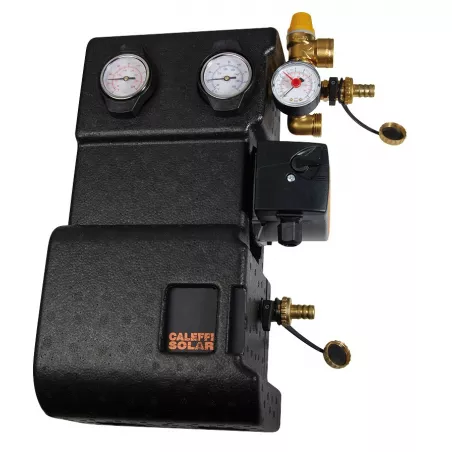

Return transfer unit with insulation shell for solar systems

Function:

Transfer units are used in the primary circuit of solar systems to manage solar energy recovery from the storage tank and ensure the proper operation of this circuit. The circulator mounted on the units is activated by a signal from the controller (ref. RS13). The units are equipped with safety and functional devices for optimal circuit control. They are available with both supply and return connections (GTSD) or with return connection only (GTS).

Maximum glycol content: 50%

Plus de détails
1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€551.54 Tax included

459.62 € tax excl.

Unité de vente : Le kit
GRRETSOLAIRE000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Return transfer unit with insulation jacket for solar systems

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Components: GTS: Return unit with:

  • Solar Circulator
  • Solar safety valve
  • Fill/drain valve
  • Instrument connection with pressure gauge
  • Flow meter
  • Return Thermometer
  • Shut-off valve and check valve
  • 2 nipple fittings
  • Preformed insulation shell

Performance:

  • Maximum glycol percentage: 50%
  • Maximum operating temperature: supply: 160°C; return: 110°C
  • Maximum operating pressure: 10 bar
  • Safety valve temperature range: -30°C / 160°C
  • Safety valve setting: 6 bar
  • Operating temperature range for shut-off and check valve: -30°C / 160°C
  • Flow meter operating temperature range: -10°C / 110°C

Technical specifications:

Shut-off valves:

  • Body: Brass EN 12165 CW617N
  • Check valve: Brass EN 12164 CW617N
  • Thermometer: Steel / Aluminum

Air separator:

  • Brass EN 12165 CW617N

Instrument manifold:

  • Body: Brass EN 12165 CW617N
  • Seals: EPDM

Flow meter:

  • Body: Brass EN 12165 CW617N
  • Seals: EPDM

Insulation shell:

  • Material: PPE
  • Thickness: 20 mm
  • Density: 45 kg/m³
  • Temperature range: -5°C / 120°C
  • Fire rating: Class HBF

Caractéristiques techniques Return transfer unit with insulation jacket for solar systems

Data sheet

Reference
GRRETSOLAIRE000
Matière
Laiton
Joint
EPDM
Pression maximum
6 bar 10 bar
Température minimum
-10°C
Température maximum
110°C 160°C
Fluide admissible
Installation solaire
Équipements
Coque d'isolation
Unité de vente
Le kit
Garantie fabricant
1 an

Specific References

ean13
8016615293678

Download documentation

FT GTS

Fiche technique groupe de transfert avec coque d'isolation pour installation solaire
