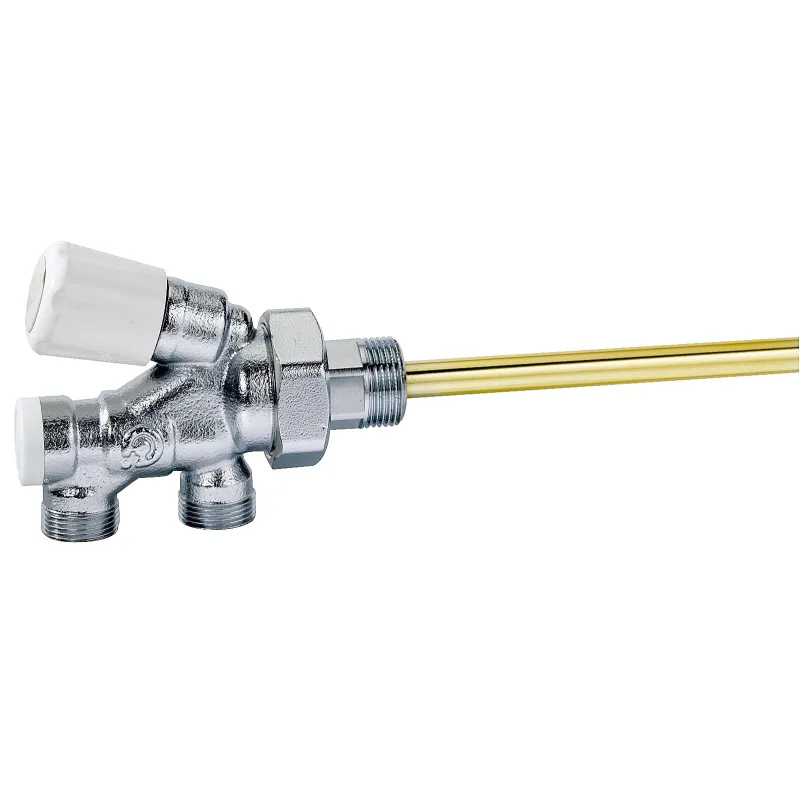

Thermostatic valve with horizontal plunger, M 23 x 1.5 loop connection + manual head

Function:

This valve is supplied in a single-pipe installation version. It can be installed with wall or floor loop connections. Supplied with a manual head, which can be replaced with any Thermador head (see FT TTC instructions).

PLEASE NOTE: Specific loop connections not in: M 23 x 1.5 (see bottom of page or click here)
The adapter ring is required for mounting thermostatic heads.
See bottom of page or click here

Plus de détails
1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€65.87 Tax included

54.89 € tax excl.

Unité de vente : Pièce
RTAPHK002315F15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Horizontal thermostatic diverter valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Chrome-plated brass body
  • Internal components made of brass and stainless steel
  • 30 cm brass probe
  • Supplied with white ABS manual head
  • Resin probe holder
  • Single-pipe or double-pipe. 30 cm probe
  • 23 x 1.5 fittings. Center distance 40 mm
  • Supplied with manual head

Functional characteristics:

  • Maximum pressure: 10 bar
  • Maximum temperature: 200°C
  • Maximum differential pressure (with thermostatic head): 1 bar
  • Connection: 23p. 1.5 diameter 18, center distance 40 mm
  • Total length with thermostatic head: 147 mm
  • For single-pipe version:
    • Flow rate from tap to radiator: 50%
    • With thermostatic head (2°C proportional band): 30%

Installation:

Single-pipe application:
The position of the thermostatic head in line with the body allows the bulb to react accurately to changes in ambient temperature.
There is no mandatory flow direction for loop connections.

Two-pipe application:
For two-pipe installation, it is preferable to supply via the connection closest to the radiator.
To isolate the heating element, close the angle valve and the valve with a 5 mm hex key.

Caractéristiques techniques Horizontal thermostatic diverter valve

Data sheet

Reference
RTAPHK002315F15
Type
Corps thermostatisable à plongeur horizontal
Matière
Laiton chromé
Internes
Inox Laiton
Raccordement
Mâle
Diamètre
M23 x 1,5
Pression maximum
10 bar
Température maximum
200°C
Équipements
Sonde
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615008708

Download documentation

FT TTC

Fiche technique tête thermostatique à bulbe liquide.

Download (2.42MB)

FT RTP15

Fiche technique robinets à plongeur Horizontal thermostatisable

Download (465.79KB)
