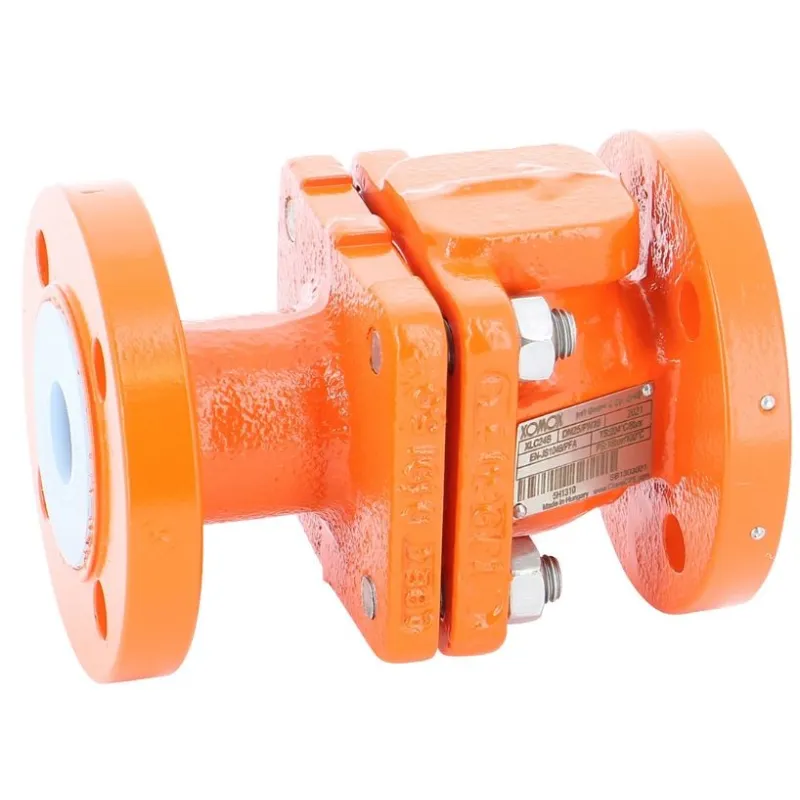

XOMOX Flanged Ball Valve, PFA-Lined Cast Iron Body, PN10/16

Application:

XOMOX PN10/16 flanged ball check valve, PFA-coated cast iron body for chemical and pharmaceutical systems, petrochemical industries.
The body and ball are coated with corrosion-resistant PFA. Horizontal or
vertical installation with upward flow.

  • Chemical and pharmaceutical industries, petrochemical industries
  • Minimum and maximum permissible temperatures Ts: -10°C to +200°C
  • Maximum allowable pressure Ps: 16 bar

Available in:

  • PFA-coated ball check valve with PN10/16 flanges, DN15 to DN100
Plus de détails
Type de raccordement : À brides PN10/16 (EN1092-2)
dn15 ~ 1/2'' ~ ø21.30
XLC0FP0PN160015
Diameter (in inches): DN15 ~ 1/2'' ~ Ø21.30
PRODUCT AVAILABLE EXCLUSIVELY ON QUOTATION
mode_edit Request a quote
Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Ball check valve
  • PFA Teflon® coating
  • Vertical installation with upward or horizontal flow (follow the flow direction indicated by an arrow on the body)
  • PN10/16 flanges
  • Minimum back pressure for sealing: 3 bar
  • Orange RAL2009 polyurethane (PUR) paint, 80–100 μm thick

Construction:

  • Dimensions: DN15 to DN100
  • Connection: PN10/16 RF flanges
  • Maximum pressure: 16 bar
  • Material: EN-GJS-400-18-LT cast iron body with PFA coating

Standards:

  • ISO 9001:2015 certified manufacturer
  • DIRECTIVE 2014/68/EU: CE No. 0575 Risk
    Category III, Module H
  • Certificate 3.1 available upon request
  • Leak-tightness tests in accordance with EN 12266-1, Class C
  • Flanges in accordance with EN 1092-1 PN10/16
  • Spacing in accordance with EN 558 Series 1 (DIN 3202-1 Series F1)

Caractéristiques techniques XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body

Data sheet

Reference
XLC0FP0PN160015
Gamme
XOMOX
Corps
Corps Fonte EN-GJS-400-18-LT revêtu PFA
Type de raccordement
À brides PN10/16 (EN1092-2)
Diamètre
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
-10°C
Température maximum
200°C
Fluide admissible
Industries chimiques Industries pharmaceutiques Industries pétrochimiques
Normes et certifications
EN 12266-1 ISO 9001 : 2015
Normalisation
Directive 2014/68/UE
Poid
En fonction du modèle choisi
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce

Download documentation

FT XLC

Fiche technique Clapet à boule à brides XOMOX corps fonte revêtu PFA

Download (749.48KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body

Voici la liste des références et poids correspondants aux options séléctionnées.
XLC0FP0PN160015 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN15 ~ 1/2'' ~ Ø21.30
Diameter (in inches) DN15 ~ 1/2'' ~ Ø21.30
Packed weight 3,9kg
Consulter
XLC0FP0PN160020 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN20 ~ 3/4'' ~ Ø26.90
Diameter (in inches) DN20 ~ 3/4'' ~ Ø26.90
Packed weight 4,3kg
Consulter
XLC0FP0PN160025 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN25 ~ 1'' ~ Ø33.70
Diameter (in inches) DN25 ~ 1'' ~ Ø33.70
Packed weight 5,3kg
Consulter
XLC0FP0PN160040 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN40 ~ 1''1/2 ~ Ø48.30
Diameter (in inches) DN40 ~ 1''1/2 ~ Ø48.30
Packed weight 9,7kg
Consulter
XLC0FP0PN160050 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN50 ~ 2'' ~ Ø60.30
Diameter (in inches) DN50 ~ 2'' ~ Ø60.30
Packed weight 12,4kg
Consulter
XLC0FP0PN160065 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN65 ~ 2''1/2 ~ Ø73
Diameter (in inches) DN65 ~ 2''1/2 ~ Ø73
Packed weight 15,2kg
Consulter
XLC0FP0PN160080 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN80 ~ 3'' ~ Ø88.90
Diameter (in inches) DN80 ~ 3'' ~ Ø88.90
Packed weight 25,6kg
Consulter
XLC0FP0PN160100 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN100 ~ 4'' ~ Ø114.30
Diameter (in inches) DN100 ~ 4'' ~ Ø114.30
Packed weight 37kg
Consulter
Référence - Désignation Diameter (in inches) Packed weight
XLC0FP0PN160015 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN15 ~ 1/2'' ~ Ø21.30 DN15 ~ 1/2'' ~ Ø21.30 3,9kg
XLC0FP0PN160020 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN20 ~ 3/4'' ~ Ø26.90 DN20 ~ 3/4'' ~ Ø26.90 4,3kg
XLC0FP0PN160025 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN25 ~ 1'' ~ Ø33.70 DN25 ~ 1'' ~ Ø33.70 5,3kg
XLC0FP0PN160040 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN40 ~ 1''1/2 ~ Ø48.30 DN40 ~ 1''1/2 ~ Ø48.30 9,7kg
XLC0FP0PN160050 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN50 ~ 2'' ~ Ø60.30 DN50 ~ 2'' ~ Ø60.30 12,4kg
XLC0FP0PN160065 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN65 ~ 2''1/2 ~ Ø73 DN65 ~ 2''1/2 ~ Ø73 15,2kg
XLC0FP0PN160080 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN80 ~ 3'' ~ Ø88.90 DN80 ~ 3'' ~ Ø88.90 25,6kg
XLC0FP0PN160100 - XOMOX Flanged Ball Valve with PFA-Lined Cast Iron Body - DN100 ~ 4'' ~ Ø114.30 DN100 ~ 4'' ~ Ø114.30 37kg
