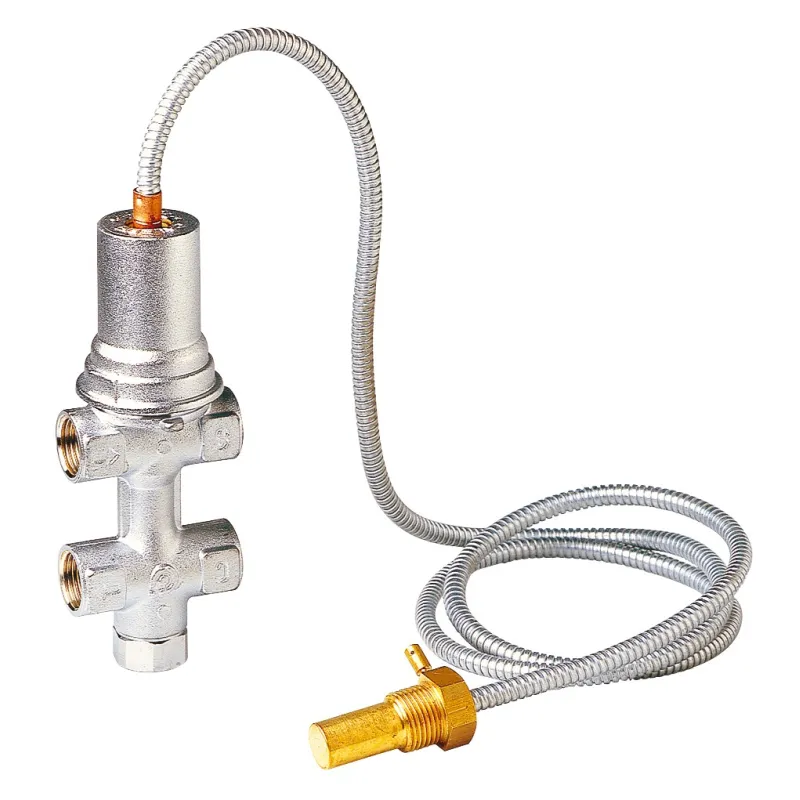

ST544 Thermal Safety Valves

Function:

For solid fuel boilers not equipped with a DHW tank or safety coil.
Thermal safety valves are used to protect solid fuel boilers.
In the event of accidental overheating, the boiler is cooled by opening the valve, which evacuates the hot water. The valve alone
cannot regulate the boiler temperature under any circumstances.

The installation of a heating safety valve remains mandatory.
Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€340.39 Tax included

283.66 € tax excl.

Unité de vente : Pièce
SSTSBLf15000F15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information ST544 Thermal Safety Valves

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
For solid fuel boilers not equipped with a DHW tank or safety coil.

Functional characteristics:

  • Trigger temperature: 100°C (+0°C -5°C)
  • Maximum operating temperature: 110°C
  • Ambient temperature: 6°C minimum
  • Maximum pressure (EF inlet and heating circuit): 6 bar
  • Discharge flow rate under Dp of 1 bar: 1600 l/h
  • Capillary length: 1300 mm

Construction:

  • Chrome-plated stamped brass body
  • Stainless steel spring
  • Ethylene-propylene seals
  • 1/2" female connections

The ST544 valve is used on boilers that are not equipped with a hot water tank or heat exchanger.
When the limit temperature is reached, the valve opens. It discharges the hot water and simultaneously replaces it with an equivalent amount of cold water.

Caractéristiques techniques ST544 Thermal Safety Valves

Data sheet

Reference
SSTSBLf15000F15
Matière
Laiton chromé
Joint
Éthylène-propylène
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Pression maximum
6 bar
Température maximum
110°C
Température de début d'ouverture
100°C
Fluide admissible
Eau
Capacité d'évacuation
Dp de 1bar : 1600l/h
Longueur du caplaire
1300mm
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615015959

Download documentation

FT ST544

Fiche technique soupapes de sûreté thermiques ST544

Download (471.14KB)
