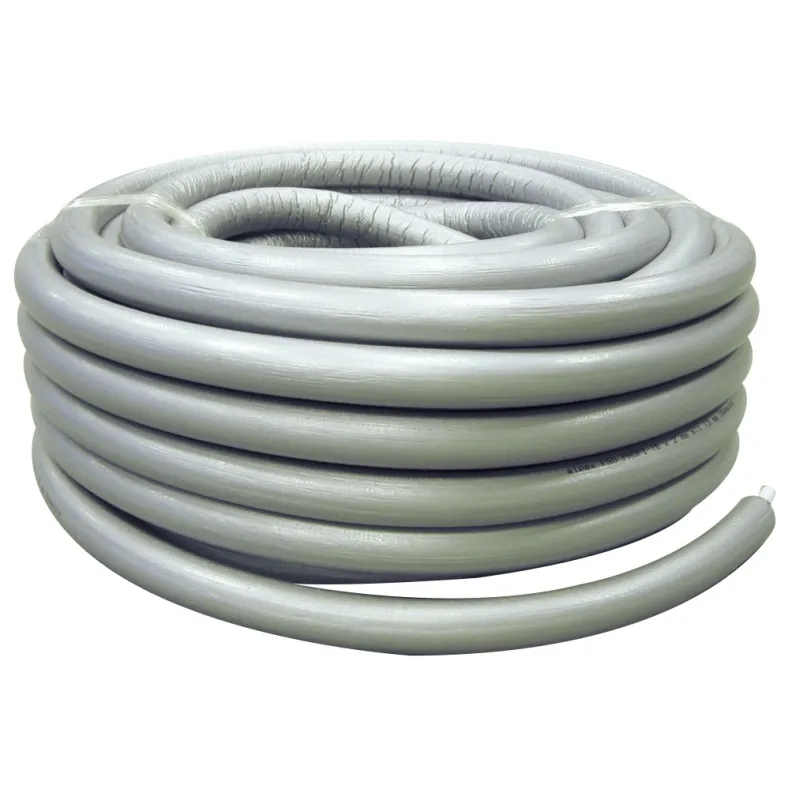

TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil 16 x 2
TURATEC 9mm pre-insulated multilayer pipe, sold in individually packaged coils
Description:
A piping system based on multilayer pipes (PERT/Al/PERT) designed for heating systems, hot and cold domestic water distribution, and closed-loop cold or chilled water circuits. The pipe is compatible with “Alpex Duo” and “Alpex Plus” multilayer fittings.
Turatec is a multilayer pipe with aluminum welded edge-to-edge.
Turatec is compatible with all fittings in the Alpex Duo range:
- For radial crimping, click here
- For clip-on fittings, click here
Frais de livraison : Des frais de livraison supplémentaires de 15 € sont requis et excluent l'option de livraison gratuite pour les paniers pesant moins de 30 kg. Cependant, la livraison gratuite reste possible pour les paniers dont le montant dépasse 500 €.
16 x 2
Are you an individual?
Are you a professional?
Log in to find out your discount.
€175.81
Tax included
146.51 € tax excl.
Unité de vente : Couronne
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
Complément d'information TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Applications:
- Class 2: 6 bar - Domestic hot water supply (and domestic cold water supply at 20 °C / 10 bar)
- Class 4: 6 bar - Low-temperature radiators, underfloor heating,
- Class 5: 6 bar - High-temperature radiators,
- "Chilled water" class: 10 bar
Technical specifications:
- PERT inner tube
- Aluminum core
- PERT outer layer
- Coefficient of thermal expansion 26.10⁻⁶ m/m·K
- Thermal conductivity 0.45 W/m·K
Insulation:
Steinoflex 440 Ultra is a flexible insulated duct made of polyethylene foam coated with a highly resistant protective layer, designed to provide optimal thermal insulation and exceptional mechanical strength.
It is primarily intended for installation in concrete slabs
"ALPEX DUO" system with a 10-year warranty on pipes and fittings
Type F crimping
profile Compatible with TH and B profiles from Ø16 to Ø32 only
CSTB Technical Approval - Application Classes 2, 4, and 5 Metric
marking with a systematic starting point at 0 for each ring.
| Item code | Pipe diameter mm | Length (M) | Number of rings per pallet | Tube color | Insulation thickness |
|---|---|---|---|---|---|
| MCTIC00016X2050 | 16 x 2 | 50 | 10 | white | 9 |
| MCTIC00020X2050 | 20 x 2 | 50 | 8 | white | 9 |
| MCTIC00026X3025 | 26 x 3 | 25 | 10 | white | 9 |
| MCTIC00032X3025 | 32 x 3 | 25 | 8 | white | 9 |
Caractéristiques techniques TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil
Data sheet
- Reference
- MCTIC00016X2050
- Système
- ALPEX DUO Multicouches
- Matière
- Aluminium PERT
- Isolation
- 9 mm
- Type de raccordement
- Sertissage radial À emboîtement
- Diamètre
- En fonction du modèle choisi
- Fluide admissible
- Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
- Normes et certifications
- Avis technique CSTB 14/13-1880
- Unité de vente
- Couronne
- Garantie fabricant
- Système ALPEX DUO garantie 10 ans Tubes + Raccords + Empreintes
Specific References
- ean13
- 4013960326420
Download documentation
Information Isolant tube TURATEC
Information complémentaire Isolant 9mm tube TURATEC
Download (320.02KB)Accessoires et équipements (vendus séparément)
Caractéristiques liées à la version du produit TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil
Voici la liste des références et poids correspondants aux options séléctionnées.MCTIC00016X2050 - TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil - 16 x 2
| Diameter Ø | 16 x 2 |
|---|---|
| Packed weight | 8,19kg |
MCTIC00020X2050 - TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil - 20 x 2
| Diameter Ø | 20 x 2 |
|---|---|
| Packed weight | 10,605kg |
MCTIC00026X3025 - TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil - 26 x 3
| Diameter Ø | 26 x 3 |
|---|---|
| Packed weight | 9,03kg |
MCTIC00032X3025 - TURATEC 9mm pre-insulated multilayer pipe (PERT/ALU/PERT) in a coil - 32 x 3
| Diameter Ø | 32 x 3 |
|---|---|
| Packed weight | 11,13kg |
TURATEC 9mm pre-insulated multilayer pipe, sold in individually packaged coils
Description:
A piping system based on multilayer pipes (PERT/Al/PERT) designed for heating systems, hot and cold domestic water distribution, and closed-loop cold or chilled water circuits. The pipe is compatible with “Alpex Duo” and “Alpex Plus” multilayer fittings.
Turatec is a multilayer pipe with aluminum welded edge-to-edge.
Turatec is compatible with all fittings in the Alpex Duo range:
- For radial crimping, click here
- For clip-on fittings, click here
