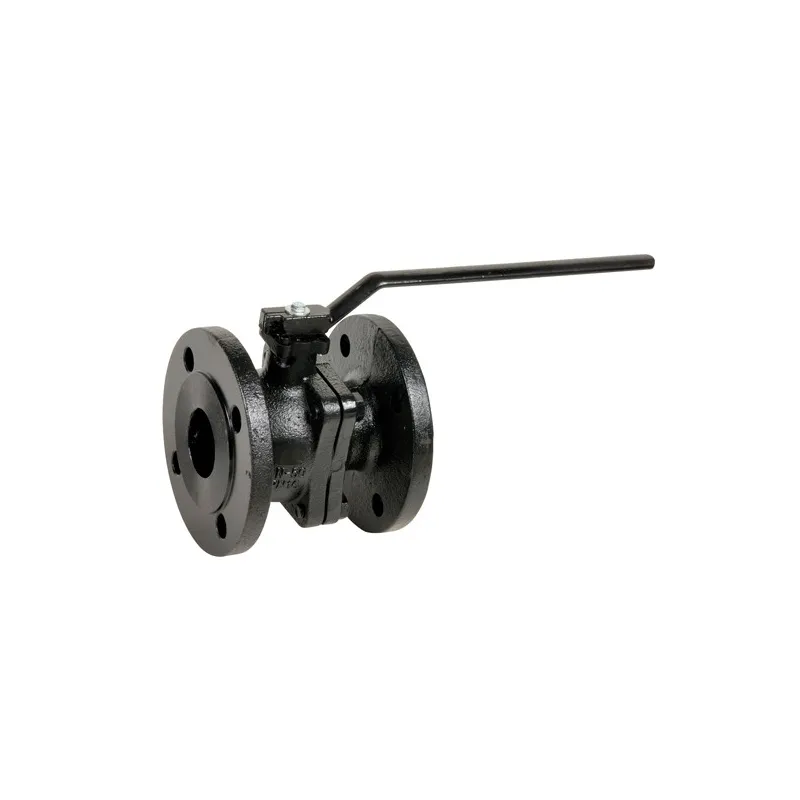

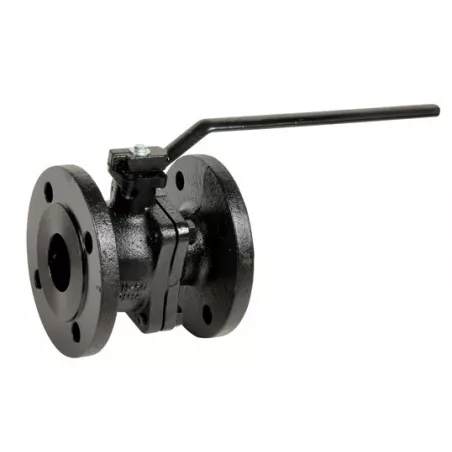

Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing dn 15

Vannes à sphère fonte à brides
Vanne à brides fonte en GJL-250 écartement DIN 3202
search
  • Vanne à brides fonte en GJL-250 écartement DIN 3202
  • NOMENCLATURE 505 507
  • DIMENSIONS VANNE ( en mm ) 507
  • DIMENSIONS BRIDES ( en mm ) 507
  • DIMENSIONS PLATINE ISO ET AXE ( en mm ) 507
  • COURBE PRESSION - TEMPERATURE ( HORS VAPEUR ) 505 507

Photos non contractuelles

Cast iron flanged ball valve with stainless steel ball, GJL-250, DIN 3202 flange spacing, for compatible standard fluids

Ball valve PN16 ~
Cast iron ball valve PN16

Application:

  • Compatible standard fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +200°C
  • Maximum allowable pressure Ps: 16 bar
  • Not suitable for steam
  • Not suitable for compressed air

Available in:

  • Cast iron with R.F. flanges and stainless steel ball, PN10/16 from DN15 to DN150 and PN16 in DN200, DN15 to DN200
Plus de détails
Normes et certifications : CENormes et certifications : ISO 9001 Bureau VERITASNormes et certifications : ATEXType de raccordement : À brides EN1092-1 PN161
dn 15
Are you an individual?
Are you a professional?

Log in to find out your discount.

€67.24 Tax included

56.03 € tax excl.

Unité de vente : Pièce
50700F00PN16015
Flanges: DN 15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Shaft sealing via PTFE ring and FKM O-ring
  • Motorizable (ISO 5211 mounting plate)
  • With PN10/16 flanges up to DN150 and PN16 for DN200 (Flange holes threaded for DN125 and 150)
  • Solid stainless steel ball up to DN 25, hollow from DN 32 to DN 200
  • Black paint, RAL 9004, 5–15 microns thick

Construction:

  • Body: Cast iron EN GJL-250
  • Solid stainless steel ball (ASTM A182 F304) up to DN25 and hollow above DN25
  • PTFE ball seals
  • FKM O-ring
  • Black steel handle
  • ISO 5211 mounting plate
  • Non-ejectable stem
  • Size: DN 15 to DN 200
  • Connection: Flanged R.F. PN10/16
  • Material: Cast iron

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Risk Category I, Module A, from DN65
  • Manufactured in accordance with DIN 3357
  • Design in accordance with DIN 3840
  • Flange in accordance with ISO 5211
  • Spacing in accordance with EN 558 Series 27 (DIN 3202 F18) from DN 15 to 100 and DN 200
  • Spacing in accordance with EN 558 Series 14 from DN 15 to 150
  • R.F. flanges in accordance with EN 1092-2 PN10/16
  • Marking in accordance with EN 19
  • Leak test in accordance with EN 12266-1
  • ATEX Group II Category 2 G/2Dc Zone 1 & 21 Zone 2 & 22 (optional marking)

Nominal Ø 15 20 25 32 40 50 65 80 100 125 150 200/PN16
Nominal diameter 13 17 24 31 38 50 65 80 100 125 150 200
PS 16 16 16 16 16 16 16 16 16 16 16
PN 10/16 10/16 10/16 10/16 10/16 10/16 10/16 10/16 10/16 10/16 10/16 10/16
Track width 115 120 125 130 140 150 170 180 190 200 210 400

Caractéristiques techniques Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing

Data sheet

Reference
50700F00PN16015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Fonte EN GJL-250
Obturateur
Sphère inox ASTM A182 F304
Siège
PTFE
Axe
Inéjectable Joint torique FKM
Platine
Platine ISO 5211
Commande
Couleur noire
Entraxe
En fonction du modèle choisi Écartement DIN 3202
Type de raccordement
À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
200°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ATEX CE ISO 9001 Bureau VERITAS
Normalisation
Directive 97/23/CE Directive 2014/68/UE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781157664

Download documentation

Notice montage VSFL

Notice montage Vanne à brides fonte ou laiton à bride VSFL

Download (73.49KB)

FT 507

Fiche technique Vanne à brides fonte à sphère inox en GJL-250 écartement DIN 3202 507

Download (1018.36KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing

Voici la liste des références et poids correspondants aux options séléctionnées.
50700F00PN16015 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 15
Flanges DN 15
Packed weight 3,675kg
56.03 € tax excl.
Consulter
50700F00PN16020 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 20
Flanges DN 20
Packed weight 4,095kg
62.21 € tax excl.
Consulter
50700F00PN16025 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 25
Flanges DN 25
Packed weight 4,305kg
73.06 € tax excl.
Consulter
50700F00PN16032 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 32
Flanges DN 32
Packed weight 5,25kg
96.1 € tax excl.
Consulter
50700F00PN16040 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 40
Flanges DN 40
Packed weight 6,825kg
112.13 € tax excl.
Consulter
50700F00PN16050 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 50
Flanges DN 50
Packed weight 8,925kg
133.38 € tax excl.
Consulter
50700F00PN16065 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 65
Flanges DN 65
Packed weight 12,6kg
179.34 € tax excl.
Consulter
50700F00PN16080 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 80
Flanges DN 80
Packed weight 15,96kg
247.33 € tax excl.
Consulter
50700F00PN16100 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 100
Flanges DN 100
Packed weight 20,58kg
309.69 € tax excl.
Consulter
50700F00PN16125 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 125
Flanges DN 125
Packed weight 30,45kg
486.95 € tax excl.
Consulter
50700F00PN16150 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 150
Flanges DN 150
Packed weight 39,9kg
726.57 € tax excl.
Consulter
50700F00PN16200 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 200
Flanges DN 200
Packed weight 90,3kg
1176.27 € tax excl.
Consulter
Référence - Désignation Flanges Packed weight Prix
50700F00PN16015 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 15 DN 15 3,675kg 56.03 € tax excl.
50700F00PN16020 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 20 DN 20 4,095kg 62.21 € tax excl.
50700F00PN16025 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 25 DN 25 4,305kg 73.06 € tax excl.
50700F00PN16032 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 32 DN 32 5,25kg 96.1 € tax excl.
50700F00PN16040 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 40 DN 40 6,825kg 112.13 € tax excl.
50700F00PN16050 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 50 DN 50 8,925kg 133.38 € tax excl.
50700F00PN16065 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 65 DN 65 12,6kg 179.34 € tax excl.
50700F00PN16080 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 80 DN 80 15,96kg 247.33 € tax excl.
50700F00PN16100 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 100 DN 100 20,58kg 309.69 € tax excl.
50700F00PN16125 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 125 DN 125 30,45kg 486.95 € tax excl.
50700F00PN16150 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 150 DN 150 39,9kg 726.57 € tax excl.
50700F00PN16200 - Cast iron flanged valve made of GJL-250, DIN 3202 flange spacing - DN 200 DN 200 90,3kg 1176.27 € tax excl.
