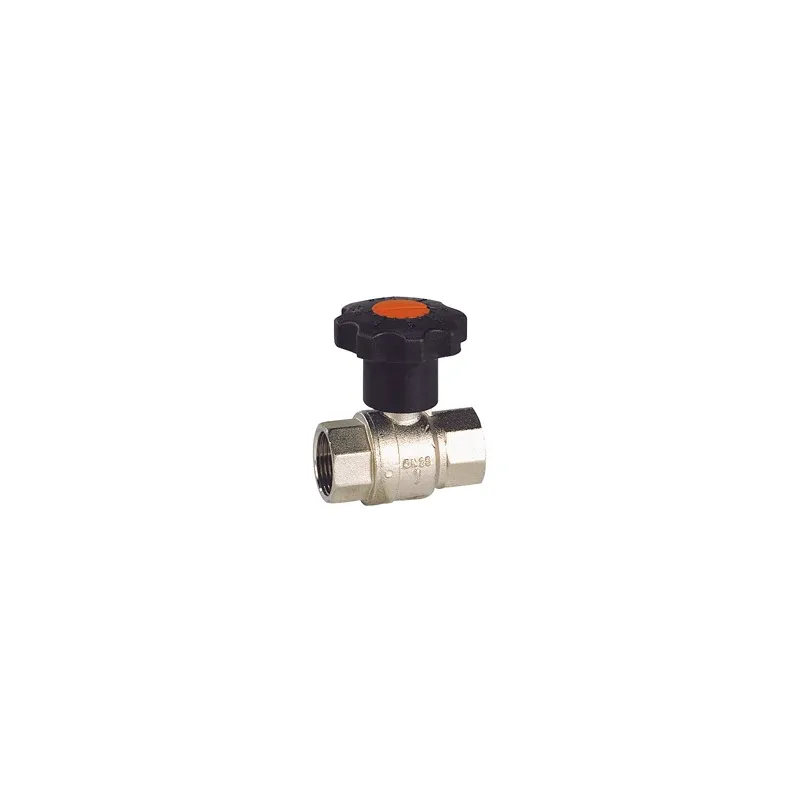

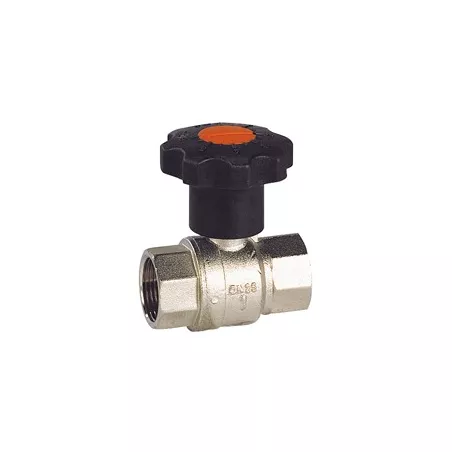

CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer

Brass ball valve

Application:

Compatible common fluids Minimum
permissible temperature Ts: -10 °C Maximum permissible
temperature Ts: +90 °C Maximum permissible
pressure Ps: 40 bar up to DN1", 25 bar above that (see curve in photo)

Available in:

  • Female / Female cylindrical BSP threaded with gear-driven actuator from DN 3/8" to 2½"
Plus de détails
Normes et certifications : CENormes et certifications : CermetNormes et certifications : SincertNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)1
3/8" (12/17)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€59.24 Tax included

49.37 € tax excl.

Unité de vente : Pièce
53100N000BFF010
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Gear-driven mechanism for gradual opening (1 turn to open or close)
  • Full passage
  • Non-ejectable shaft
  • Solid ball
  • Shaft sealed with O-rings

Construction:

  • Body: CW617N-grade brass, nickel-plated
  • Ball: CW617N brass, chrome-plated
  • Ball seals: PTFE
  • O-ring: NBR
  • Size: DN 3/8" to 2-1/2"
  • Connection: Female BSP
  • Material: Brass

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive up to DN1" (Article 3, § 3) Risk
    category I, module A, from DN1"1/4
  • Cylindrical BSP female thread in accordance with ISO 7/1 Rp

Nominal Ø 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2"
Ø bore 10 15 20 25 32 36 46 58
PS 40 40 40 40 25 25 25 25
Track width 60 63 71 83 92 104 124 140

Caractéristiques techniques CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer

Data sheet

Reference
53100N000BFF010
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N nickelé
Obturateur
Bille pleine Joint de sphère PTFE Sphère laiton titré CW617N chromée
Siège
PTFE
Axe
Inéjectable Joint d'axe NBR
Commande
Couleur noire Réducteur (multitour)
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
90°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
CE Cermet ISO 9001 : 2008 (BSI) Sincert
Normalisation
Directive 97/23/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8022326624472

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT 531

Fiche technique Vanne à sphère laiton titré CW617N femelle - femelle avec démultiplicateur 531

Download (1.07MB)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer

Voici la liste des références et poids correspondants aux options séléctionnées.
53100N000BFF010 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,21kg
49.37 € tax excl.
Consulter
53100N000BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,29295kg
53.3 € tax excl.
Consulter
53100N000BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,38325kg
58.44 € tax excl.
Consulter
53100N000BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,5922kg
71.5 € tax excl.
Consulter
53100N000BFF032 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,8673kg
81.84 € tax excl.
Consulter
53100N000BFF040 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,3965kg
143.2 € tax excl.
Consulter
53100N000BFF050 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,247kg
175.47 € tax excl.
Consulter
53100N000BFF065 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 3,9795kg
296.21 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
53100N000BFF010 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 3/8" (12/17) 3/8" (12/17) 0,21kg 49.37 € tax excl.
53100N000BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1/2" (15/21) 1/2" (15/21) 0,29295kg 53.3 € tax excl.
53100N000BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 3/4" (20/27) 3/4" (20/27) 0,38325kg 58.44 € tax excl.
53100N000BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1" (26/34) 1" (26/34) 0,5922kg 71.5 € tax excl.
53100N000BFF032 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1"1/4 (33/42) 1"1/4 (33/42) 0,8673kg 81.84 € tax excl.
53100N000BFF040 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 1"1/2 (40/49) 1"1/2 (40/49) 1,3965kg 143.2 € tax excl.
53100N000BFF050 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 2" (50/60) 2" (50/60) 2,247kg 175.47 € tax excl.
53100N000BFF065 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Gear Reducer - 2"1/2 (66/76) 2"1/2 (66/76) 3,9795kg 296.21 € tax excl.
