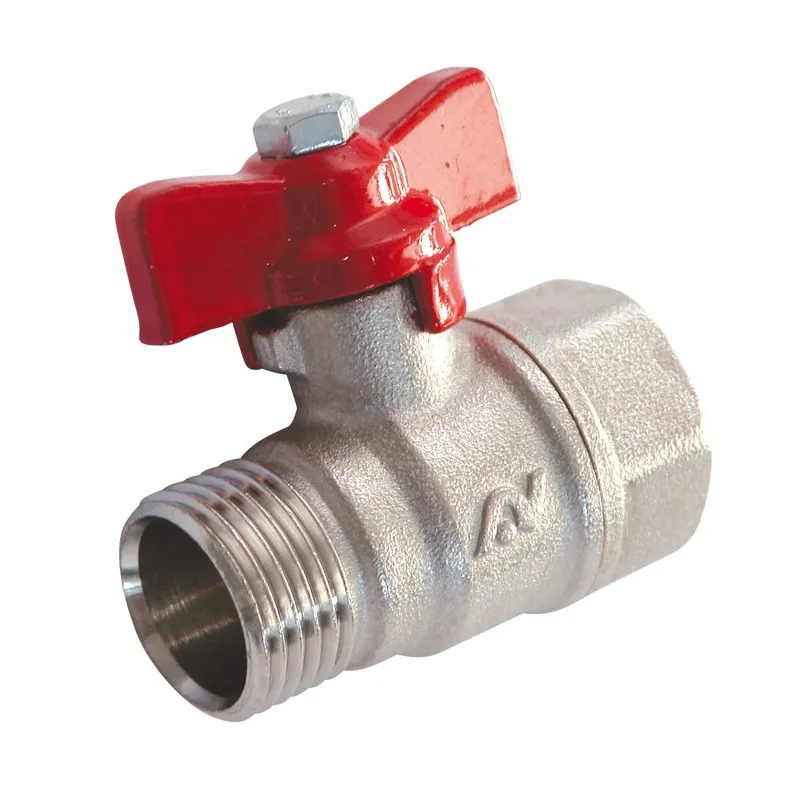

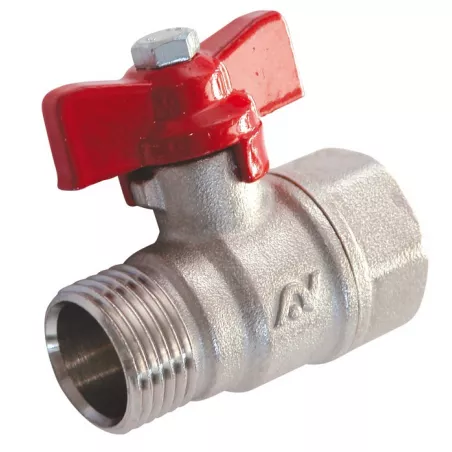

CW617N Titanium-Plated Brass Ball Valve for Spherical-Conical Fittings

Vannes à sphère laiton modèles spéciaux
Vanne à sphère laiton titré CW617N pour raccord sphéro-conique
search
  • Vanne à sphère laiton titré CW617N pour raccord sphéro-conique
  • NOMENCLATURE 675

Photos non contractuelles

CW617N-grade brass ball valve with sphero-conical connection

Brass ball valve

Application:

For compatible standard fluids Minimum
permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +100°C Maximum permissible
pressure PN: 25 bar

CAUTION: Spherical-conical fitting not included

Available in:

  • Male BSP cylindrical / Female BSP cylindrical with butterfly handle DN 1/2"
Plus de détails
Normes et certifications : CermetNormes et certifications : SincertType de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€12.98 Tax included

10.82 € tax excl.

Unité de vente : Pièce
67500N000BMF015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve for Spherical-Conical Fittings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Solid ball
  • For sphero-conical fitting
  • Short butterfly handle
  • PTFE ball seals
  • PTFE gland
  • Red aluminum butterfly handle

Construction:

  • Body: Nickel-plated CW617N brass
  • Ball: Titanium-plated brass (CW617N), chrome-plated
  • Size: DN 1/2"
  • Connection: Male, Female BSP
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/2"
Passage Ø 12
PS 25
Spacing 48

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve for Spherical-Conical Fittings

Data sheet

Reference
67500N000BMF015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton titré CW617N nickelé
Obturateur
Bille pleine Joint de sphère PTFE Sphère laiton titré CW617N chromée
Siège
PTFE
Presse-étoupe
PTFE
Commande
Couleur rouge Poignée papillon
Entraxe
48mm
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
1/2"
Pression de service
25B
Température minimum
-10°C
Température maximum
100°C
Fluide admissible
Eau
Normes et certifications
Cermet Sincert
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8027704000725

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT 675

Fiche technique Vanne à sphère laiton titré CW617N pour raccord sphéro-conique 675

Download (667.09KB)
