VDB Motorized 2-Way Control Valve 1/2" (15/21)

Vannes directionnelles
Vanne de régulation 2 voies motorisée VDB
search
  • Vanne de régulation 2 voies motorisée VDB

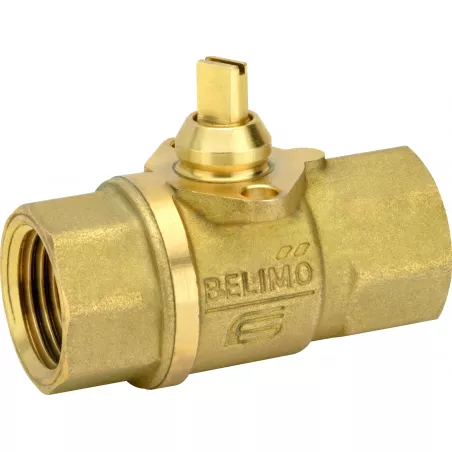

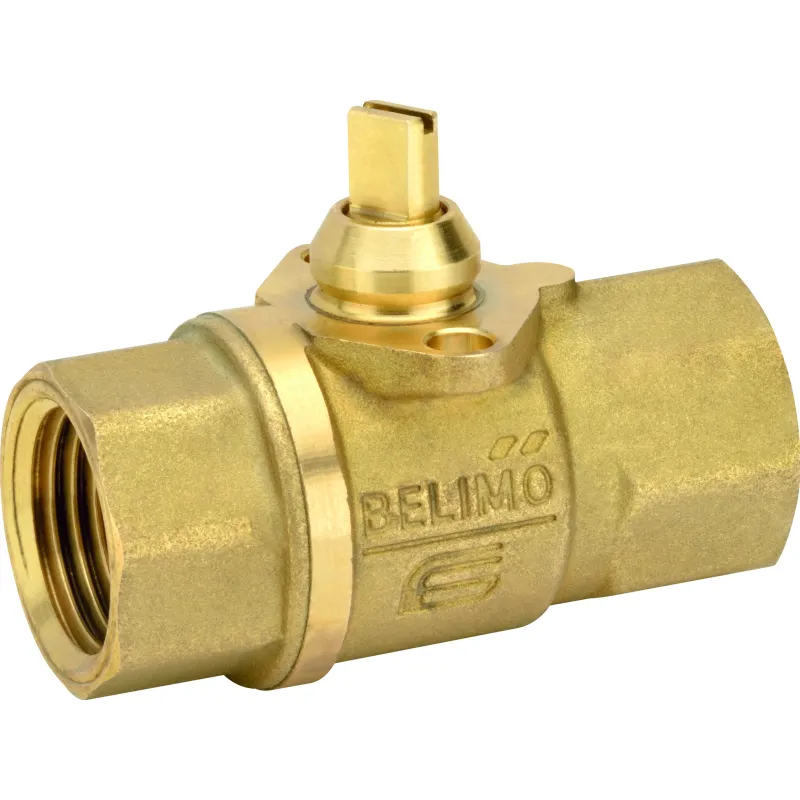

Photo non contractuelle

VDB Motorized 2-Way Control Valve

Function:

The VDB control valve is used to regulate fluid flow in heating, air conditioning, and plumbing systems.

Available in 1/2" or 3/4"

Motors sold separately.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€54.56 Tax included

45.47 € tax excl.

Unité de vente : Pièce
V2VDB0000000015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information VDB Motorized 2-Way Control Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Valves:

  • Fluid: Water, water with glycol (max. 50%)
  • Temperature range: 2 / 90°C
  • Maximum pressure: 16 bar
  • Max. differential pressure: 2.8 bar
  • Rotation angle: 90°
  • Connections: Threaded per ISO 7-1
  • Installation position: Vertical and horizontal (relative to the axis)

Materials:

  • Body: Nickel-plated brass
  • Internal components: Chrome-plated brass
  • Shaft: Brass
  • Stem seal: EPDM O-ring
  • Ball seat: PTFE + EPDM O-ring



Caractéristiques techniques VDB Motorized 2-Way Control Valve

Data sheet

Reference
V2VDB0000000015
Type de vanne
RBS (robinet à boisseau sphérique)
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
2°C
Température maximum
90°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
24V AC/DC 230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IP40
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT VDB2V

Fiche technique moteur 230 V à 3 points pour vanne de régulation

Download (491.42KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit VDB Motorized 2-Way Control Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
V2VDB0000000015 - VDB Motorized 2-Way Control Valve - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,16kg
45.47 € tax excl.
Consulter
V2VDB0000000020 - VDB Motorized 2-Way Control Valve - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,23kg
54.02 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
V2VDB0000000015 - VDB Motorized 2-Way Control Valve - 1/2" (15/21) 1/2" (15/21) 0,16kg 45.47 € tax excl.
V2VDB0000000020 - VDB Motorized 2-Way Control Valve - 3/4" (20/27) 3/4" (20/27) 0,23kg 54.02 € tax excl.
