Actuator for the VDB motorized 2-way control valve 230 v 3 points

Vannes directionnelles
Servomoteur pour vanne de régulation 2 voies motorisée VDB
search
  • Servomoteur pour vanne de régulation 2 voies motorisée VDB

Photo non contractuelle

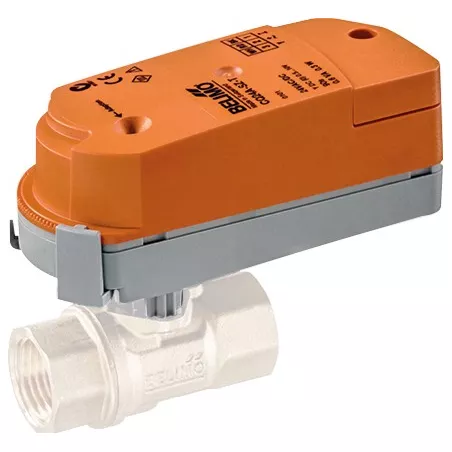

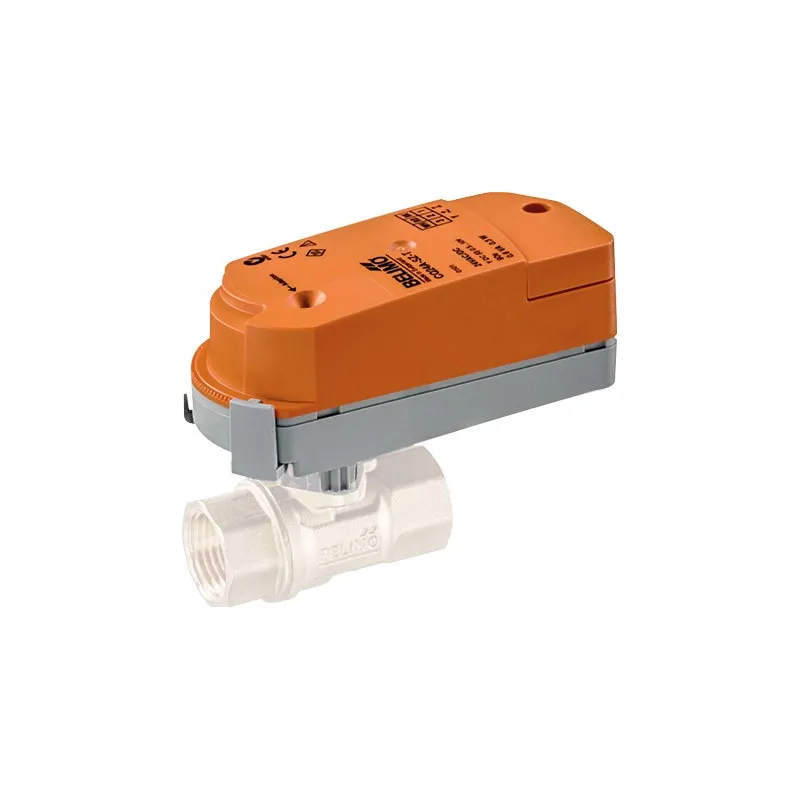

Actuator for VDB motorized 2-way control valve

Function:

The ball valve is adjusted by a servomotor, controlled by an on/off, proportional, or 3-point signal. The servomotor is protected against overloads and does not require limit switches.
Flow through the valve is possible in both directions

Available in 230V 3-point / 230V return-to-zero or 24V proportional 0-10V

Valve sold separately.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
230 v 3 points
Are you an individual?
Are you a professional?

Log in to find out your discount.

€160.76 Tax included

133.97 € tax excl.

Unité de vente : Pièce
SMVDB2303P00000
Servomoteur: 230 V 3 points
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Actuator for the VDB motorized 2-way control valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

AC 230 V Specifications:

  • Rated voltage: AC 230 V
  • Rated frequency: 50-60 Hz
  • Nominal voltage range: AC 207-253 V
  • Power consumption during operation: 1 W / 2.5 W
  • Standby power consumption: 0.7 W / 0.5 W
  • Reactive power: 2 VA / 7 VA
  • Rated torque: 1 N·m
  • Running time: 75 s / 90°
  • Protection rating: IP40
  • Power cable: 1 m
  • Ambient temperature: 5–40°C
  • Weight: 0.21 / 0.20 kg

AC/DC 24 V specifications:

  • Rated voltage: AC/DC 24 V
  • Rated frequency: 50–60 Hz
  • Nominal voltage range: AC 19.2–28.8 V / DC 21.6–28.8 V
  • Power consumption during operation: 0.4 W
  • Power consumption at standby: 0.3 W
  • Apparent power: 0.9 VA
  • Rated torque: 1 N·m
  • Running time: 75 s / 90°
  • Protection rating: IP40
  • Power cable: 1 m
  • Ambient temperature: 5–40°C



Caractéristiques techniques Actuator for the VDB motorized 2-way control valve

Data sheet

Reference
SMVDB2303P00000
Type de raccordement
Á visser BSP (pas du gaz)
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
24V AC/DC 230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IP40
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT VDB2V

Fiche technique moteur 230 V à 3 points pour vanne de régulation

Download (491.42KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Actuator for the VDB motorized 2-way control valve

Voici la liste des références et poids correspondants aux options séléctionnées.
SMVDB2303P00000 - Actuator for the VDB motorized 2-way control valve - 230 V 3 points
Servomoteur 230 V 3 points
Packed weight 0,24kg
133.97 € tax excl.
Consulter
SMVDB230RAZ0000 - Actuator for the VDB motorized 2-way control valve - 230 V avec retour à zero
Servomoteur 230 V avec retour à zero
Packed weight 0,22kg
206.86 € tax excl.
Consulter
SMVDB24PROP0000 - Actuator for the VDB motorized 2-way control valve - 24 V proportionnel 0-10v
Servomoteur 24 V proportionnel 0-10v
Packed weight 0,2kg
121.52 € tax excl.
Consulter
Référence - Désignation Servomoteur Packed weight Prix
SMVDB2303P00000 - Actuator for the VDB motorized 2-way control valve - 230 V 3 points 230 V 3 points 0,24kg 133.97 € tax excl.
SMVDB230RAZ0000 - Actuator for the VDB motorized 2-way control valve - 230 V avec retour à zero 230 V avec retour à zero 0,22kg 206.86 € tax excl.
SMVDB24PROP0000 - Actuator for the VDB motorized 2-way control valve - 24 V proportionnel 0-10v 24 V proportionnel 0-10v 0,2kg 121.52 € tax excl.
