L Series Directional Valve, Spring-Return, 1"

Vannes directionnelles
nne directionnelle série L, retour par ressort
search
  • nne directionnelle série L, retour par ressort

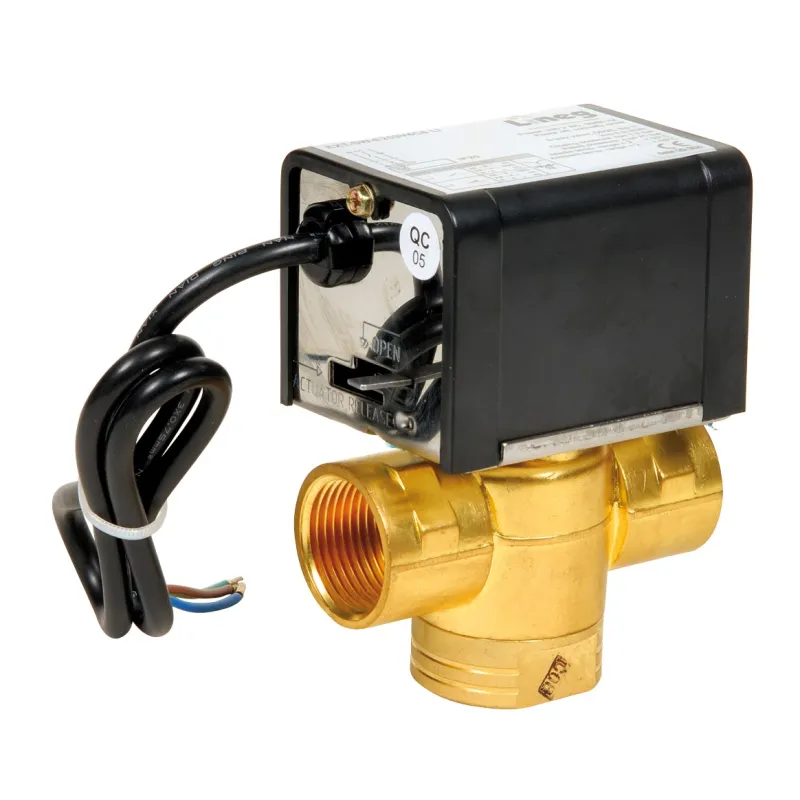

Photo non contractuelle

3-way directional valve, 1", poppet-type closure, spring-return

Function:

The VDL3V diverter valve automatically diverts fluid in 2-wire heating systems

  • 2-wire
  • Full opening in 18 seconds.
  • Closing time: 5 seconds.
  • Directive 2004/108/EC

Maximum glycol content: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€121.37 Tax included

101.14 € tax excl.

Unité de vente : Pièce
V3RNFL000000F25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information L Series Directional Valve, Spring-Return, 1"

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Valve body:

  • Body: 1" FFF brass
  • Seat: NBR
  • Fluids: water, glycol solutions
  • Glycol: 50% max
  • Max. operating pressure: 16 bar
  • Max. differential pressure: 1" 1.3 bar
  • Fluid temperature range: 2° / +93°C
  • Ambient temperature range: 0° / +40°C

Actuator:

  • Synchronous, normally closed
  • Power supply: 230V 50 Hz
  • Power consumption: 6.5W - 7VA
  • IP 20
  • Opening time: 18 s.
  • Closing time: 5 s.
  • Max. ambient temperature: 40°C

Functional characteristics:

  • The actuator keeps the valve in the closed position when power is off
  • Flow direction: AB to A
  • When an opening command is received (thermostat, etc.), the motor opens the valve
  • When the valve is fully open: Flow from AB to B
  • The valve’s closing mechanism is spring-loaded

Caractéristiques techniques L Series Directional Valve, Spring-Return, 1"

Data sheet

Reference
V3RNFL000000F25
Type de vanne
RBS (robinet à boisseau sphérique)
Matière
Laiton
Obturateur
NBR
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FFF (femelle - femelle - femelle)
Diamètre
1"
Pression différentielle
1.3 bar
Pression maximum
16 bar
Température minimum
2°C
Température maximum
93°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
230V monophasé
Fréquence
50Hz
Indice de protection
IP20
Normes et certifications
2004/108 CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830024628

Download documentation

FT VDL3V

Fiche technique vannes directionnelles série L, retour par ressort

Download (644.8KB)
