Standard cylindrical closed expansion tank 105 litres

Vase d'expansion fermé cylindrique standard
Vase expansion fermé cylindrique standard sur socle capacité 80 à 1000 litres
search
  • Vase expansion fermé cylindrique standard sur socle capacité 80 à 1000 litres
  • Vase d'expansion fermé cylindrique standard sur socle capacité 80 à 1000 litres

Photos non contractuelles

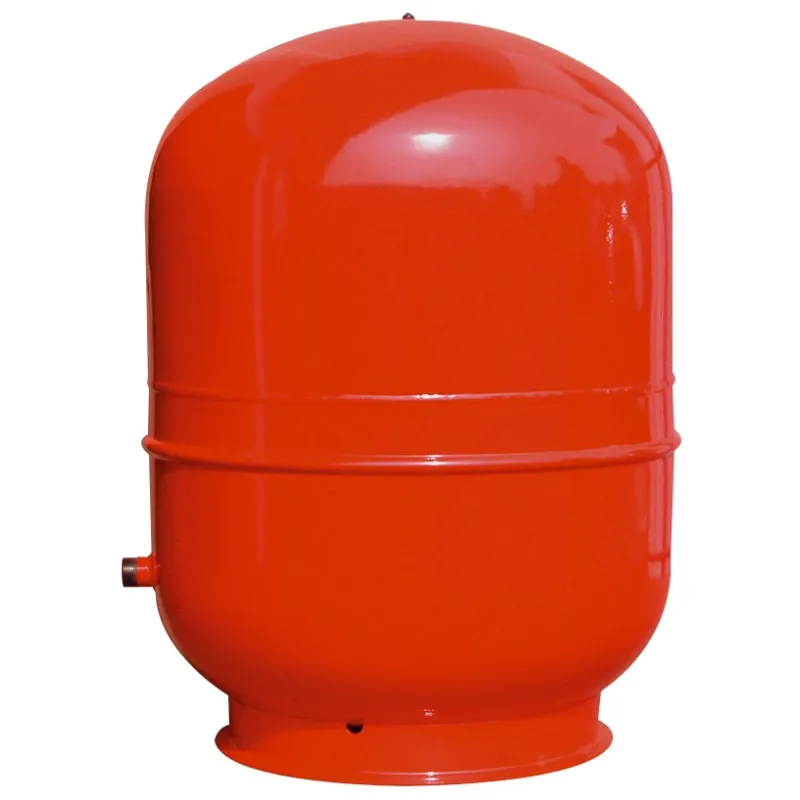

Standard cylindrical closed expansion tank with diaphragm on base, capacity 80 to 1000 liters

Function:

The expansion tank absorbs variations in water volume due to temperature changes in heating and air conditioning systems.

Glycol water 30% maximum.

Plus de détails
Normes et certifications : CEType de raccordement : Á visser BSP (pas du gaz)1
105 litres
Are you an individual?
Are you a professional?

Log in to find out your discount.

€246.52 Tax included

205.43 € tax excl.

Unité de vente : Pièce
VEFCSA105020M20
Capacity in liters: 105 Litres
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Standard cylindrical closed expansion tank

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Working pressure 4 bar (for higher pressures, see CE 10 bar range)
  • Test pressure 6 bar
  • Operating temperature -10°C / +99°C
  • Capacity 80 to 1000 liters depending on model
  • Pre-inflated to 2 bar (80 to 150 liters), 2.5 bar (200 to 800 liters), and 1.5 bar (1000 liters)
  • For heating and air conditioning

Construction:

  • Red lacquered steel body
  • 3/4" male steel connection (80 to 400 liters), 1" (500 to 800 liters) and 1"1/2 (1000 liters)
  • SBR membrane according to DIN 4807 (except 1000 liter model: bladder tank)

Installation:

Bypass connection to the circuit, if possible on the return, without any shut-off device between the circuit and the tank.

1000 L vessel: bladder model, connection on the underside, upper port to be plugged 1/2".

Essential precaution: the installation of a closed expansion tank in a heating or air conditioning system must always be accompanied by the installation of a suitable safety valve. See valves

Item code Volume Pre-inflation Ø
(mm)		 Height
(mm)		 Connection Connection height
(mm)		 Reference
V080 80 l 2 bar 450 608 3/4" M 150 VEFCSA080020M20
V105 105 l. 2 bar 500 665 3/4" M 165 VEFCSA105020M20
V150 150 l. 2 bar 500 897 3/4" M 215 VEFCSA150020M20
V200 200 l 2.5 bar 600 812 3/4" M 225 VEFCSA200025M20
V250 250 l 2.5 bar 630 957 3/4" M 245 VEFCSA250025M20
V300 300 l 2.5 bar 630 1105 3/4" M 245 VEFCSA300025M20
V400 400 l. 2.5 bar 630 1450 3/4" M 245 VEFCSA400025M20
V500 500 l 2.5 bar 750 1340 1" M 290 VEFCSA500025M25
V600 600 l 2.5 bar 750 1555 1" M 290 VEFCSA600025M25
V700 700 l 2.5 bar 750 1755 1" M 290 VEFCSA700025M25
V800 800 l 2.5 bar 750 1855 1" M 290 VEFCSA800025M25
VMIL 1000 l 1.5 bar 850 2100 1"1/2 M 120 VEFCSA00M015M25

Caractéristiques techniques Standard cylindrical closed expansion tank

Data sheet

Reference
VEFCSA105020M20
Matière
Acier
Membrane
SBR
Capacité
En fonction du modèle choisi
Prégonflage
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression maximum
4 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau - Eau glycolée
Normes et certifications
CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8019855000181

Download documentation

Documentation Vase d'expansion fermé

Vase d'expansion fermé cylindrique standard pour chauffage et climatisation

Download (77.67KB)

FT Vases 4L à 80L V004

Fiche technique Vase d'expansion fermé cylindrique standard pour chauffage et climatisation

Download (1015.33KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Standard cylindrical closed expansion tank

Voici la liste des références et poids correspondants aux options séléctionnées.
VEFCSA080020M20 - Standard cylindrical closed expansion tank - 80 Litres
Capacity in liters 80 Litres
Packed weight 19,6kg
186.84 € tax excl.
Consulter
VEFCSA105020M20 - Standard cylindrical closed expansion tank - 105 Litres
Capacity in liters 105 Litres
Packed weight 26,6kg
205.43 € tax excl.
Consulter
VEFCSA150020M20 - Standard cylindrical closed expansion tank - 150 Litres
Capacity in liters 150 Litres
Packed weight 30,8kg
264 € tax excl.
Consulter
VEFCSA200025M20 - Standard cylindrical closed expansion tank - 200 Litres
Capacity in liters 200 Litres
Packed weight 36kg
339.43 € tax excl.
Consulter
VEFCSA250025M20 - Standard cylindrical closed expansion tank - 250 Litres
Capacity in liters 250 Litres
Packed weight 55kg
416.59 € tax excl.
Consulter
VEFCSA300025M20 - Standard cylindrical closed expansion tank - 300 Litres
Capacity in liters 300 Litres
Packed weight 60kg
522.18 € tax excl.
Consulter
VEFCSA400025M20 - Standard cylindrical closed expansion tank - 400 Litres
Capacity in liters 400 Litres
Packed weight 80kg
736.81 € tax excl.
Consulter
VEFCSA500025M25 - Standard cylindrical closed expansion tank - 500 Litres
Capacity in liters 500 Litres
Packed weight 87,5kg
841.23 € tax excl.
Consulter
VEFCSA600025M25 - Standard cylindrical closed expansion tank - 600 Litres
Capacity in liters 600 Litres
Packed weight 114kg
1171.92 € tax excl.
Consulter
VEFCSA700025M25 - Standard cylindrical closed expansion tank - 700 Litres
Capacity in liters 700 Litres
Packed weight 130kg
1421.36 € tax excl.
Consulter
VEFCSA800025M25 - Standard cylindrical closed expansion tank - 800 Litres
Capacity in liters 800 Litres
Packed weight 145kg
1810.06 € tax excl.
Consulter
VEFCSA00M015M25 - Standard cylindrical closed expansion tank - 1000 Litres
Capacity in liters 1000 Litres
Packed weight 220kg
3550.43 € tax excl.
Consulter
Référence - Désignation Capacity in liters Packed weight Prix
VEFCSA080020M20 - Standard cylindrical closed expansion tank - 80 Litres 80 Litres 19,6kg 186.84 € tax excl.
VEFCSA105020M20 - Standard cylindrical closed expansion tank - 105 Litres 105 Litres 26,6kg 205.43 € tax excl.
VEFCSA150020M20 - Standard cylindrical closed expansion tank - 150 Litres 150 Litres 30,8kg 264 € tax excl.
VEFCSA200025M20 - Standard cylindrical closed expansion tank - 200 Litres 200 Litres 36kg 339.43 € tax excl.
VEFCSA250025M20 - Standard cylindrical closed expansion tank - 250 Litres 250 Litres 55kg 416.59 € tax excl.
VEFCSA300025M20 - Standard cylindrical closed expansion tank - 300 Litres 300 Litres 60kg 522.18 € tax excl.
VEFCSA400025M20 - Standard cylindrical closed expansion tank - 400 Litres 400 Litres 80kg 736.81 € tax excl.
VEFCSA500025M25 - Standard cylindrical closed expansion tank - 500 Litres 500 Litres 87,5kg 841.23 € tax excl.
VEFCSA600025M25 - Standard cylindrical closed expansion tank - 600 Litres 600 Litres 114kg 1171.92 € tax excl.
VEFCSA700025M25 - Standard cylindrical closed expansion tank - 700 Litres 700 Litres 130kg 1421.36 € tax excl.
VEFCSA800025M25 - Standard cylindrical closed expansion tank - 800 Litres 800 Litres 145kg 1810.06 € tax excl.
VEFCSA00M015M25 - Standard cylindrical closed expansion tank - 1000 Litres 1000 Litres 220kg 3550.43 € tax excl.
