Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L dn 50 inox 304l

Bride inox
Bride plate à souder PN25/40 (type 01/A) 304L ou 316L
search
  • Bride plate à souder PN25/40 (type 01/A) 304L ou 316L

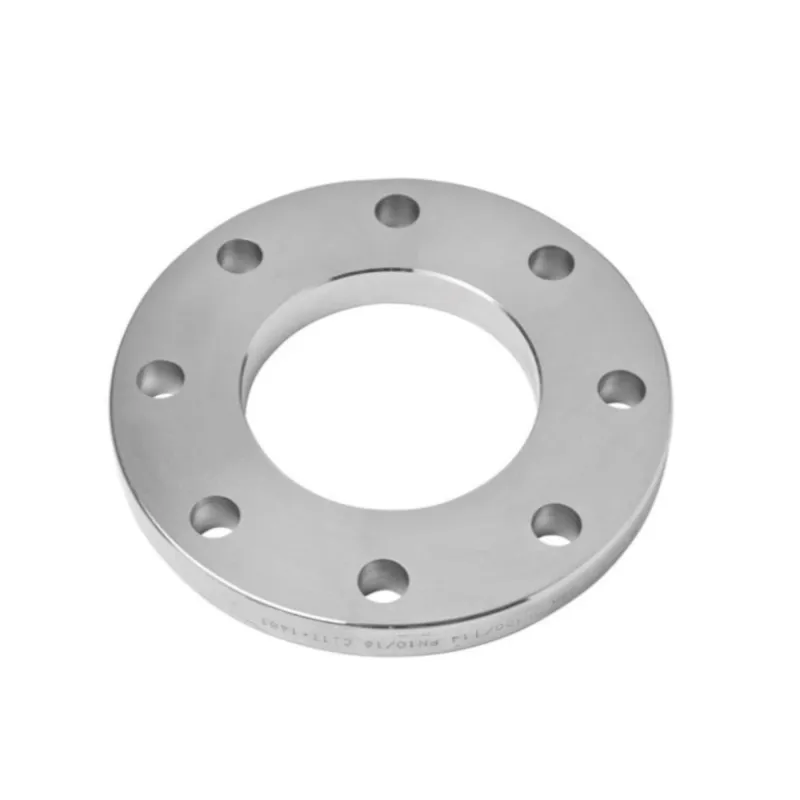

Photo non contractuelle

Flat flange (01) with flat face, PN25/40 (Type A), 304L or 316L, EN 1092-1

Welded flat flange, stainless steel 304L or 316L, Type 01/A, PN25/40, in accordance with EN 1092-1, for transporting fluids or gases. Allows connection of PN25/40 flanged valves (valves, check valves, filters, etc.).

Available from DN50 to DN150

  • PN25/40 from DN50 to DN150

The number of holes in the flange depends on its diameter:

DN50: 4 holes
DN65 to DN150: 8 holes

Please contact us for different diameters or PN ratings

Normes et certifications : Certification ACSNormes et certifications : EN 1092-11
dn 50 inox 304l
Are you an individual?
Are you a professional?

Log in to find out your discount.

€35.06 Tax included

29.22 € tax excl.

Unité de vente : Pièce
BR01A40PN400050
Flanges: DN 50
Matière: Inox 304L
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Caractéristiques techniques Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L

Data sheet

Reference
BR01A40PN400050
Matière
Inox 316
Diamètre
En fonction du modèle choisi
Pression nominale
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température maximum
450°C
Normes et certifications
Certification ACS EN 1092-1
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 2PAS40

Fiche technique bride plate à souder inox 304L

Download (360.16KB)

FT 4PAS40

Fiche technique bride plate à souder inox 316L

Download (359.98KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L

Voici la liste des références et poids correspondants aux options séléctionnées.
BR01A40PN400050 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 50 - Inox 304L
Flanges DN 50
Matière Inox 304L
Packed weight 2,7kg
29.22 € tax excl.
Consulter
BR01A60PN400050 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 50 - Inox 316L
Flanges DN 50
Matière Inox 316L
Packed weight 2,7kg
40.46 € tax excl.
Consulter
BR01A60PN400065 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 65 - Inox 316L
Flanges DN 65
Matière Inox 316L
Packed weight 3,6kg
66.33 € tax excl.
Consulter
BR01A40PN400065 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 65 - Inox 304L
Flanges DN 65
Matière Inox 304L
Packed weight 3,6kg
43 € tax excl.
Consulter
BR01A60PN400080 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 80 - Inox 316L
Flanges DN 80
Matière Inox 316L
Packed weight 4,4kg
68.87 € tax excl.
Consulter
BR01A40PN400080 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 80 - Inox 304L
Flanges DN 80
Matière Inox 304L
Packed weight 4,4kg
61.36 € tax excl.
Consulter
BR01A40PN400100 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 100 - Inox 304L
Flanges DN 100
Matière Inox 304L
Packed weight 5,9kg
78.07 € tax excl.
Consulter
BR01A60PN400100 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 100 - Inox 316L
Flanges DN 100
Matière Inox 316L
Packed weight 5,9kg
99.42 € tax excl.
Consulter
BR01A40PN400125 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 125 - Inox 304L
Flanges DN 125
Matière Inox 304L
Packed weight 8kg
121 € tax excl.
Consulter
BR01A60PN400125 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 125 - Inox 316L
Flanges DN 125
Matière Inox 316L
Packed weight 8kg
166.27 € tax excl.
Consulter
BR01A60PN400150 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 150 - Inox 316L
Flanges DN 150
Matière Inox 316L
Packed weight 10,5kg
245.15 € tax excl.
Consulter
BR01A40PN400150 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 150 - Inox 304L
Flanges DN 150
Matière Inox 304L
Packed weight 10,5kg
136.27 € tax excl.
Consulter
Référence - Désignation Flanges Matière Packed weight Prix
BR01A40PN400050 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 50 - Inox 304L DN 50 Inox 304L 2,7kg 29.22 € tax excl.
BR01A60PN400050 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 50 - Inox 316L DN 50 Inox 316L 2,7kg 40.46 € tax excl.
BR01A60PN400065 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 65 - Inox 316L DN 65 Inox 316L 3,6kg 66.33 € tax excl.
BR01A40PN400065 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 65 - Inox 304L DN 65 Inox 304L 3,6kg 43 € tax excl.
BR01A60PN400080 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 80 - Inox 316L DN 80 Inox 316L 4,4kg 68.87 € tax excl.
BR01A40PN400080 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 80 - Inox 304L DN 80 Inox 304L 4,4kg 61.36 € tax excl.
BR01A40PN400100 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 100 - Inox 304L DN 100 Inox 304L 5,9kg 78.07 € tax excl.
BR01A60PN400100 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 100 - Inox 316L DN 100 Inox 316L 5,9kg 99.42 € tax excl.
BR01A40PN400125 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 125 - Inox 304L DN 125 Inox 304L 8kg 121 € tax excl.
BR01A60PN400125 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 125 - Inox 316L DN 125 Inox 316L 8kg 166.27 € tax excl.
BR01A60PN400150 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 150 - Inox 316L DN 150 Inox 316L 10,5kg 245.15 € tax excl.
BR01A40PN400150 - Flat weld-on flange PN25/40 (Type 01/A) 304L or 316L - DN 150 - Inox 304L DN 150 Inox 304L 10,5kg 136.27 € tax excl.
