End-to-end welded flange PN 16 - Type 11B - P245GH steel 60.3

Name: End-to-end welded flange PN 16 - Type 11B - P245GH steel 60.3
Brand: THERSANE
SKU: BR11BCAPN160050
Price: 13.85 EUR
Availability: InStock

Brides acier

Brides à collerette à souder bout à bout PN 16 - type 11B - P245GH

Photos non contractuelles

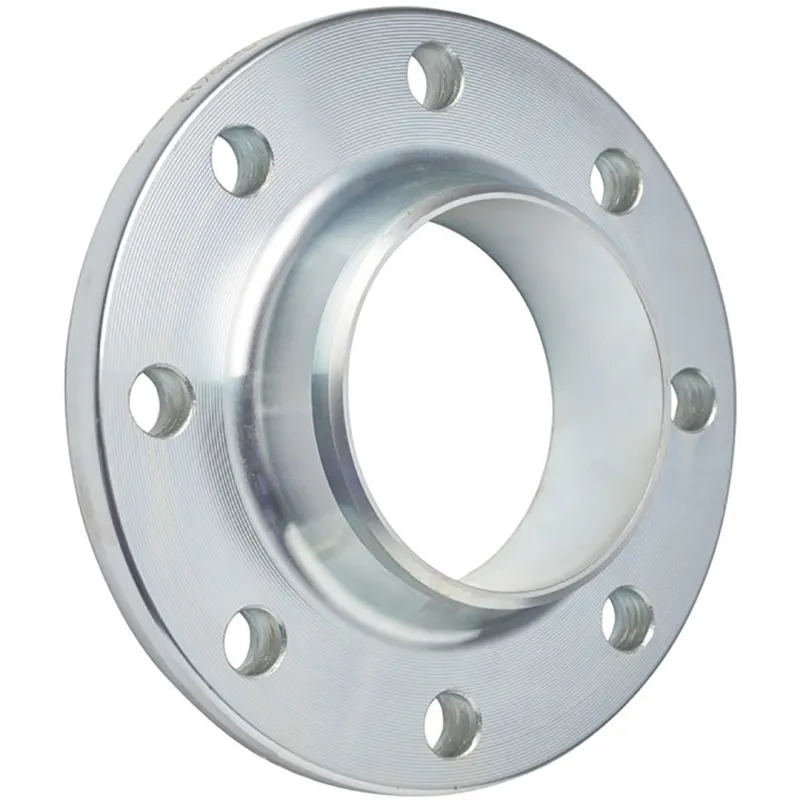

Butt-weld flanges made of P245GH steel, straight bore – raised face, machined

PN 16 - Type 11B

Carbon steel flanges are manufactured in accordance with standard NF EN 1092-1, which took effect on August 20, 2002, and was amended to be simplified in November 2007.

Material: The flanges are made of P245GH steel
Temperature: The flanges must not be used outside the temperature range of -10°C to +100°C
Application: The flanges are particularly recommended for the transport of fluids or gases.
