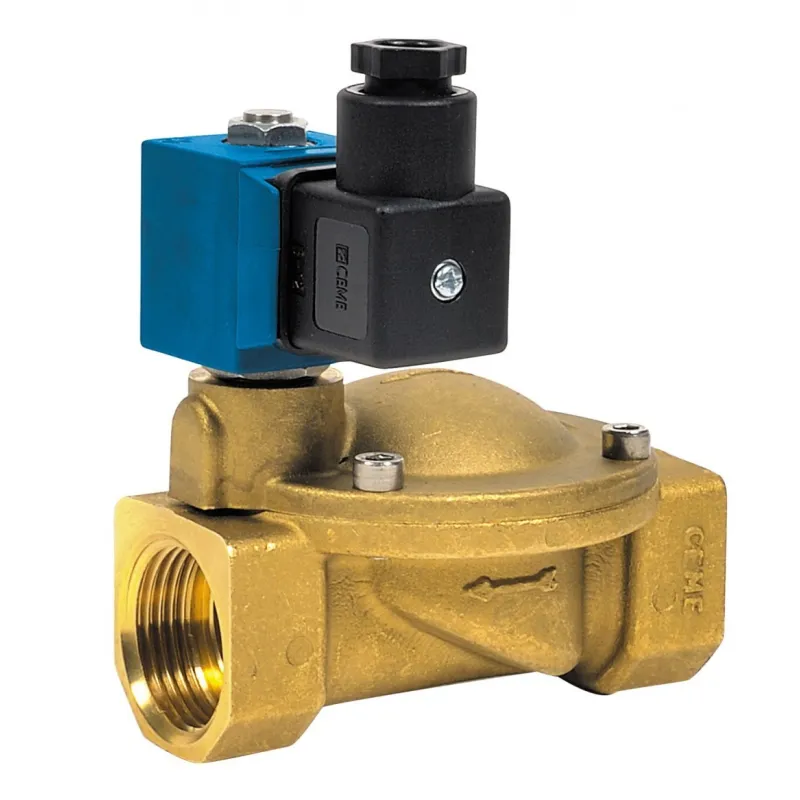

ESM 86 W - ACS-certified normally closed (NC) brass solenoid valve with assisted diaphragm

The ESM 86 W solenoid valve is a normally closed (NC) 2/2-way brass solenoid valve with a spring-assisted diaphragm, specifically designed for drinking water (ACS approved), compatible with all voltages.

The ESM 86 W 1/2", 3/4", and 1" versions are ACS-approved for drinking water

Please be sure to check the voltage

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : CEType de raccordement : Á visser BSP (pas du gaz)1
24v cc 1/2"
Are you an individual?
Are you a professional?

Log in to find out your discount.

€131.00 Tax included

109.17 € tax excl.

Unité de vente : Pièce
ELECTRO00086552
Voltage: 24V cc
Diamètre: 1/2"
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Recommendation:

If the solenoid valve is used in a humid environment or in a refrigerant system, there is a risk of condensation forming between the coil and the core. This can cause damage to the coil. In this case, use the reinforced sealing kit. Please contact us for other alternative solutions.

Caractéristiques techniques ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm

Data sheet

Reference
ELECTRO00086552
Membrane
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
-5°C
Température maximum
110°C
Fluide admissible
eau, l’air, les gaz neutres, etc.
Tension électrique
En fonction du modèle choisi
Indice de protection
IP65
Normes et certifications
CE - Certification ACS
Normalisation
Directive 97/23/CE
Poid
En fonction du modèle choisi
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT ESM86

Fiche technique ESM 86 - Electrovanne laiton à membrane assistée NF

Download (386.26KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm

Voici la liste des références et poids correspondants aux options séléctionnées.
ELECTRO00086553 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V cc - 3/4"
Voltage 24V cc
Diamètre 3/4"
Packed weight 1kg
116.16 € tax excl.
Consulter
ELECTRO00086552 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V cc - 1/2"
Voltage 24V cc
Diamètre 1/2"
Packed weight 0,6kg
109.17 € tax excl.
Consulter
ELECTRO00086513 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 3/4"
Voltage 24V 50Hz
Diamètre 3/4"
Packed weight 1kg
116.16 € tax excl.
Consulter
ELECTRO00086512 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 1/2"
Voltage 24V 50Hz
Diamètre 1/2"
Packed weight 0,6kg
109.17 € tax excl.
Consulter
ELECTRO00086514 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 1"
Voltage 24V 50Hz
Diamètre 1"
Packed weight 1,2kg
116.16 € tax excl.
Consulter
ELECTRO00086504 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 1"
Voltage 230V 50Hz
Diamètre 1"
Packed weight 1,2kg
116.16 € tax excl.
Consulter
ELECTRO00086503 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 3/4"
Voltage 230V 50Hz
Diamètre 3/4"
Packed weight 1kg
116.16 € tax excl.
Consulter
ELECTRO00086502 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 1/2"
Voltage 230V 50Hz
Diamètre 1/2"
Packed weight 0,6kg
109.17 € tax excl.
Consulter
Référence - Désignation Voltage Diamètre Packed weight Prix
ELECTRO00086553 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V cc - 3/4" 24V cc 3/4" 1kg 116.16 € tax excl.
ELECTRO00086552 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V cc - 1/2" 24V cc 1/2" 0,6kg 109.17 € tax excl.
ELECTRO00086513 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 3/4" 24V 50Hz 3/4" 1kg 116.16 € tax excl.
ELECTRO00086512 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 1/2" 24V 50Hz 1/2" 0,6kg 109.17 € tax excl.
ELECTRO00086514 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 24V 50Hz - 1" 24V 50Hz 1" 1,2kg 116.16 € tax excl.
ELECTRO00086504 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 1" 230V 50Hz 1" 1,2kg 116.16 € tax excl.
ELECTRO00086503 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 3/4" 230V 50Hz 3/4" 1kg 116.16 € tax excl.
ELECTRO00086502 - ESM 86 W - ACS-certified NF brass solenoid valve with assisted diaphragm - 230V 50Hz - 1/2" 230V 50Hz 1/2" 0,6kg 109.17 € tax excl.
