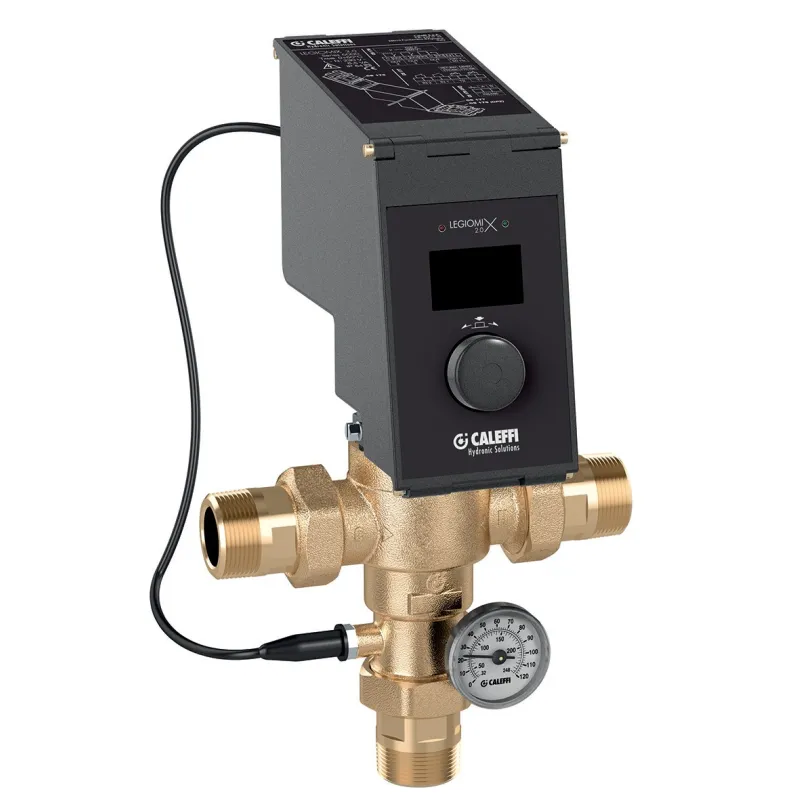

LEGIOMIX 2.0 Temperature Control Unit

Function:
The hybrid electronic mixer combines the functionality of a thermostatic mixer with the efficiency of electronic control in a single unit. The mixer uses the mechanical action of the internal thermostatic element to respond quickly to any changes in temperature, pressure, and flow rate, ensuring a stable mixed water temperature. In addition to this thermostatic control, a motorized actuator adjusts the setting position based on
readings from the mixed water temperature sensor. The electronic controller manages mixed water temperature during normal operation as well as during thermal disinfection phases to prevent bacterial growth.
An archiving system (optional) continuously records the supply and return temperatures, alarms, and operational statuses used for monitoring the system. Various relays enable the management of alarms
and external devices. The controller is designed for remote management via the Modbus communication protocol (optional), which can be operated by a building management system (BMS).

  • Regulator on a three-way valve for the supply temperature of the domestic hot water system.
  • Two-temperature-level mixing valve, thermal shock programming, and data logging

Supplied complete with valve and connectors

Plus de détails
Normes et certifications : Certification ACSFluide admissible : Eau sanitaire et potable1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

-- Tax included

--

Unité de vente : Le kit
LEGIOL200000015
Diameter (in inches): 1/2" (15/21)
Quantity
Product available with different options

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information LEGIOMIX 2.0 DHW Temperature Control Unit

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Ball valve
  • Max. operating pressure 10 bar
  • Max. water temperature 100°C
  • Thermometer reading range 0/80°C

Electronic controller:

  • Controller housing: PA6G30 UV-resistant, black
  • Covers: PA6G30 UV-resistant, black
  • Power supply: 230 V (AC) 50/60 Hz
  • Power consumption: 6.5 VA
  • Control temperature range: 35–65°C
  • Disinfection temperature range: 50–85°C

Valve body construction:

  • Body: dezincification-resistant brass
  • Disc: PPSG40
  • Seal: EPDM
  • Spring: stainless steel EN 10270-3 (AISI 302)
  • Temperature scale: 0–120°C
  • Connections: 1/2" to 2" M union fittings (EN 10 226-2)

Temperature probes:

  • Body material: stainless steel Sensor
    type: NTC Operating
    range: -10 to 125°C
    Resistance: 10,000 Ohms at 25°C Maximum
    distance from the supply or return sensor: 150 m with 2x1 mm² cable / 250 m with 2x1.5 mm² cable

Mixer performance:

  • Accuracy: ± 2°C
  • Maximum operating pressure (static): 10 bar
  • Maximum operating pressure (dynamic): 5 bar
  • Maximum ratio between inlet pressures (C/F or F/C): 2:1
  • Maximum inlet temperature: 90°C

Caractéristiques techniques LEGIOMIX 2.0 DHW Temperature Control Unit

Data sheet

Reference
LEGIOL200000015
Matière
laiton antidézincification
Raccordement
raccord union 1/2" ÷ 2'' M (EN 10 226-2)
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température maximum
90°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Le kit
Garantie fabricant
1 an

Caractéristiques liées à la version du produit LEGIOMIX 2.0 DHW Temperature Control Unit

Voici la liste des références et poids correspondants aux options séléctionnées.
LEGIOL200000015 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 4,5kg
1134.67 € tax excl.
Consulter
LEGIOL200000020 - LEGIOMIX 2.0 DHW Temperature Control Unit - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 4,7kg
1166.52 € tax excl.
Consulter
LEGIOL200000025 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 5,3kg
1275.92 € tax excl.
Consulter
LEGIOL200000032 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 5,5kg
1336.04 € tax excl.
Consulter
LEGIOL200000040 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 6,5kg
1529.74 € tax excl.
Consulter
LEGIOL200000050 - LEGIOMIX 2.0 DHW Temperature Control Unit - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 8,5kg
1667.54 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
LEGIOL200000015 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1/2" (15/21) 1/2" (15/21) 4,5kg --
LEGIOL200000020 - LEGIOMIX 2.0 DHW Temperature Control Unit - 3/4" (20/27) 3/4" (20/27) 4,7kg --
LEGIOL200000025 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1" (26/34) 1" (26/34) 5,3kg --
LEGIOL200000032 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1"1/4 (33/42) 1"1/4 (33/42) 5,5kg --
LEGIOL200000040 - LEGIOMIX 2.0 DHW Temperature Control Unit - 1"1/2 (40/49) 1"1/2 (40/49) 6,5kg --
LEGIOL200000050 - LEGIOMIX 2.0 DHW Temperature Control Unit - 2" (50/60) 2" (50/60) 8,5kg --
