L-mounted thermostatic mixing valve, male 1/2" (15/21) 25 - 45°c

Mitigeurs de proximité collectif et domestique
Mitigeur thermostatique montage-MTL MALE
search
  • Mitigeur thermostatique montage-MTL MALE

Photo non contractuelle

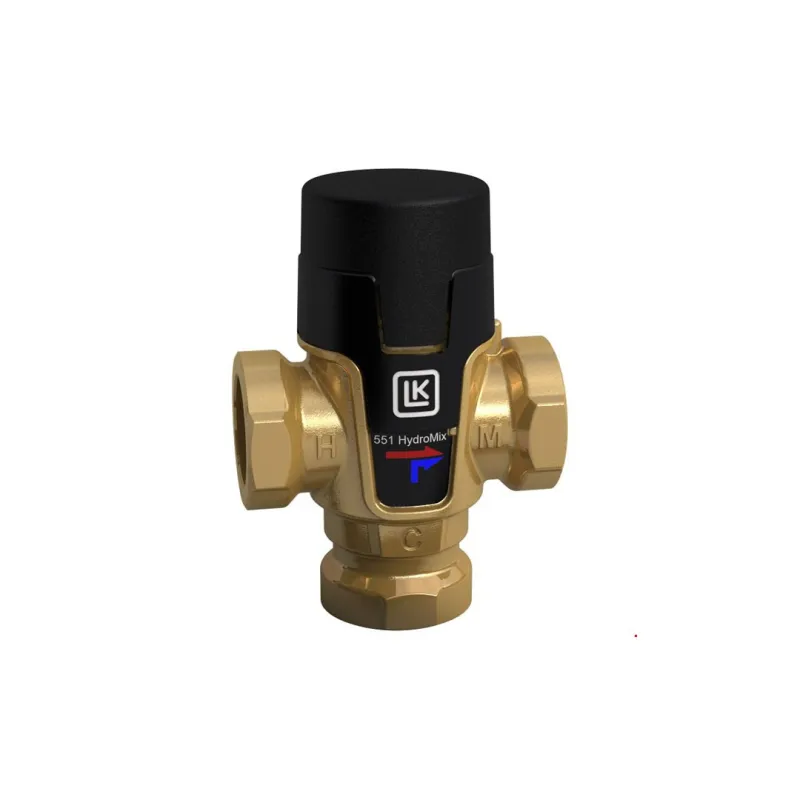

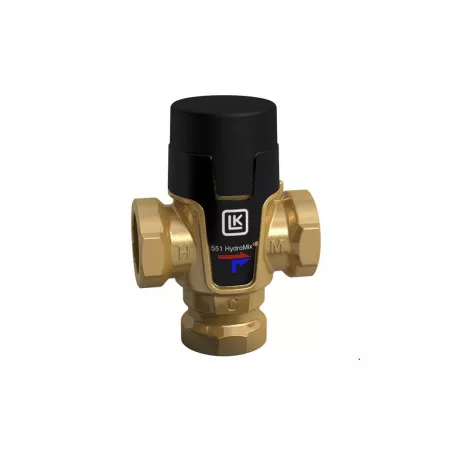

MTL L-mount thermostatic mixing valve male thread

Function

The MTB thermostatic mixing valve regulates the supply of cold and hot water to achieve the desired temperature and enable the distribution of domestic hot water. The valve has an anti-scald function that cuts off the flow of incoming hot water in the event of a cold water supply failure.

Range

L" mounting male thread :
  • MTL152545M: Ø 1/2" - Temperature: 25-45°C
  • MTL153565M: Ø 1/2" - Temperature: 35-65°C
  • MTL202545M: Ø 3/4" - Temperature: 25-45°C
  • MTL203565M: Ø 3/4" - Temperature: 35-65°C
  • MTL262545M: Ø 1" - Temperature: 25-45°C
  • MTL263565M: Ø 1" - Temperature: 35-65°C
Plus de détails
1/2" (15/21) 25 - 45°c
Are you an individual?
Are you a professional?

Log in to find out your discount.

€93.25 Tax included

77.71 € tax excl.

Unité de vente : Pièce
MTL000000152545M
Temperature ranges: 25 - 45°C
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information L-mounted thermostatic mixing valve, male

Technical data :

  • Operating temperature: Min. 5 °C/Max. 95 °C
  • Operating temperature: Min. 25 °C/Max. 45 °C or Min. 35 °C/Max. 55 °C
  • Max. operating pressure: 1.0 MPa (10 bar)
  • Fluid: Standard thread: Water - Glycol max. 50% or Ethanol max. 30% Material, valve body: Water - Glycol max. 50% or Ethanol max. 30
  • Material, valve body: Rp - female thread or G - male thread Brass EN 12165 CW617N, DZR or Brass EN 12165 CW625N
  • Temperature stability: ±3 °C

Caractéristiques techniques L-mounted thermostatic mixing valve, male

Data sheet

Reference
MTL000000152545M
Corps
Laiton
Pression maximum
10 bar
Température minimum
5°C
Température maximum
95°C
Fluide admissible
Eau - Glycol max. 50% ou Ethanol max. 30%
Unité de vente
Pièce

Download documentation

FT MTL

Fiche Technique MTL

Download (3.39MB)

Caractéristiques liées à la version du produit L-mounted thermostatic mixing valve, male

Voici la liste des références et poids correspondants aux options séléctionnées.
MTL00000262545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 1" (26/34)
Temperature ranges 25 - 45°C
Diameter (in inches) 1" (26/34)
Packed weight 0,8kg
80.11 € tax excl.
Consulter
MTL000000152545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 1/2" (15/21)
Temperature ranges 25 - 45°C
Diameter (in inches) 1/2" (15/21)
Packed weight 0,6kg
77.71 € tax excl.
Consulter
MTL00000202545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 3/4" (20/27)
Temperature ranges 25 - 45°C
Diameter (in inches) 3/4" (20/27)
Packed weight 0,8kg
80.11 € tax excl.
Consulter
MTL00000263565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 1" (26/34)
Temperature ranges 35 - 65°C
Diameter (in inches) 1" (26/34)
Packed weight 0,8kg
77.71 € tax excl.
Consulter
MTL00000153565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 1/2" (15/21)
Temperature ranges 35 - 65°C
Diameter (in inches) 1/2" (15/21)
Packed weight 0,6kg
74.13 € tax excl.
Consulter
MTL00000203565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 3/4" (20/27)
Temperature ranges 35 - 65°C
Diameter (in inches) 3/4" (20/27)
Packed weight 0,8kg
75.34 € tax excl.
Consulter
Référence - Désignation Temperature ranges Diameter (in inches) Packed weight Prix
MTL00000262545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 1" (26/34) 25 - 45°C 1" (26/34) 0,8kg 80.11 € tax excl.
MTL000000152545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 1/2" (15/21) 25 - 45°C 1/2" (15/21) 0,6kg 77.71 € tax excl.
MTL00000202545M - L-mounted thermostatic mixing valve, male - 25 - 45°C - 3/4" (20/27) 25 - 45°C 3/4" (20/27) 0,8kg 80.11 € tax excl.
MTL00000263565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 1" (26/34) 35 - 65°C 1" (26/34) 0,8kg 77.71 € tax excl.
MTL00000153565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 1/2" (15/21) 35 - 65°C 1/2" (15/21) 0,6kg 74.13 € tax excl.
MTL00000203565M - L-mounted thermostatic mixing valve, male - 35 - 65°C - 3/4" (20/27) 35 - 65°C 3/4" (20/27) 0,8kg 75.34 € tax excl.
