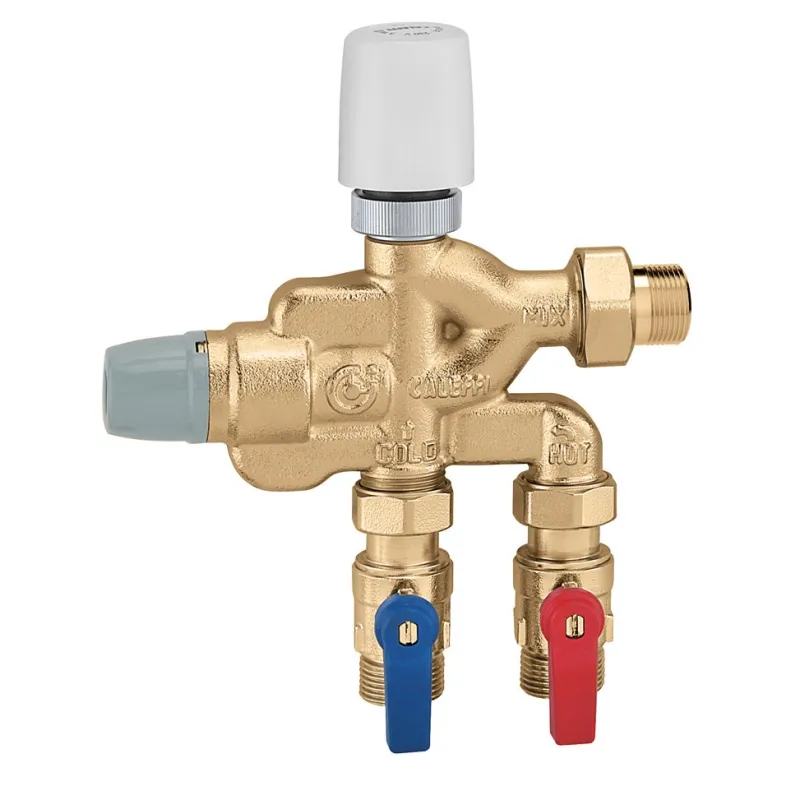

Complete LEGIOFLOW Multifunction Unit

Function:

In domestic hot water distribution systems, the LEGIOFLOW multifunction unit controls the temperature of the mixed water and enables thermal disinfection all the way to the taps.
The LEGIOFLOW unit can be supplied on its own or in a built-in cabinet, complete with its EC/EF distribution manifolds.

Ball valves with integrated filters and check valves at the EC and EF inlets
; branch to the EF circuit

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
only lukewarm water tête électrothermique
Are you an individual?
Are you a professional?

Log in to find out your discount.

€288.25 Tax included

240.21 € tax excl.

Unité de vente : Pièce
GMTMPREEL00MM20
Type: Only lukewarm water
Type de vanne: Tête électrothermique
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Complete LEGIOFLOW Multifunction Unit with Legionella Protection

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

The LEGIOFLOW multifunction unit ensures a safe delivery temperature for domestic hot water, protecting users from the risk of scalding

Features:

  • Thermostatic mixer with anti-scald safety feature, adjustable by a professional
  • Adjustment range: 30–50°C
  • Factory preset to 43°C
  • Accuracy: +/- 2°C
  • Maximum cold water temperature 85°C
  • Maximum pressure ratio
  • EF/EC - EC/EF 2:1
  • Minimum temperature difference between hot and cold water for proper operation 15°C
  • Minimum flow rate for stable operation 6 l/min
  • Complies with standards: NF 079 doc8, EN 1111, EN 1287

Bypass valve:

  • Normally closed
  • Power supply 230 V
  • Current at opening <=1 A
  • Operating current 13 mA
  • Power consumption 3 W
  • IP44 protection rating
  • Double insulation
  • Max. ambient temperature 50°C
  • Opening time for full bypass 210 s. Plastic
  • Power cord 80 cm

Composition and operation:

A high-performance adjustable thermostatic mixer (1) maintains the hot water temperature at the selected value and protects users from any risk of scalding.
A special bypass valve (2) allows for thermal disinfection of the circuit up to the faucets, in accordance with regulations for Legionella control.
(Standard delivery includes a manual valve that can be controlled by an electric head)
The valve can be controlled by an electrothermal head, operated by a lockable programmer (3). The disinfection duration is
adjustable from 1 to 12 minutes.

Part numberConnectionFeaturescomposition
GMTCEL00000MM20 3/4" M with electric head LEGIOFLOW 2 outlets, EF and EM
GMTCML00000MM20 3/4" M with manual head LEGIOFLOW 2 outlets, EF and EM
GMTEEL00000MM20 3/4" M with electric head LEGIOFLOW 1 outlet, EM
GMTEML00000MM20 3/4" M with manual head LEGIOFLOW 1 outlet, EM

Caractéristiques techniques Complete LEGIOFLOW Multifunction Unit with Legionella Protection

Data sheet

Reference
GMTMPREEL00MM20
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
3/4"
Température maximum
85°C
Fluide admissible
Eau sanitaire et potable
Puissance électrique
3 W
Tension électrique
230V monophasé
Indice de protection
IP44
Normes et certifications
Certification ACS EN 1111 EN 1287 NF 079 doc 8
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615359183

Download documentation

Fiche technique 6005

Fiche technique Groupe multifonctions LEGIOFLOW

Download (501.35KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Complete LEGIOFLOW Multifunction Unit with Legionella Protection

Voici la liste des références et poids correspondants aux options séléctionnées.
GMTMPRCML00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Standard - Tête manuelle
Type Standard
Type de vanne Tête manuelle
Packed weight 2,1kg
241.41 € tax excl.
Consulter
GMTMPRCEL00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Standard - Tête électrothermique
Type Standard
Type de vanne Tête électrothermique
Packed weight 2,2365kg
292.79 € tax excl.
Consulter
GMTMPREML00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Only lukewarm water - Tête manuelle
Type Only lukewarm water
Type de vanne Tête manuelle
Packed weight 1,4889kg
199 € tax excl.
Consulter
GMTMPREEL00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Only lukewarm water - Tête électrothermique
Type Only lukewarm water
Type de vanne Tête électrothermique
Packed weight 1,638kg
240.21 € tax excl.
Consulter
Référence - Désignation Type Type de vanne Packed weight Prix
GMTMPRCML00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Standard - Tête manuelle Standard Tête manuelle 2,1kg 241.41 € tax excl.
GMTMPRCEL00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Standard - Tête électrothermique Standard Tête électrothermique 2,2365kg 292.79 € tax excl.
GMTMPREML00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Only lukewarm water - Tête manuelle Only lukewarm water Tête manuelle 1,4889kg 199 € tax excl.
GMTMPREEL00MM20 - Complete LEGIOFLOW Multifunction Unit with Legionella Protection - Only lukewarm water - Tête électrothermique Only lukewarm water Tête électrothermique 1,638kg 240.21 € tax excl.
