CW617N Titanium-Plated Brass Ball Valve, Male-to-Male, Building+ Series, ACS Certified

Brass ball valve

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 30 bar up to DN 1", 20 bar for 1-1/4" and 1-1/2", 16 bar for 2", and 10 bar above

Available in:

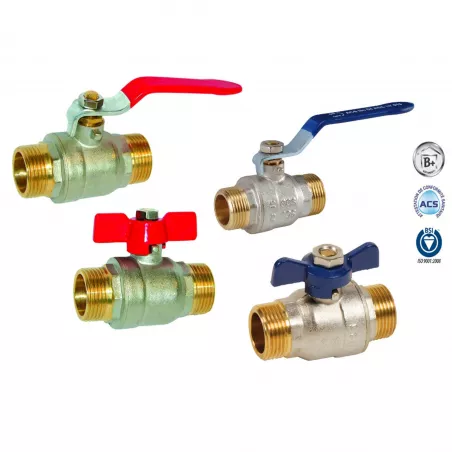

Male/Male with red flat steel handle from 3/8" to 2"
Male/Male with red butterfly handle from 3/8" to 1"
Male/Male with blue flat steel handle from 3/8" to 1"
Male/Male with blue butterfly handle from 3/8" to 1"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1

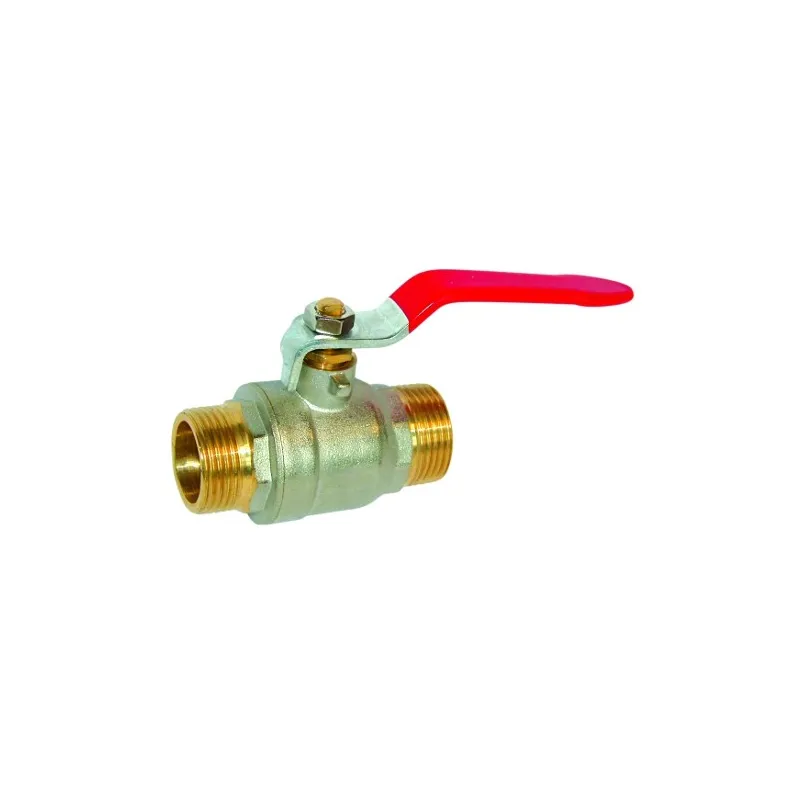

3/8" (12/17) red flat handle
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.87 Tax included

4.06 € tax excl.

Unité de vente : Pièce
58200N000BMM010
Diameter (in inches): 3/8" (12/17)
Handle type: Red flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Solid ball
  • PTFE gland
  • Flat steel handle or aluminum butterfly lever
  • Dacromet-coated handle nut (salt spray protection)
  • Body marked “80S” with ACS, date of manufacture, and logo
  • ACS number on the handle
  • Reversible handle

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: CW614N-grade brass, chrome-plated.
  • PTFE ball seals.
  • PTFE gland.
  • Non-ejectable stem.
  • Reversible handle.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 469
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 3/8" 1/2" 3/4" 1" 1 1/4" 1-1/2" 2"
Passage diameter 10 14.5 19 24.5 31 39.5 49.5
PS 30 30 30 30 20 20 16
Track width 50.5 57 66.5 75 90.5 104 122.5

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified
