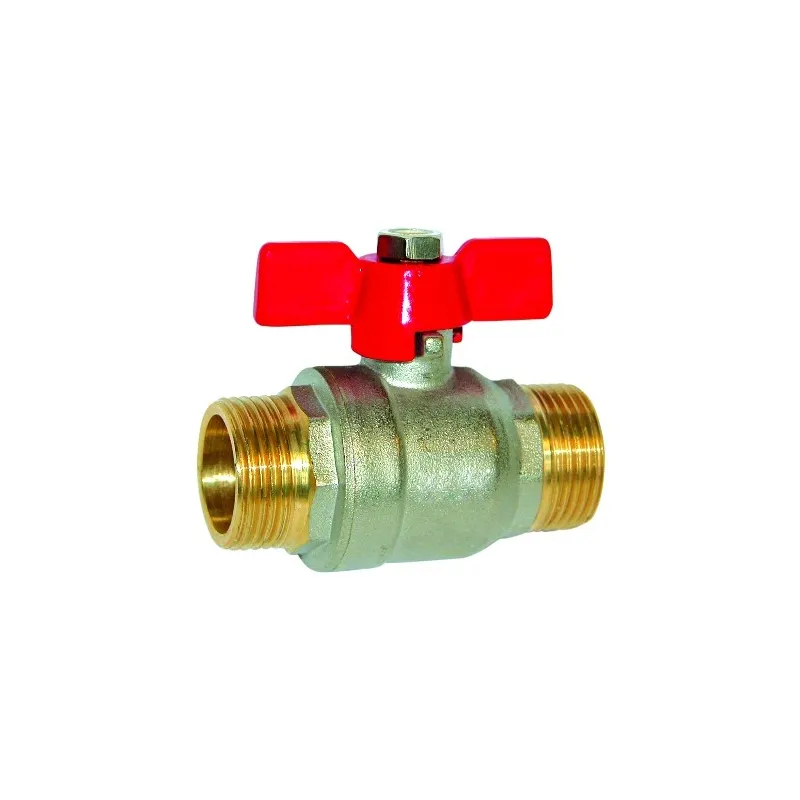

CW617N Titanium-Plated Brass Ball Valve, Male-to-Male, Building+ Series, ACS Certified

Brass ball valve

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 30 bar up to DN 1", 20 bar for 1-1/4" and 1-1/2", 16 bar for 2", and 10 bar above

Available in:
Male/Male with red flat steel handle from 3/8" to 2"
Male/Male with red butterfly handle from 3/8" to 1"
Male/Male with blue flat steel handle from 3/8" to 1"
Male/Male with blue butterfly handle from 3/8" to 1"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/8" (12/17) red butterfly lever
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.87 Tax included

4.06 € tax excl.

Unité de vente : Pièce
58800N000BMM010
Diameter (in inches): 3/8" (12/17)
Handle type: Red butterfly lever
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Solid ball
  • PTFE gland
  • Flat steel handle or aluminum butterfly lever
  • Dacromet-coated handle nut (salt spray protection)
  • Body marked “80S” with ACS, date of manufacture, and logo
  • ACS number on the handle
  • Reversible handle

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: CW614N-grade brass, chrome-plated.
  • PTFE ball seals.
  • PTFE gland.
  • Non-ejectable stem.
  • Reversible handle.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 469
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 3/8" 1/2" 3/4" 1" 1 1/4" 1-1/2" 2"
Passage diameter 10 14.5 19 24.5 31 39.5 49.5
PS 30 30 30 30 20 20 16
Track width 50.5 57 66.5 75 90.5 104 122.5

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified

Data sheet

Reference
58800N000BMM010
Avis de l'équipe
Le plus économique
Système
Bâtiment +
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Joint de sphère PTFE Sphère laiton titré CW614N chromée
Axe
Inéjectable
Presse-étoupe
PTFE
Commande
Couleur rouge En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi Voir tableau
Température minimum
-10°C
Température maximum
120°C
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Certification ACS ISO 9001 : 2008 (BSI)
Normalisation
Directive 97/23/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781100349

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT VSL bâtiment 580-588

Fiche technique Vannes à sphère laiton bâtiment+ 580

Download (2.64MB)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified

Voici la liste des références et poids correspondants aux options séléctionnées.
58200N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Red flat handle
Diameter (in inches) 3/8" (12/17)
Handle type Red flat handle
Packed weight 0,1386kg
4.06 € tax excl.
Consulter
52900N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Blue flat handle
Diameter (in inches) 3/8" (12/17)
Handle type Blue flat handle
Packed weight 0,13545kg
4.06 € tax excl.
Consulter
53600N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Blue butterfly lever
Diameter (in inches) 3/8" (12/17)
Handle type Blue butterfly lever
Packed weight 0,147kg
4.06 € tax excl.
Consulter
58800N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Red butterfly lever
Diameter (in inches) 3/8" (12/17)
Handle type Red butterfly lever
Packed weight 0,11865kg
4.06 € tax excl.
Consulter
58800N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Red butterfly lever
Diameter (in inches) 1/2" (15/21)
Handle type Red butterfly lever
Packed weight 0,1764kg
5.4 € tax excl.
Consulter
52900N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Blue flat handle
Diameter (in inches) 1/2" (15/21)
Handle type Blue flat handle
Packed weight 0,1911kg
5.4 € tax excl.
Consulter
53600N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Blue butterfly lever
Diameter (in inches) 1/2" (15/21)
Handle type Blue butterfly lever
Packed weight 0,1764kg
5.4 € tax excl.
Consulter
58200N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Red flat handle
Diameter (in inches) 1/2" (15/21)
Handle type Red flat handle
Packed weight 0,1995kg
5.85 € tax excl.
Consulter
58200N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Red flat handle
Diameter (in inches) 3/4" (20/27)
Handle type Red flat handle
Packed weight 0,2814kg
8.45 € tax excl.
Consulter
58800N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Red butterfly lever
Diameter (in inches) 3/4" (20/27)
Handle type Red butterfly lever
Packed weight 0,262kg
8.13 € tax excl.
Consulter
52900N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Blue flat handle
Diameter (in inches) 3/4" (20/27)
Handle type Blue flat handle
Packed weight 0,2814kg
8.13 € tax excl.
Consulter
53600N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Blue butterfly lever
Diameter (in inches) 3/4" (20/27)
Handle type Blue butterfly lever
Packed weight 0,252kg
8.13 € tax excl.
Consulter
58200N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Red flat handle
Diameter (in inches) 1" (26/34)
Handle type Red flat handle
Packed weight 0,4137kg
12.58 € tax excl.
Consulter
53600N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Blue butterfly lever
Diameter (in inches) 1" (26/34)
Handle type Blue butterfly lever
Packed weight 0,4557kg
12.58 € tax excl.
Consulter
58800N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Red butterfly lever
Diameter (in inches) 1" (26/34)
Handle type Red butterfly lever
Packed weight 0,3885kg
12.58 € tax excl.
Consulter
52900N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Blue flat handle
Diameter (in inches) 1" (26/34)
Handle type Blue flat handle
Packed weight 0,4137kg
12.58 € tax excl.
Consulter
58200N000BMM032 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1"1/4 (33/42) - Red flat handle
Diameter (in inches) 1"1/4 (33/42)
Handle type Red flat handle
Packed weight 0,6615kg
20.12 € tax excl.
Consulter
58200N000BMM040 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1"1/2 (40/49) - Red flat handle
Diameter (in inches) 1"1/2 (40/49)
Handle type Red flat handle
Packed weight 0,90825kg
29.32 € tax excl.
Consulter
58200N000BMM050 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 2" (50/60) - Red flat handle
Diameter (in inches) 2" (50/60)
Handle type Red flat handle
Packed weight 1,50675kg
48.49 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Handle type Packed weight Prix
58200N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Red flat handle 3/8" (12/17) Red flat handle 0,1386kg 4.06 € tax excl.
52900N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Blue flat handle 3/8" (12/17) Blue flat handle 0,13545kg 4.06 € tax excl.
53600N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Blue butterfly lever 3/8" (12/17) Blue butterfly lever 0,147kg 4.06 € tax excl.
58800N000BMM010 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/8" (12/17) - Red butterfly lever 3/8" (12/17) Red butterfly lever 0,11865kg 4.06 € tax excl.
58800N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Red butterfly lever 1/2" (15/21) Red butterfly lever 0,1764kg 5.4 € tax excl.
52900N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Blue flat handle 1/2" (15/21) Blue flat handle 0,1911kg 5.4 € tax excl.
53600N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Blue butterfly lever 1/2" (15/21) Blue butterfly lever 0,1764kg 5.4 € tax excl.
58200N000BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1/2" (15/21) - Red flat handle 1/2" (15/21) Red flat handle 0,1995kg 5.85 € tax excl.
58200N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Red flat handle 3/4" (20/27) Red flat handle 0,2814kg 8.45 € tax excl.
58800N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Red butterfly lever 3/4" (20/27) Red butterfly lever 0,262kg 8.13 € tax excl.
52900N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Blue flat handle 3/4" (20/27) Blue flat handle 0,2814kg 8.13 € tax excl.
53600N000BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 3/4" (20/27) - Blue butterfly lever 3/4" (20/27) Blue butterfly lever 0,252kg 8.13 € tax excl.
58200N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Red flat handle 1" (26/34) Red flat handle 0,4137kg 12.58 € tax excl.
53600N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Blue butterfly lever 1" (26/34) Blue butterfly lever 0,4557kg 12.58 € tax excl.
58800N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Red butterfly lever 1" (26/34) Red butterfly lever 0,3885kg 12.58 € tax excl.
52900N000BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1" (26/34) - Blue flat handle 1" (26/34) Blue flat handle 0,4137kg 12.58 € tax excl.
58200N000BMM032 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1"1/4 (33/42) - Red flat handle 1"1/4 (33/42) Red flat handle 0,6615kg 20.12 € tax excl.
58200N000BMM040 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 1"1/2 (40/49) - Red flat handle 1"1/2 (40/49) Red flat handle 0,90825kg 29.32 € tax excl.
58200N000BMM050 - CW617N Titanium-Plated Brass Ball Valve, Male-Male, Building+ Series, ACS Certified - 2" (50/60) - Red flat handle 2" (50/60) Red flat handle 1,50675kg 48.49 € tax excl.
