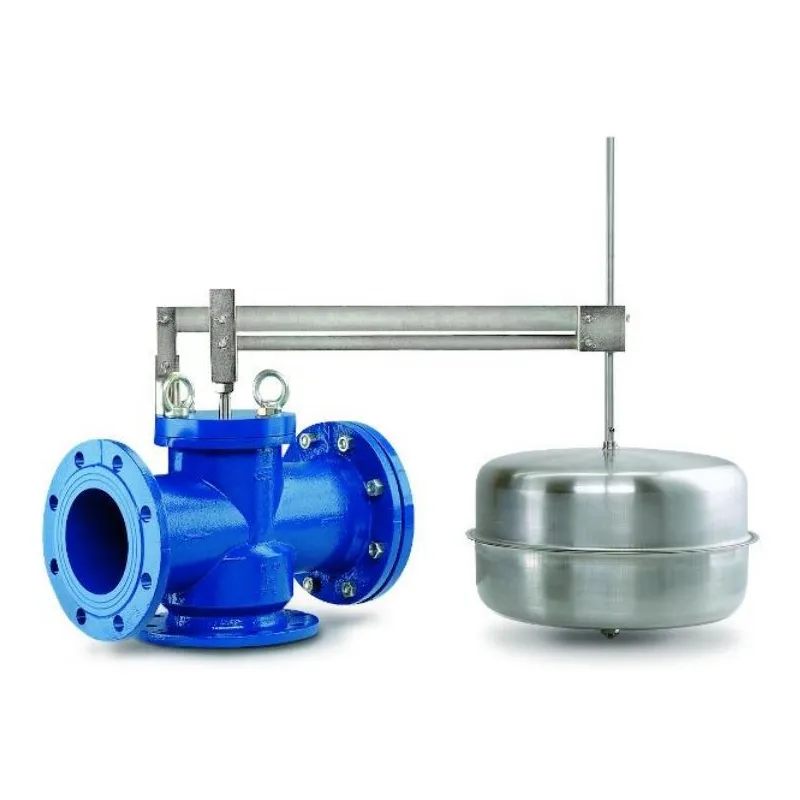

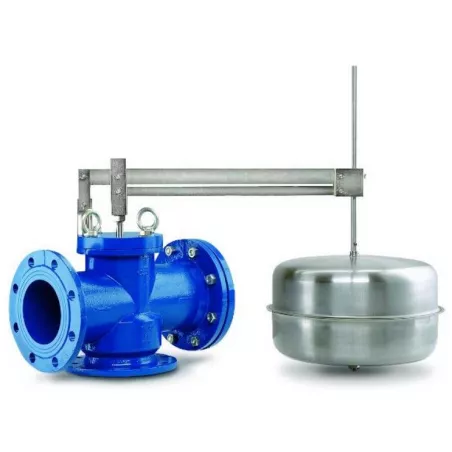

CSA ATHENA Series PN 10/16 Flanged Stainless Steel Float-Type Cast Iron Valve

Application:

Piston-balanced float valve with a single seat that maintains a constant tank level regardless of upstream pressure fluctuations and shuts off the supply when the maximum level is reached. Piston
design ensures excellent reliability and high performance. 3-way
ductile iron body, allowing for either straight or angled outlet.

  • Water supply and distribution networks
  • Minimum and maximum permissible temperature Ts: 0°C to +60°C
  • Maximum pressure Ps: 16 bar
  • During installation, ensure that the float is free to move
  • Do not cut the lever arm

Available in:

  • Cast iron valve with stainless steel float, PN10/16 flanged from DN50 to DN150, PN16 flanged from DN200 to DN300
Plus de détails
Normes et certifications : Certification ACSNormes et certifications : WRASType de raccordement : À brides PN10/16 (EN1092-2)
dn50 ~ 2'' ~ ø60.30
492RF00PN160050
Diameter (in inches): DN50 ~ 2'' ~ Ø60.30
PRODUCT AVAILABLE EXCLUSIVELY ON QUOTATION
mode_edit Request a quote
Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Flanged, balanced cast iron valve with stainless steel float

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Piston with self-cleaning technology (patent pending) to reduce the buildup of contaminants and, consequently, maintenance requirements.
A large stainless steel float is connected to the lever via a stainless steel tube through which a vertical force is applied.
The valve modulates and throttles the flow rate in proportion to consumption; precise control and perfect sealing are guaranteed even at very low pressure levels.
Thanks to the balanced seat, the movement of the plug and its performance are not affected by fluctuations in upstream pressure, and transient phenomena as well as overpressures are prevented.

Features:

  • Adjustable stainless steel compensator
  • Reliable piston design ensuring high performance
  • 3-way GS cast iron body allowing for angled or straight outlet
  • AISI 304 stainless steel float
  • Rotating shaft with a 45° or 90° angle
  • Blue epoxy paint (RAL 5005)

Construction:

  • Dimensions: DN50 to DN300
  • Connection: PN10/16 flanges
  • Max. pressure: 16 bar
  • Material: GJS-450-10 cast iron body and AISI 304 stainless steel float

Standards:

  • ISO 9001:2015 certified manufacturer
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 1, § 2.b)
  • Designed in accordance with EN 1074/5
  • A.C.S. Sanitary Compliance Certificate No. 18 ACC NY 313
  • WRAS Certification for Drinking Water
  • R.F. flanges in accordance with EN 1092-2 PN10/16
  • Spacing in accordance with EN 558 Series 1 (DIN 3202-1 F1) except DN40

Caractéristiques techniques Flanged, balanced cast iron valve with stainless steel float

Data sheet

Reference
492RF00PN160050
Gamme
CSA
Corps
Corps fonte GJS-450-10 et flotteur inox AISI 304
Type de raccordement
À brides PN10/16 (EN1092-2)
Diamètre
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
0°C
Température maximum
60°C
Fluide admissible
Eau réseaux d'adduction et distribution d'eau
Normes et certifications
Certification ACS ISO 9001 : 2015 WRAS
Normalisation
Directive 2014/68/UE
Poid
En fonction du modèle choisi
Unité de vente
Pièce

Download documentation

FT 492

Fiche technique Robinet fonte à flotteur inox équilibre

Download (659.36KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Flanged, balanced cast iron valve with stainless steel float

Voici la liste des références et poids correspondants aux options séléctionnées.
492RF00PN160050 - Flanged, balanced cast iron valve with stainless steel float - DN50 ~ 2'' ~ Ø60.30
Diameter (in inches) DN50 ~ 2'' ~ Ø60.30
Packed weight 22kg
Consulter
492RF00PN160065 - Flanged, balanced cast iron valve with stainless steel float - DN65 ~ 2''1/2 ~ Ø76.10
Diameter (in inches) DN65 ~ 2''1/2 ~ Ø76.10
Packed weight 27kg
Consulter
492RF00PN160080 - Flanged, balanced cast iron valve with stainless steel float - DN80 ~ 3'' ~ Ø88.90
Diameter (in inches) DN80 ~ 3'' ~ Ø88.90
Packed weight 34kg
Consulter
492RF00PN160100 - Flanged, balanced cast iron valve with stainless steel float - DN100 ~ 4'' ~ Ø114.30
Diameter (in inches) DN100 ~ 4'' ~ Ø114.30
Packed weight 42kg
Consulter
492RF00PN160125 - Flanged, balanced cast iron valve with stainless steel float - DN125 ~ 5'' ~ Ø139.70
Diameter (in inches) DN125 ~ 5'' ~ Ø139.70
Packed weight 50kg
Consulter
492RF00PN160150 - Flanged, balanced cast iron valve with stainless steel float - DN150 ~ 6'' ~ Ø168.30
Diameter (in inches) DN150 ~ 6'' ~ Ø168.30
Packed weight 80kg
Consulter
492RF00PN160200 - Flanged, balanced cast iron valve with stainless steel float - DN200 ~ 8'' ~ Ø219.10
Diameter (in inches) DN200 ~ 8'' ~ Ø219.10
Packed weight 119kg
Consulter
492RF00PN160250 - Flanged, balanced cast iron valve with stainless steel float - DN250 ~ 10'' ~ Ø273.10
Diameter (in inches) DN250 ~ 10'' ~ Ø273.10
Packed weight 216kg
Consulter
492RF00PN160300 - Flanged, balanced cast iron valve with stainless steel float - DN300 ~ 12'' ~ Ø323.90
Diameter (in inches) DN300 ~ 12'' ~ Ø323.90
Packed weight 252kg
Consulter
Référence - Désignation Diameter (in inches) Packed weight
492RF00PN160050 - Flanged, balanced cast iron valve with stainless steel float - DN50 ~ 2'' ~ Ø60.30 DN50 ~ 2'' ~ Ø60.30 22kg
492RF00PN160065 - Flanged, balanced cast iron valve with stainless steel float - DN65 ~ 2''1/2 ~ Ø76.10 DN65 ~ 2''1/2 ~ Ø76.10 27kg
492RF00PN160080 - Flanged, balanced cast iron valve with stainless steel float - DN80 ~ 3'' ~ Ø88.90 DN80 ~ 3'' ~ Ø88.90 34kg
492RF00PN160100 - Flanged, balanced cast iron valve with stainless steel float - DN100 ~ 4'' ~ Ø114.30 DN100 ~ 4'' ~ Ø114.30 42kg
492RF00PN160125 - Flanged, balanced cast iron valve with stainless steel float - DN125 ~ 5'' ~ Ø139.70 DN125 ~ 5'' ~ Ø139.70 50kg
492RF00PN160150 - Flanged, balanced cast iron valve with stainless steel float - DN150 ~ 6'' ~ Ø168.30 DN150 ~ 6'' ~ Ø168.30 80kg
492RF00PN160200 - Flanged, balanced cast iron valve with stainless steel float - DN200 ~ 8'' ~ Ø219.10 DN200 ~ 8'' ~ Ø219.10 119kg
492RF00PN160250 - Flanged, balanced cast iron valve with stainless steel float - DN250 ~ 10'' ~ Ø273.10 DN250 ~ 10'' ~ Ø273.10 216kg
492RF00PN160300 - Flanged, balanced cast iron valve with stainless steel float - DN300 ~ 12'' ~ Ø323.90 DN300 ~ 12'' ~ Ø323.90 252kg
