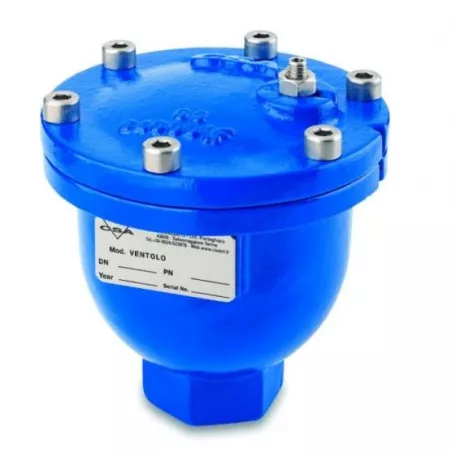

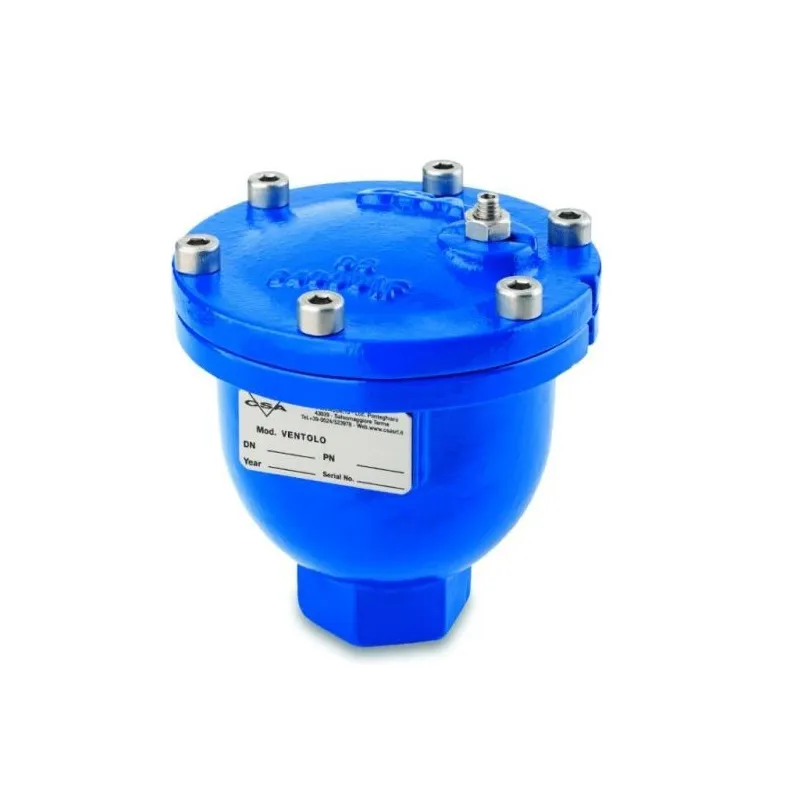

CSA Ventolo Single-Function Cast Iron Female Automatic Suction Cup

Application:

Single-function automatic cast iron female air vent for protecting potable and clear water systems.
In distribution networks, it prevents air accumulation in horizontal or low-slope pipes.
At pumping stations and near control valves and meters, it prevents improper regulation and the risk of metering errors caused by air. The float’s thrust is amplified by the lever mechanism, ensuring a tight seal even at low pressure. Its performance and durability significantly reduce maintenance requirements

  • For clear water
  • In networks: protection against air accumulation in horizontal or low-slope pipes
  • Road and river crossings
  • In stations and near control valves and meters, prevention of improper regulation and the risk of metering errors caused by air
  • Minimum and maximum permissible temperature Ts: +0°C to +60°C
  • Maximum permissible pressure Ps: 40 bar
  • Minimum permissible pressure Ps: 0.1 bar

Available in:

  • Single-function automatic air vent, female BSP DN25 - 1"
Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€392.22 Tax included

326.85 € tax excl.

Unité de vente : Pièce
3110VASF0000025
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CSA Ventolo Single-Function Cast Iron Automatic Air Vent

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Degassing function
  • Low-pressure sealing (from 0.1 bar)
  • Stainless steel float
  • Stainless steel internal components
  • High flow capacity
  • Double O-ring for a perfect seal
  • Blue RAL 5005 epoxy paint applied using FBT technology

Construction:

  • Dimensions: DN1"
  • Connection: Female BSP
  • Max. Pressure: 40 bar
  • Material: Cast iron body EN GJS 450-10

Standards:

  • ISO 9001:2015 certified manufacturer
  • Design and testing in accordance with EN 1074-4
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 1, § 2.b)
  • Cylindrical BSP female thread in accordance with ISO 7-1 Rp

Caractéristiques techniques CSA Ventolo Single-Function Cast Iron Automatic Air Vent

Data sheet

Reference
3110VASF0000025
Gamme
CSA
Corps
Fonte EN GJS-450-10
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
1"
Pression maximum
40 bar
Température minimum
0°C
Température maximum
60°C
Fluide admissible
Eau
Normes et certifications
Directive 2014/68/UE Filetage ISO 7-1 ISO 9001 : 2015
Normalisation
Directive 2014/68/UE
Poid
6.6
Unité de vente
Pièce

Download documentation

FT 31100

Fiche technique Ventouse automatique simple fonction fonte CSA

Download (418KB)
