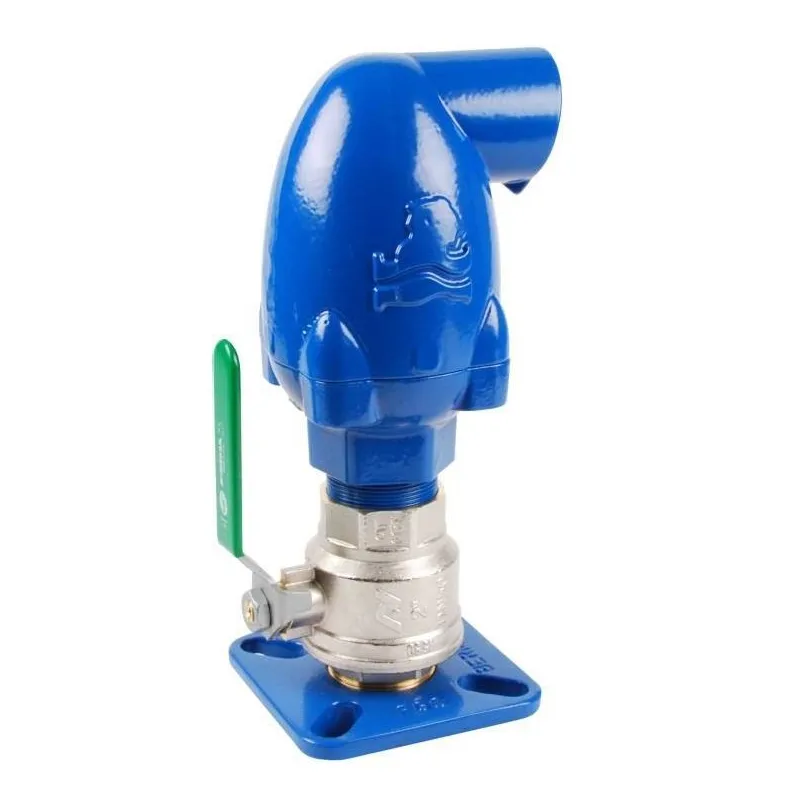

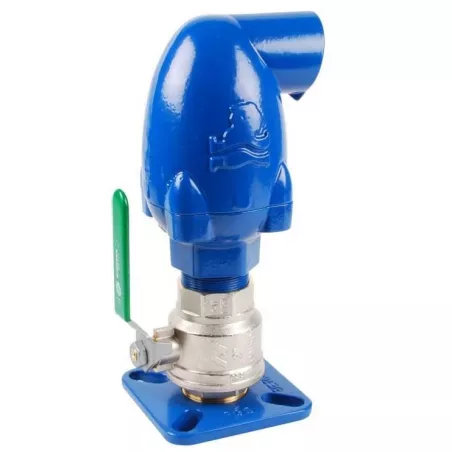

Three-way cast iron suction cup with shut-off valve and flange for clean water

Application:

Cast iron triple-function suction cup for clear water with full-bore NF brass ball valve and PN16 flange.

  • For clear water
  • In networks: protection against air accumulation at high points in pipes and the risk of vacuum
  • Road and river crossings
  • In stations and near control valves and meters, prevention of improper regulation and the risk of metering errors due to the presence of air
  • Minimum and maximum permissible temperature Ts: +0°C to +60°C
  • Maximum permissible pressure Ps: 16 bar
  • Minimum permissible pressure Ps: 0.1 bar
  • Triple-function cast iron air vent, 2" male, with NF M.F. brass ball valve and DN60/65 PN10/16 flange with slotted holes
Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFType de raccordement : Á visser BSP (pas du gaz)Type de raccordement : À brides PN10/16 (EN1092-2)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,330.56 Tax included

1108.8 € tax excl.

Unité de vente : Pièce
31132VTFPN16050
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Three-way cast iron suction cup with shut-off valve and flange

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

When installed in piping systems, the air vent prevents air accumulation at the highest points of the pipes and eliminates the risk of vacuum formation.
When installed at pump stations and near control valves and meters, it prevents improper regulation and the risk of metering errors caused by the presence of air.
Straight body with large automatic orifice. Aerodynamic
kinetic protection (prevents premature closure without disrupting air inflow or outflow).
Valve certified by the CSTB and manufactured in accordance with NF079 certification standards.

Features:

  • High-flow air outlet
  • Pressurized air vent
  • High-flow air inlet
  • Perfect dynamic sealing even at low pressure (from 0.1 bar)
  • Straight body with large automatic orifice
  • Aerodynamic kinetic protection (prevents premature closure without disrupting air intake or exhaust)
  • Compact and reliable construction
  • Side outlet
  • Corrosion-resistant materials
  • Product supplied with NF-compliant brass ball valve and EN GJS-400-15 cast iron flange with slotted holes
  • Epoxy paint, RAL 5005, 250μm thick

Construction:

  • Dimensions: DN2", DN60-65 flange
  • Connection: PN10/16 flange
  • Max. Pressure: 16 bar
  • Material: Body: Cast iron EN GJS-450-10

Standards:

  • Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
  • Design and testing in accordance with EN 1074-4 for the air vent
  • Manufactured in accordance with NF079 certification standards for the brass ball valve
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 1, § 2.b)
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1 for the NF brass ball valve
  • BSP tapered female thread in accordance with ISO 7-1 Rc for the DN60-65 flange
  • Conical BSP male thread in accordance with ISO 7-1 R for the suction cup
  • Flange in accordance with EN 1092-2 PN10/16
  • A.C.S. Sanitary Compliance Certificate No. 13 ACC LY 136 for the NF brass ball valve
  • A.C.S. Sanitary Compliance Certificate No. 19 ACC LY 164 for the air vent
  • American NSF/ANSI STANDARD 61 drinking water certification for the air vent

Caractéristiques techniques Three-way cast iron suction cup with shut-off valve and flange

Data sheet

Reference
31132VTFPN16050
Matière
Corps Fonte EN GJS-450-10
Type de raccordement
À brides PN10/16 (EN1092-2) Á visser BSP (pas du gaz)
Pression maximum
16 bar
Température minimum
0°C
Température maximum
60°C
Fluide admissible
Eau
Normes et certifications
Certification ACS Directive 2014/68/UE Filetage ISO 7-1 ISO 9001 : 2015 NF
Normalisation
Directive 2014/68/UE
Unité de vente
Pièce

Download documentation

FT 31132

Fiche technique Ventouse triple fonction fonte avec robinet d'arret et bride
