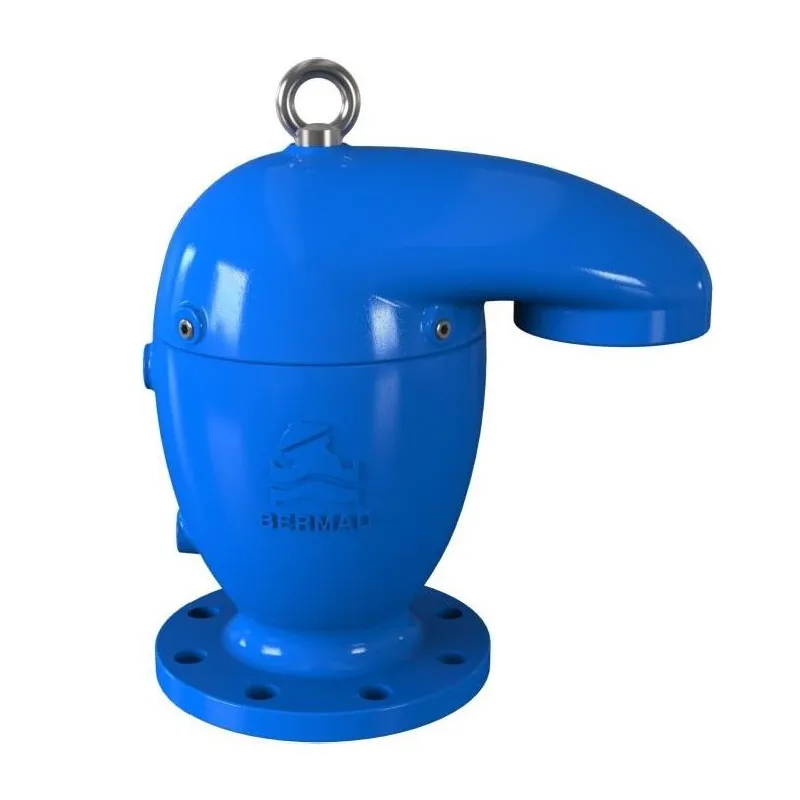

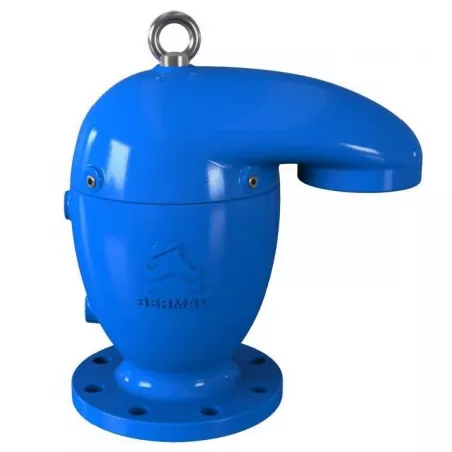

Three-way cast iron suction cup without a flanged shut-off valve

When installed in networks, the air vent prevents air accumulation at the highest points of the pipes and protects against vacuum formation.
For crossings over roads and rivers, and at changes in slope, it provides protection against overpressure and water hammer (upon request) at points where the water column breaks
. At pumping stations, it protects pumps, facilitates purging, and provides protection against overpressure and vacuum (upon request)
Straight-through body with inlet and outlet of identical diameters
Aerodynamic kinetic protection (prevents premature closure without disrupting air inlet or outlet).

Features:

• High-flow air outlet
• Pressurized air vent
• High-flow air inlet
• Perfect dynamic sealing even at low pressure (from 0.1 bar)
• Straight-through body with inlet and outlet of identical diameters
• Aerodynamic kinetic protection (prevents premature closure without disrupting air inlet or outlet flow)
• Automatic two-stage closure of the orifice: minimizes water spray during air purging
• 2 side maintenance ports for pressure measurement or connection to a purge line
• Compact and reliable construction
• Downward outlet
• Corrosion protection thanks to epoxy coating
• Epoxy paint, RAL 5005, 250μm thick

Construction:

• Dimensions: DN80
• Connection: PN10/16 flange
• Max. pressure: 16 bar
• Material: Body: Cast iron EN GJS-450-10

Standards:

• Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
• Design and testing in accordance with EN 1074-4
• DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 1, § 2.b)
• Flange in accordance with standard EN 1092-2 PN10/16
• A.C.S. Sanitary Compliance Certificate No. 19 ACC LY 131
• British WRAS drinking water certification No. 1312056
• American drinking water certification NSF/ANSI STANDARD 61
• German DVGW drinking water certification No. DW-6215CO0224
