F1/2" crimp-on wall outlet 10 - 12

Raccords à sertir type radial pour tube PER et PB
Sortie de cloison à sertir
search
  • Sortie de cloison à sertir

Photo non contractuelle

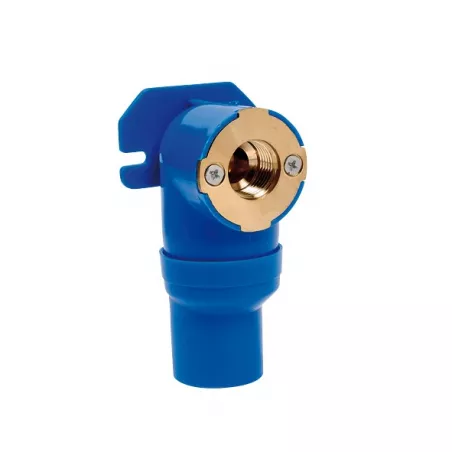

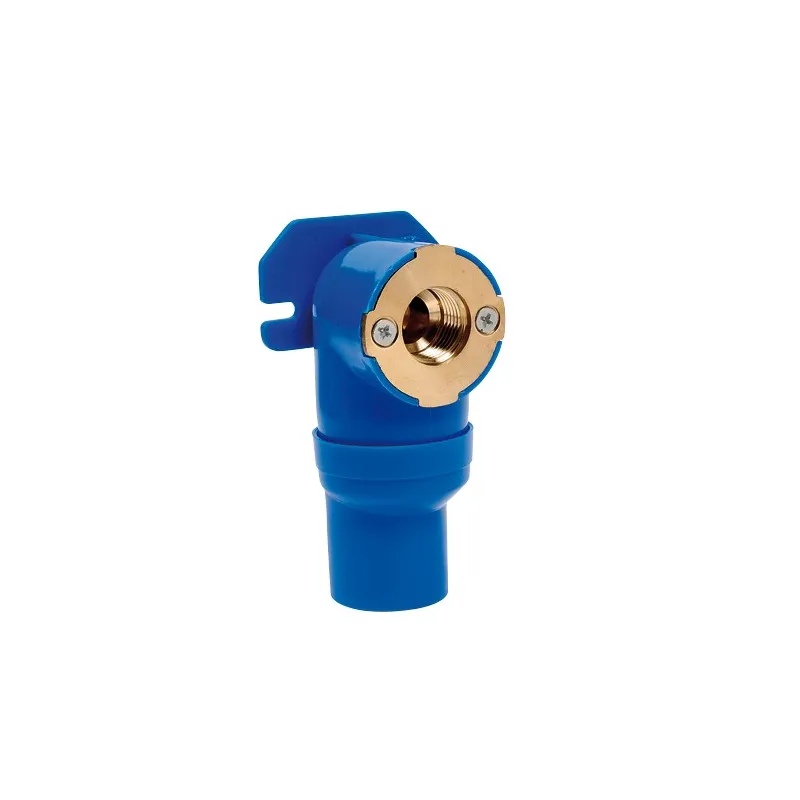

Sertigliss Female 1/2" Crimp-On Wall Outlet

Description:

Radial-type brass press fitting for synthetic PEX or PB pipes. Dimensions: 12x1.1 – 16x1.5 – 20x1.9 and 25x2.3 (S=5 series pipes according to ISO 4065). Inserted into a plastic housing. The outlet is 1/2" gas thread (BSP) in all cases.

Standards, certifications:

Technical Approval 14/15-2135

Plus de détails
Normes et certifications : Avis Technique 14/15-2135Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
10 - 12
Are you an individual?
Are you a professional?

Log in to find out your discount.

€6.66

6.66 € tax excl.

Unité de vente : Pièce
RSRSCL000000012
Diameter Ø: 10 - 12
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information F1/2" crimp-on wall outlet

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 6 bar - Domestic hot water supply (and domestic cold water supply at 20 °C / 10 bar)
  • Class 4: 6 bar - Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar - High-temperature radiators,
  • "Chilled water" class: 10 bar

Technical specifications:

  • The various components of the fittings are made of turned or die-cast brass, designated CW614 and CW617, respectively.
  • The crimp sleeve is made of stainless steel.

Installation:

The assembly process involves compressing the plastic tube between a fluted insert and a stainless steel ring through mechanical deformation using a crimping tool and a set of jaws. Flaring
and crimping operations must only be performed using specific tools. The PINPFL000000000 or PINK20000000000 electro-hydraulic crimping machines and their accessories are recommended for performing the assembly.

Caractéristiques techniques F1/2" crimp-on wall outlet

Data sheet

Reference
RSRSCL000000012
Système
PER/PB
Matière
laiton + coque plastique
Forme
Applique
Type de raccordement
Sertissage radial - Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage - Eau glacée et climatisation - Eau sanitaire et potable
Normes et certifications
Avis Technique 14/15-2135
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610018864

Download documentation

FT42

Fiche technique Sortie de cloison à sertir FT42-V2

Download (395.66KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit F1/2" crimp-on wall outlet

Voici la liste des références et poids correspondants aux options séléctionnées.
RSRSCL000000012 - F1/2" crimp-on wall outlet - 10 - 12
Diameter Ø 10 - 12
Packed weight 0,1764kg
6.66 € tax excl.
Consulter
RSRSCL000000016 - F1/2" crimp-on wall outlet - 13 - 16
Diameter Ø 13 - 16
Packed weight 0,1764kg
6.66 € tax excl.
Consulter
RSRSCL000000020 - F1/2" crimp-on wall outlet - 16 x 20
Diameter Ø 16 x 20
Packed weight 0,16065kg
6.47 € tax excl.
Consulter
Référence - Désignation Diameter Ø Packed weight Prix
RSRSCL000000012 - F1/2" crimp-on wall outlet - 10 - 12 10 - 12 0,1764kg 6.66 € tax excl.
RSRSCL000000016 - F1/2" crimp-on wall outlet - 13 - 16 13 - 16 0,1764kg 6.66 € tax excl.
